15.2 Typical Configuration with MIC-ALM-WAS-24

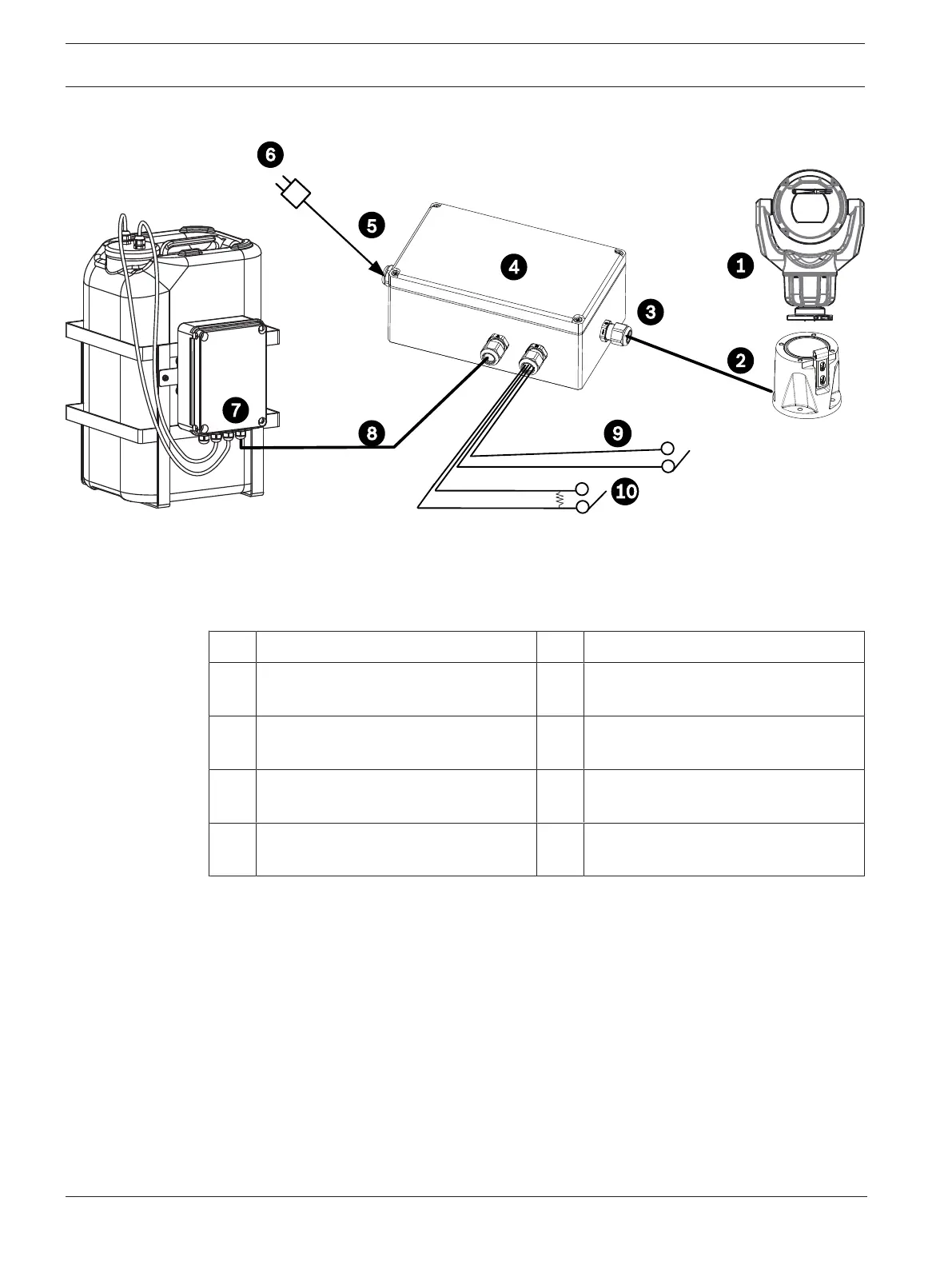

Figure15.2: System Configuration with an MIC Alarm-Washer Box (MIC-ALM-WAS-24)
1 MIC camera 2 MIC Hinged DCA (MIC-DCA-Hx)
3 RS-485 cable, 3-conductor (user-
supplied)
4 Enclosure of MIC-ALM-WAS-24
5 Interface cable for 24 VAC (for MIC-
ALM-WAS-24) (user-supplied)
6 24 VAC Power pack, 1A, 50/60 Hz
(user-supplied)
7 Washer pump accessory (user-
supplied)
8 Interface cable for washer control
(user-supplied)
9 Interface cables for alarm inputs and
outputs (user-supplied)
10 Switch (monitored, normally open) for
supervised alarm (user-supplied)
