4 Identification and type code
4.1 Identification
MSM motors have an individual type plate showing the device designation
and providing technical information. The two-part type plate is attached at the
side of the encoder housing.
The type plate is provided for
● Identification of the motor
● Procurement of spare parts in case of a fault
● Service information.
(A) Type
(B) Material number
(C) Date of manufacture
(D) Serial number
(E) Hardware index
(F) Rated voltage
(G) Rated current
(H) Rated power
(I) Frequency
(J) Serial number (Rexroth)
(K) Speed
(L) Torque
(M) Insulation class
(N) Degree of protection
(O) Barcode
(P) Country of manufacture
(Q) UL file number

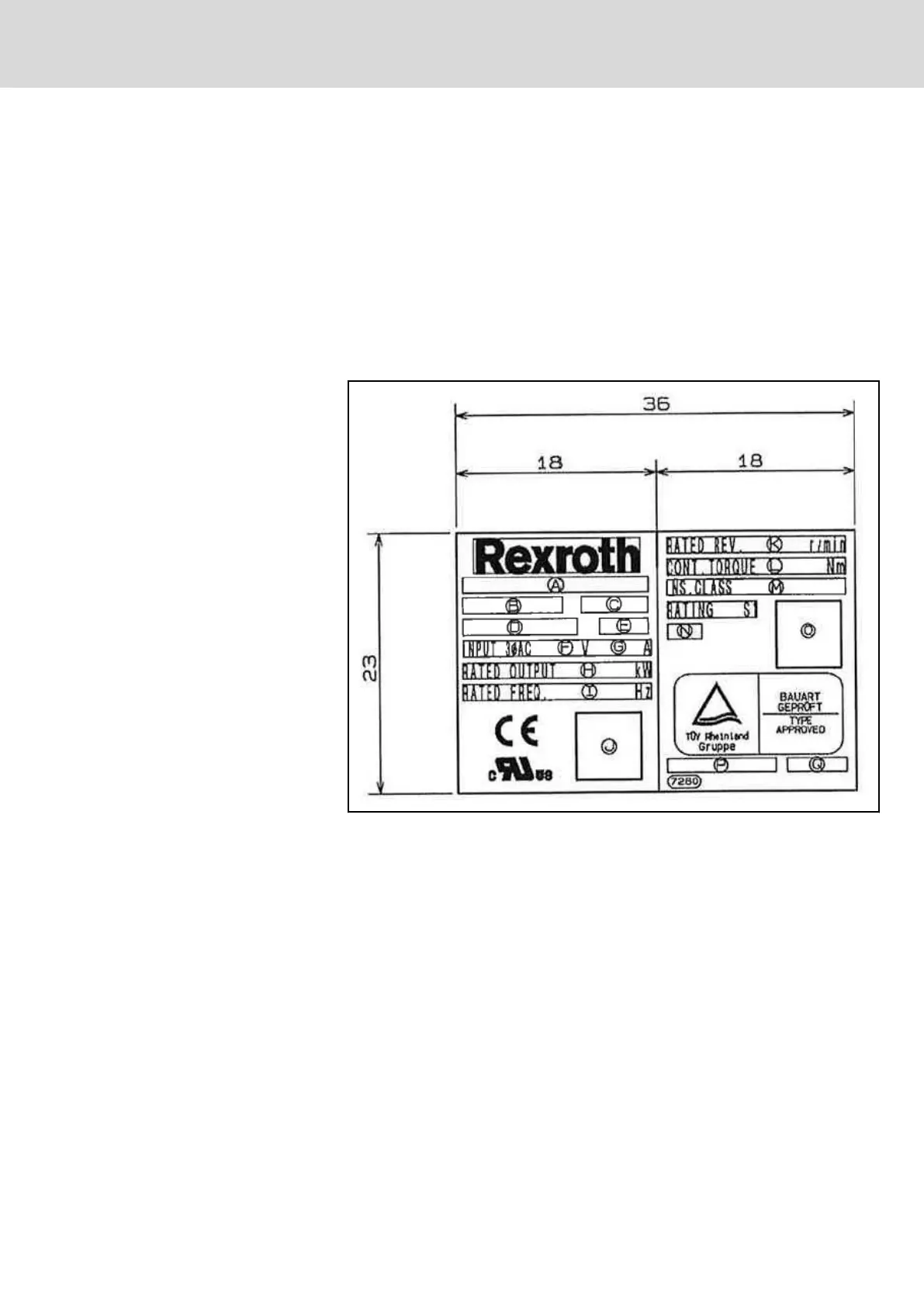

Fig. 4-1: Type plate MSM
DOK-MOTOR*-MSM********-DA05-EN-P Bosch Rexroth AG 15/61
Synchronous Servomotors MSM
Identification and type code
