5.2.2 MSM019 Specifications
MSM019...M0-C...
Motor / size A B C D E F G H J K
MSM019A-...-..-M0-CH0 □38 72 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 20.8
MSM019A-...-..-M0-CH1 □38 102 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 20.8
MSM019B-...-..-M0-CH0 □38 92 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 40.8
MSM019B-...-..-M0-CH1 □38 122 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 40.8
Motor / size L M N T U
MSM019A-...-..-M0-CH0 27 3 6 200 230
MSM019A-...-..-M0-CH1 27 3 6 200 230
MSM019B-...-..-M0-CH0 27 3 6 200 230
MSM019B-...-..-M0-CH1 27 3 6 200 230

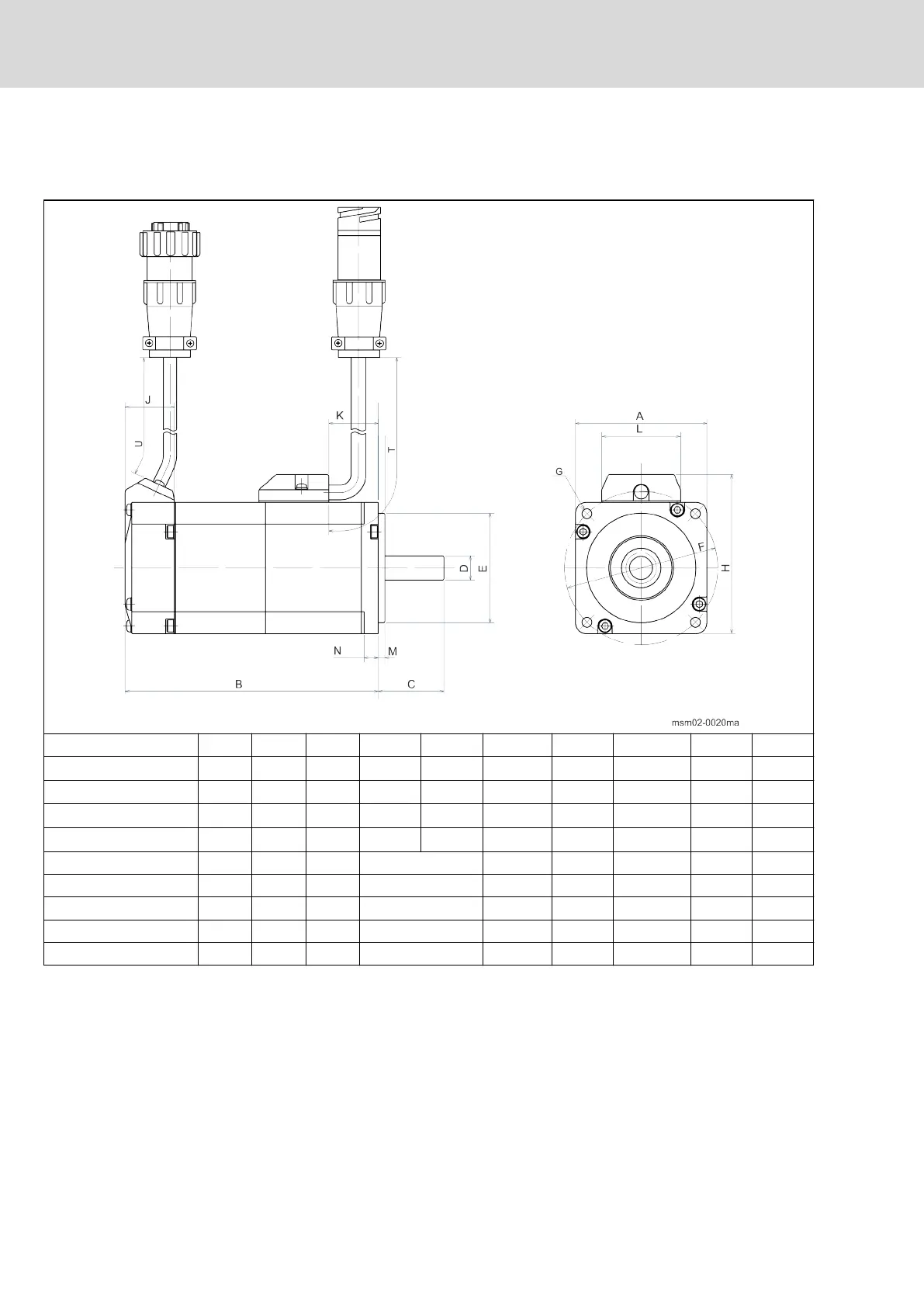

Tab. 5-4: Dimensions MSM019
