9.3 Battery box SUP-E02-MSM-BATTERYBOX-xxxx
Use
When operating MSM motors with absolute value encoder (M5), the battery
box serves for buffering the encoder data when disconnecting the voltage.
Scope of delivery
Type L
SUP-E02-MSM-BATTERYBOX-NNNN 250 mm
SUP-E02-MSM-BATTERYBOX-L010 1000 mm
SUP-E02-MSM-BATTERYBOX-L030 3000 mm
Tab. 9-2: Battery box measures
Battery box complete with
● Battery: Type PRM1-03V6-2600C-D2-LITH-ZNR-50, 3.6 V; 2600 mAh,
Lithium; Lifetime: up to 10 years, dependet from stress and environmen‐
tal temperature
When the "SUP-E02-MSM-BATTERYBOX-xxxx" battery box is delivered, it is
ready to use.
Recommendation Battery change after 5 years
Order number spare battery R911369925 SUP-E02-MSM-BATTERY
Components:
1 Housing screw (M
A
0.7 Nm)
2 Housing lid
3 Battery
4 Housing
5 Battery connector

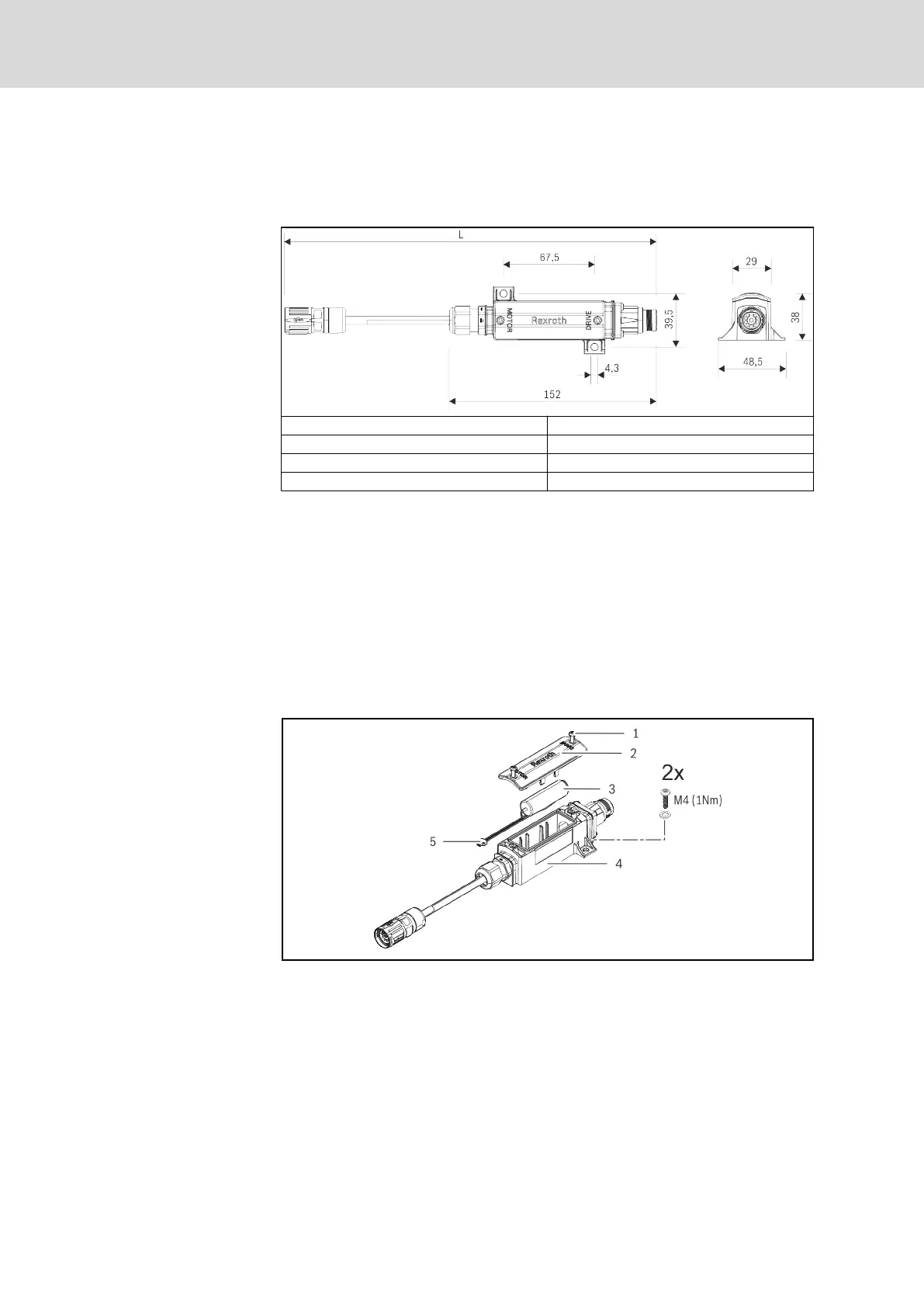

Fig. 9-6: Components of a battery box
For fastening the battery box, use 2xM4 mounting screws mit washer and
screw locking. The fastening screws are not included in the scope of delivery
and must be customized onto the required mounting situation. Tightening tor‐
que of fastening screws 1 Nm.
