Bosch MSM019A - MSM031 Specifications

5.3.2 MSM031 Specifications
MSM031...M0-C...
Motor / size A B C D E F G H J K
MSM031B-...-..-M0-CH0 □60 79 30
ø11
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 22.5
MSM031B-...-..-M0-CH1 □60 115.5 30
ø11
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 22.5
MSM031C-...-..-M0-CH0 □60 98.5 30
ø14
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 42
MSM031C-...-..-M0-CH1 □60 135 30
ø14
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 42
Motor / size L M N T U
MSM031B-...-..-M0-CH0 36 3 6.5 200 220
MSM031B-...-..-M0-CH1 36 3 6.5 200 220
MSM031C-...-..-M0-CH0 36 3 6.5 200 220
MSM031C-...-..-M0-CH1 36 3 6.5 200 220

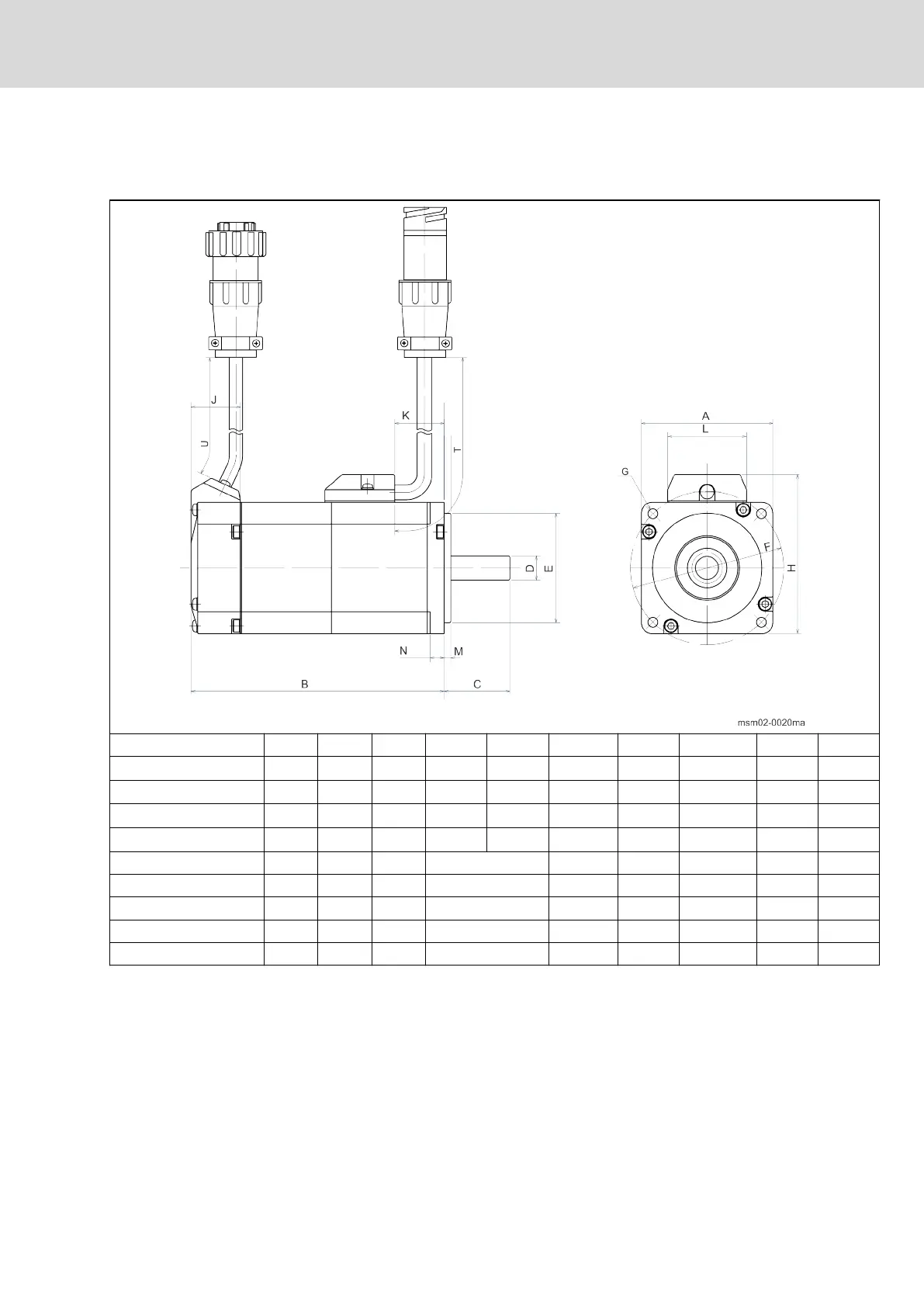

Tab. 5-8: Dimensions MSM031
