MSM031...M5-M...
Motor / size A B C D E F G H J K
MSM031B-...-..-M5-M.0 □60 79 30
ø11
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 22.5
MSM031B-...-..-M5-M.1 □60 115.5 30
ø11
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 22.5
MSM031C-...-..-M5-M.0 □60 98.5 30
ø14
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 42
MSM031C-...-..-M5-M.1 □60 135 30
ø14
h6
ø50
h7
ø70±0.20 ø4.5 73 22.5 42
Motor / size L M N P Q R S T U
MSM031B-...-..-M5-M.0 36 3 6.5 4h9 (groove p9) 20 12.5 M4 (8 deep) 200 220
MSM031B-...-..-M5-M.1 36 3 6.5 4h9 (groove p9) 20 12.5 M4 (8 deep) 200 220
MSM031C-...-..-M5-M.0 36 3 6.5 5h9 (groove p9) 25 16
M5 (10
deep)
200 220
MSM031C-...-..-M5-M.1 36 3 6.5 5h9 (groove p9) 25 16
M5 (10
deep)
200 220

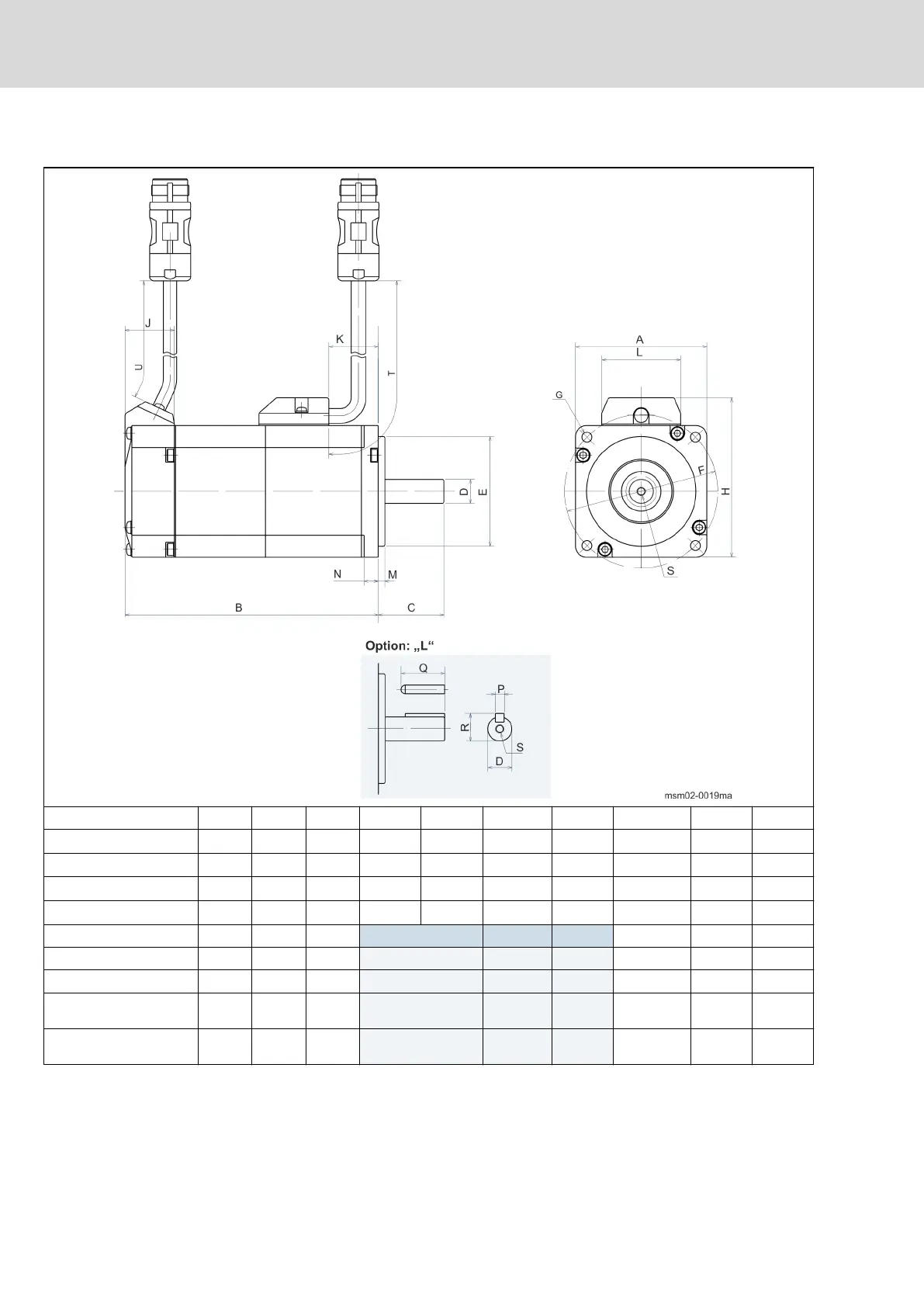

Tab. 5-9: Dimensions MSM031
