9.2 Battery box SUP-E01-MSM-BATTERYBOX
Use
The battery box "SUP-E01-MSM-BATTERYBOX" is an set of accessories for
operation of MSM motors with absolute encoder (M0) and is used for buffer‐
ing of the encoder data in case of power shut off.
Scope of delivery

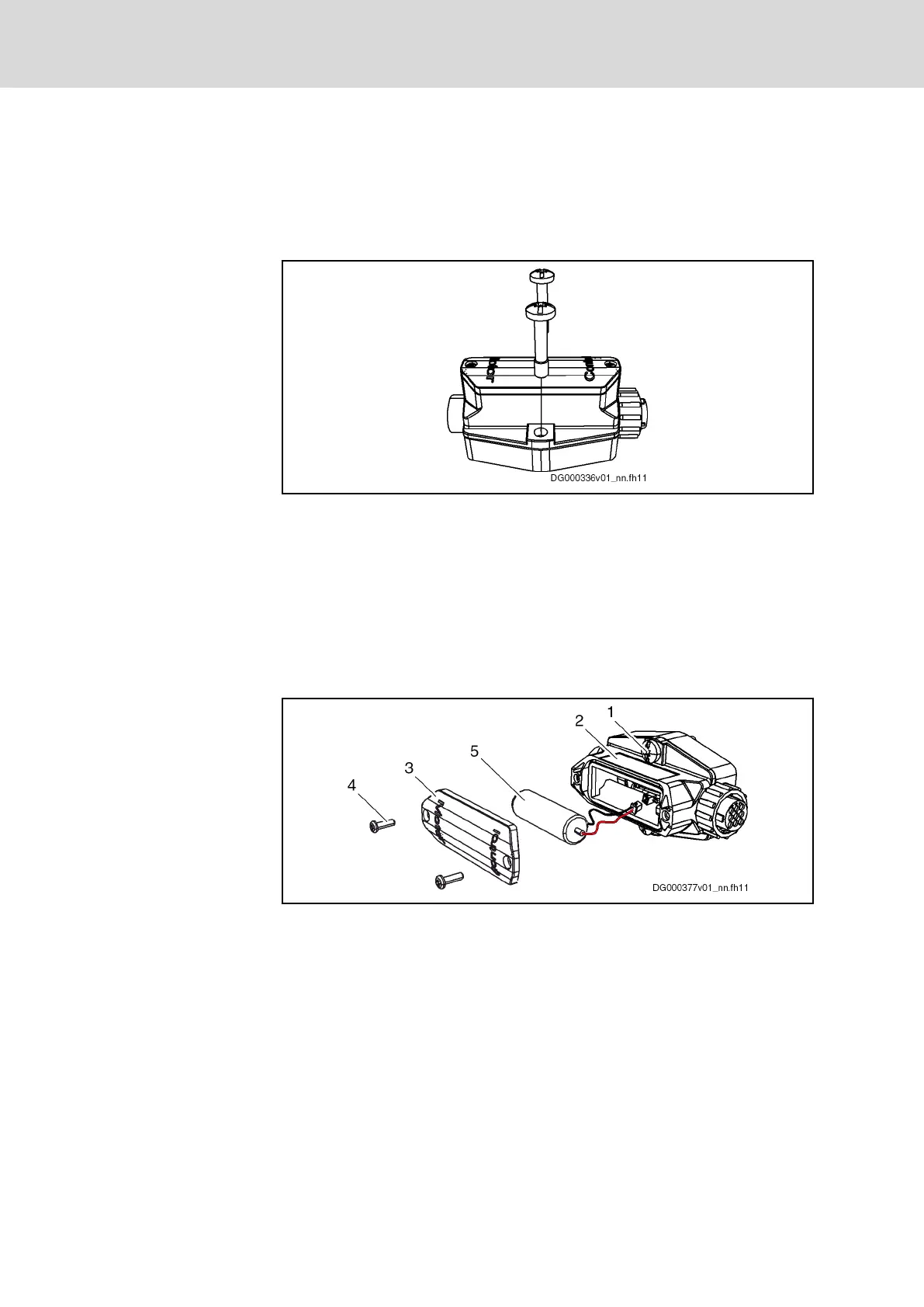

Fig. 9-1: Battery box
Battery box complete with
● Battery: Type: ER6C, 3.6 V; 1800 mA, lithium; lifetime: up to 10 years,
depending on use and ambient temperature
● Assembly screws: M6×30; screw head: Torx and slot
The battery box "SUP-E01-MSM-BATTERYBOX" is delivered in ready-for-
use state with battery.
Components:
1 Assembly screw
2 Housing
3 Housing lid
4 Housing lid screw (self-shaping screw 30×10; tightening torque
0.8 Nm)
5 Battery
Fig. 9-2: Components of battery box
Bosch Rexroth AG DOK-MOTOR*-MSM********-DA05-EN-P46/61
Synchronous Servomotors MSM
Assembly accessory
