MSM019...M5-M...
Motor / size A B C D E F G H J K
MSM019A-...-..-M5-M.0 □38 72 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 17.3
MSM019A-...-..-M5-M.1 □38 102 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 17.3
MSM019B-...-..-M5-M.0 □38 92 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 37.4
MSM019B-...-..-M5-M.1 □38 122 25
ø8
h6
ø30
h7
ø45±0.20 ø3.4 51 24 37.4
Motor / size L M N P Q R S T U
MSM019A-...-..-M5-M.0 27 3 6 3h9 (groove p9) 14 9.2 M3 (6 deep) 200 230
MSM019A-...-..-M5-M.1 27 3 6 3h9 (groove p9) 14 9.2 M3 (6 deep) 200 230
MSM019B-...-..-M5-M.0 27 3 6 3h9 (groove p9) 14 9.2 M3 (6 deep) 200 230
MSM019B-...-..-M5-M.1 27 3 6 3h9 (groove p9) 14 9.2 M3 (6 deep) 200 230

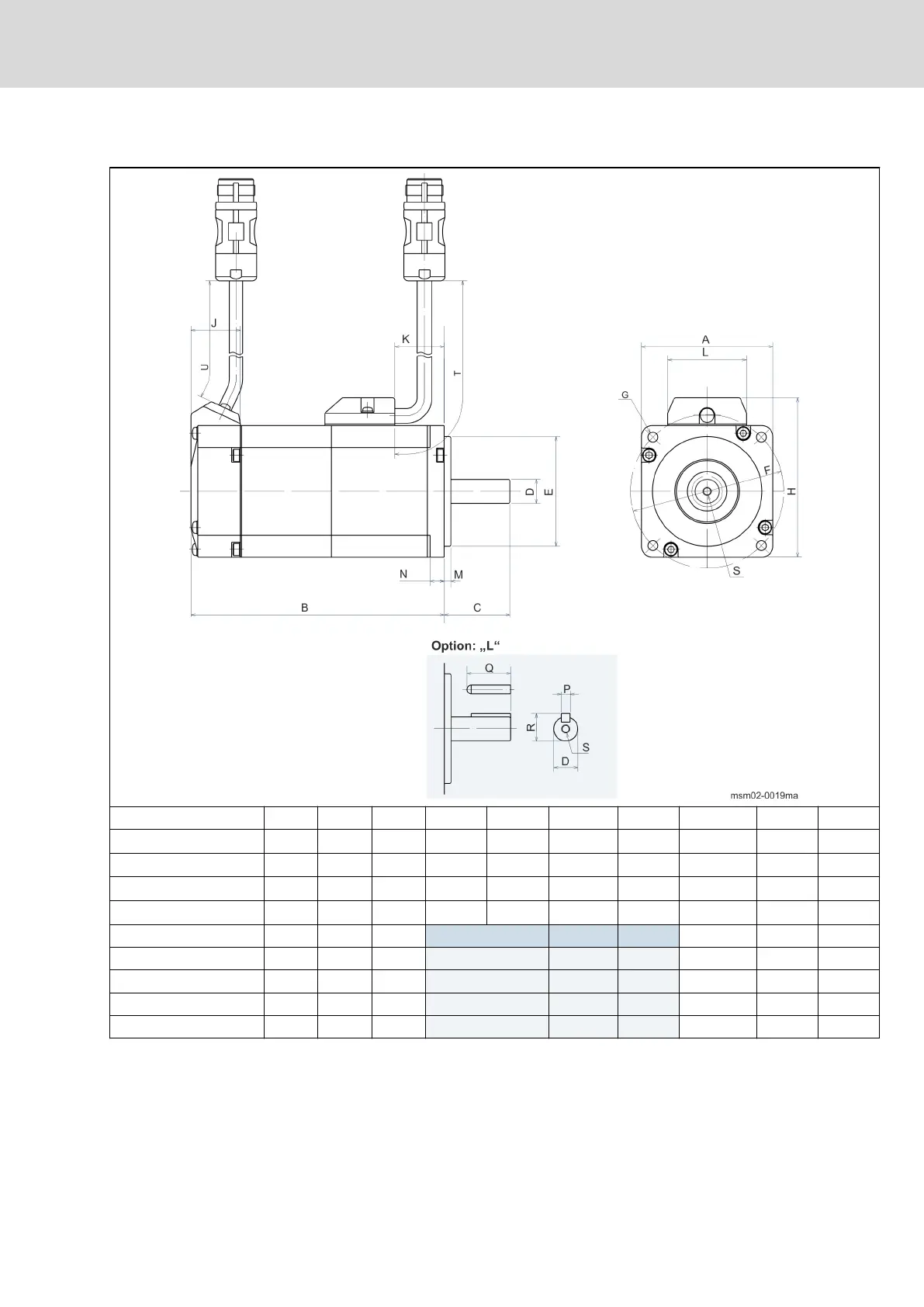

Tab. 5-5: Dimensions MSM019
DOK-MOTOR*-MSM********-DA05-EN-P Bosch Rexroth AG 25/61
Synchronous Servomotors MSM
Technical data
