Designation Symbol Unit Holding brake 1 (MSM031)
Holding torque
M
4
Nm 1.27
Rated voltage
1)
U
N
V 24 ±1.2
Rated current
I
N
A 0.36
Maximum connection time
t
1
ms 15
Maximum disconnection time
t
2
ms 50
Moment of inertia of the holding brake
J
br
kg*m
2
0.0000018
Switching cycles within standstill 2 Mio
Latest amendment: 2019-02-14
Tab. 5-7: MSM031 Holding brakes - Technical data (optional)
*) maximum permitted nominal line voltage 3x 230 V

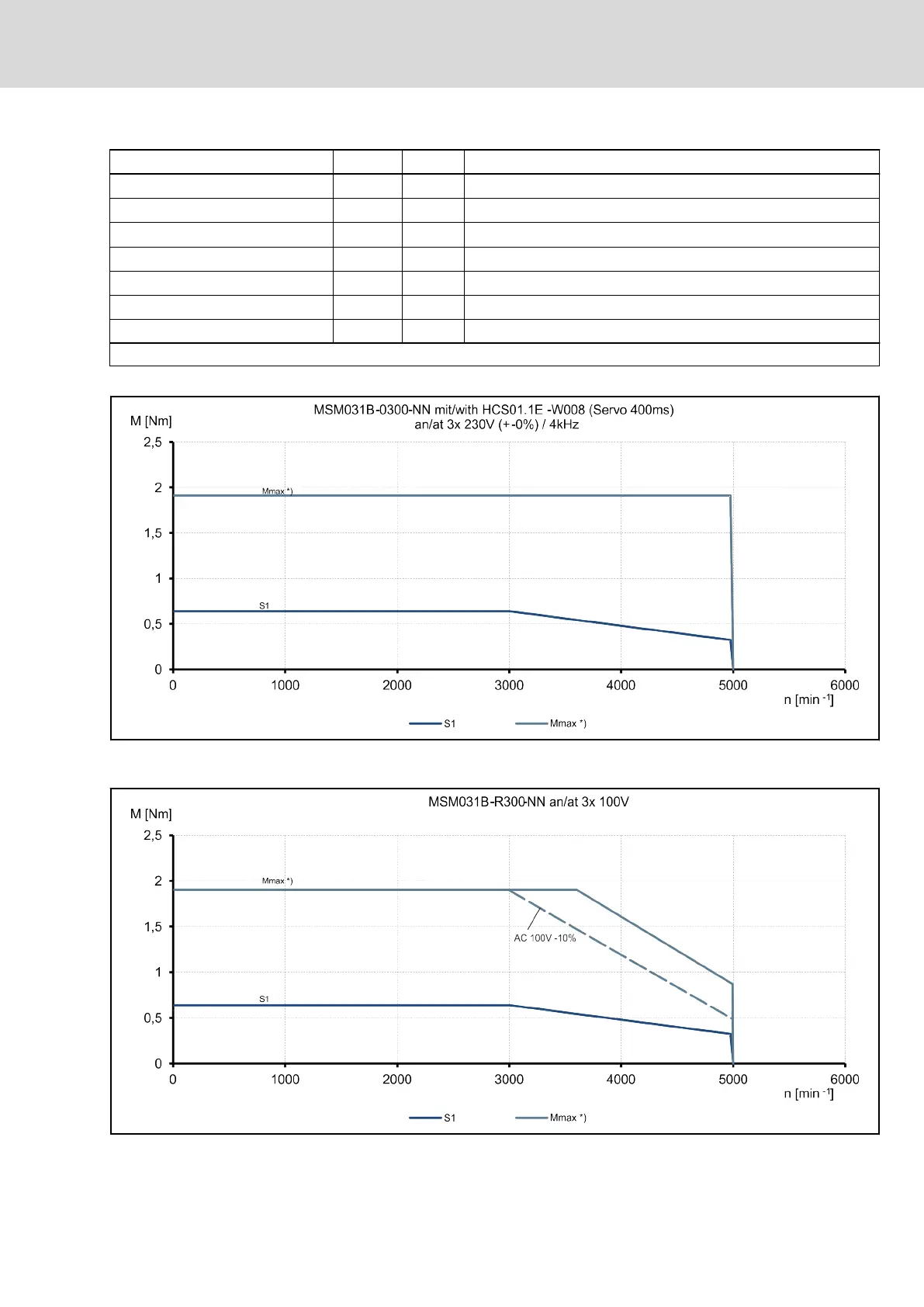

Fig. 5-5: Speed-torque characteristic curves
*) maximum permitted nominal line voltage 3x 100V
Fig. 5-6: Speed-torque characteristic curves
