Designation Symbol Unit Holding brake 1 (MSM041)
Holding torque
M
4
Nm 2.45
Rated voltage
1)
U
N
V 24 ±1.2
Rated current
I
N
A 0.42
Maximum connection time
t
1
ms 20
Maximum disconnection time
t
2
ms 70
Moment of inertia of the holding brake
J
br
kg*m
2
0.0000075
Switching cycles within standstill 2 Mio
Latest amendment: 2019-02-14
Tab. 5-11: MSM041 Holding brakes - Technical data (optional)
*) maximum permitted nominal line voltage 3x 230V

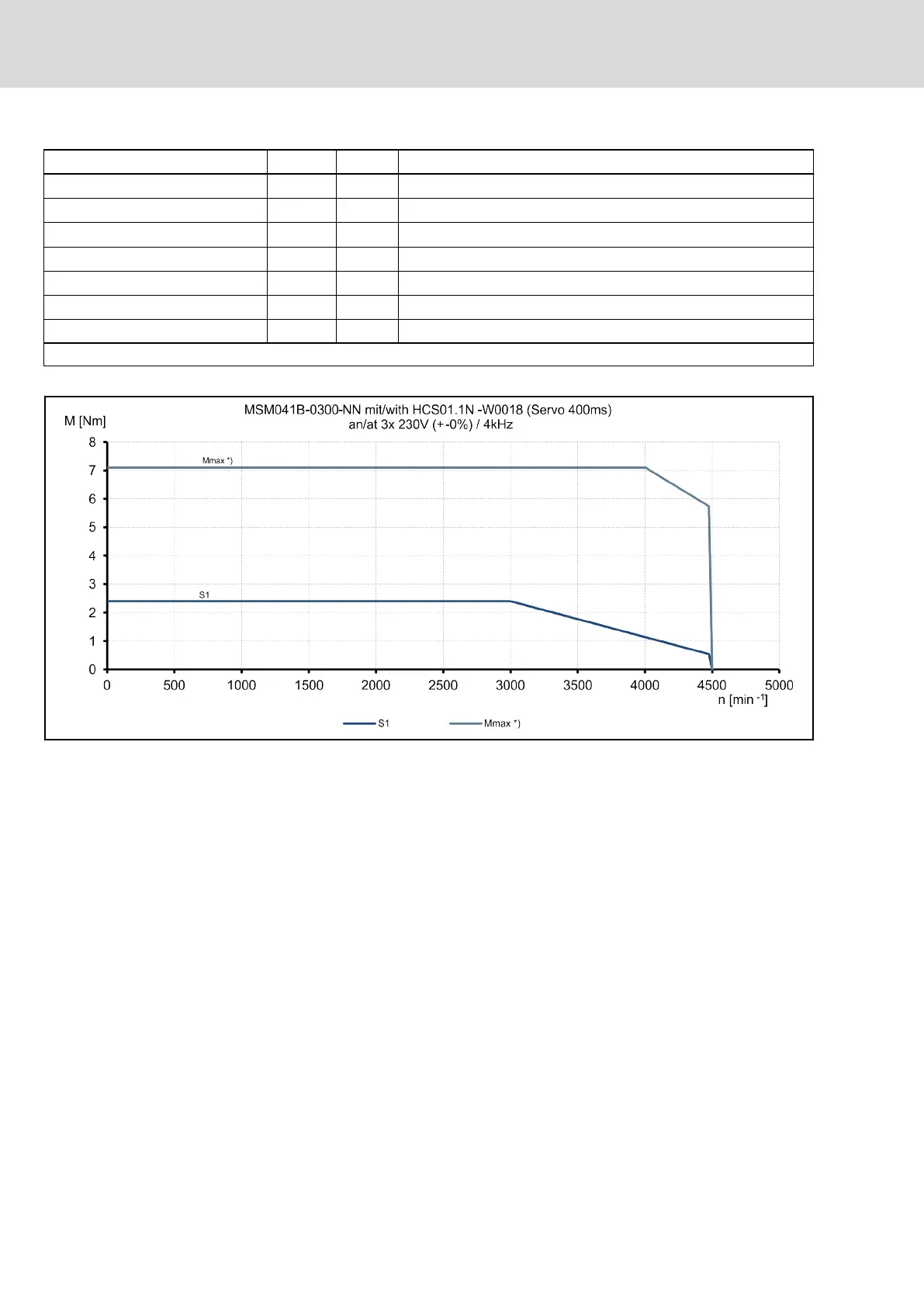

Fig. 5-9: Speed-torque characteristic curves
