Bosch MSM019A - Page 36

MSM041...M5-M...
Motor / size A B C D E F G H J K
MSM041B-...-..-M5-M.0 □80 112 35
ø19
h6
ø70
h7
ø90±0.20 ø6 93 25.5 52.2
MSM041B-...-..-M5-M.1 □80 149 35
ø19
h6
ø70
h7
ø90±0.20 ø6 93 25.5 52.2
Motor / size L M N P Q R S T U
MSM041B-...-..-M5-M.0 36 3 8 6h9 (groove p9) 25 21.5
M5 (10
deep)
200 220
MSM041B-...-..-M5-M.1 36 3 8 6h9 (groove p9) 25 21.5
M5 (10
deep)
200 220

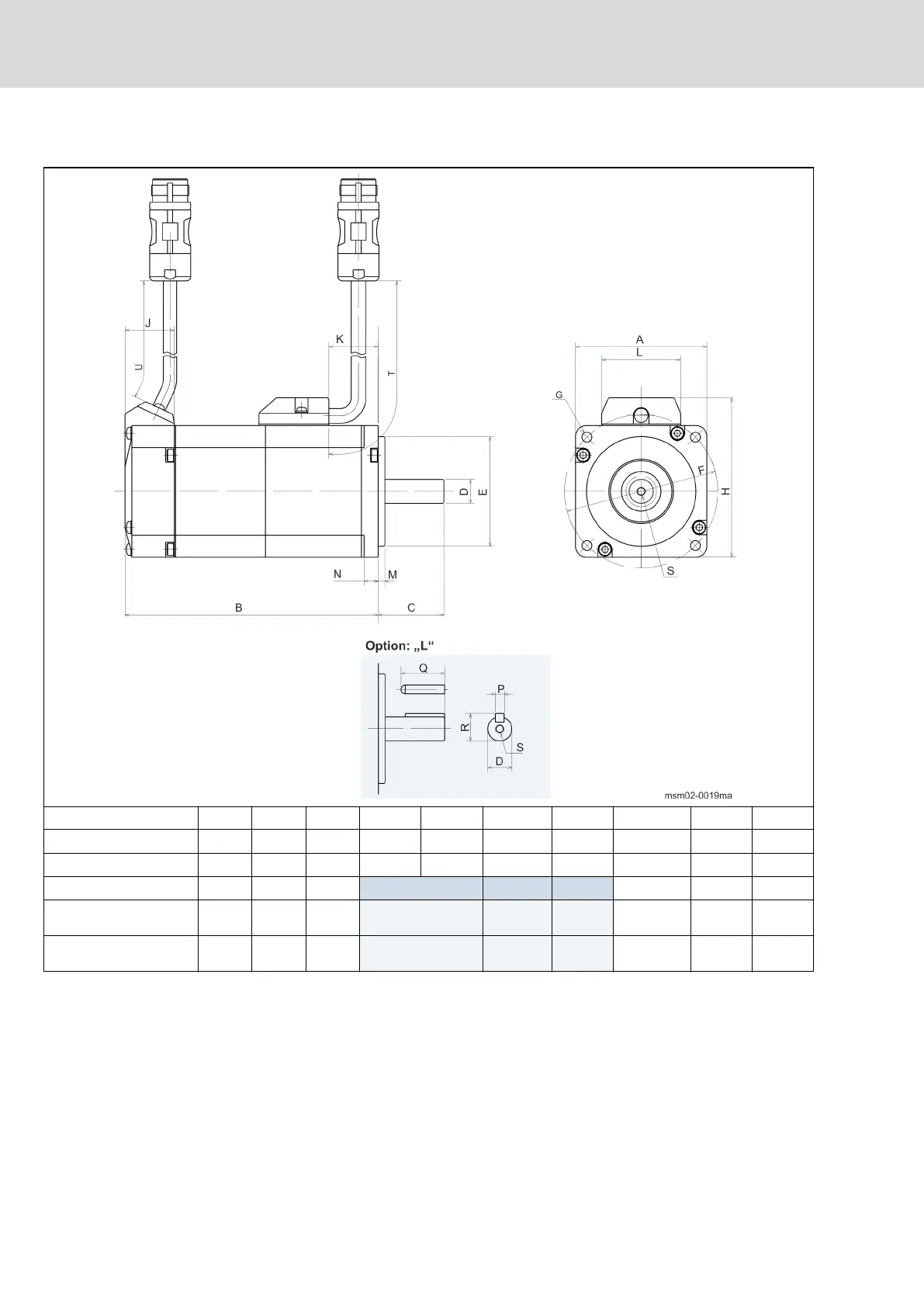

Tab. 5-13: Dimensions MSM041
Bosch Rexroth AG DOK-MOTOR*-MSM********-DA05-EN-P34/61
Synchronous Servomotors MSM
Technical data
