Connection overview
1) Optional extension cable
2) In the case of Singleturn application, connect RKG033 directly
with the cable connector INS0758 of the MSM motor.
ā Shield connection via housing

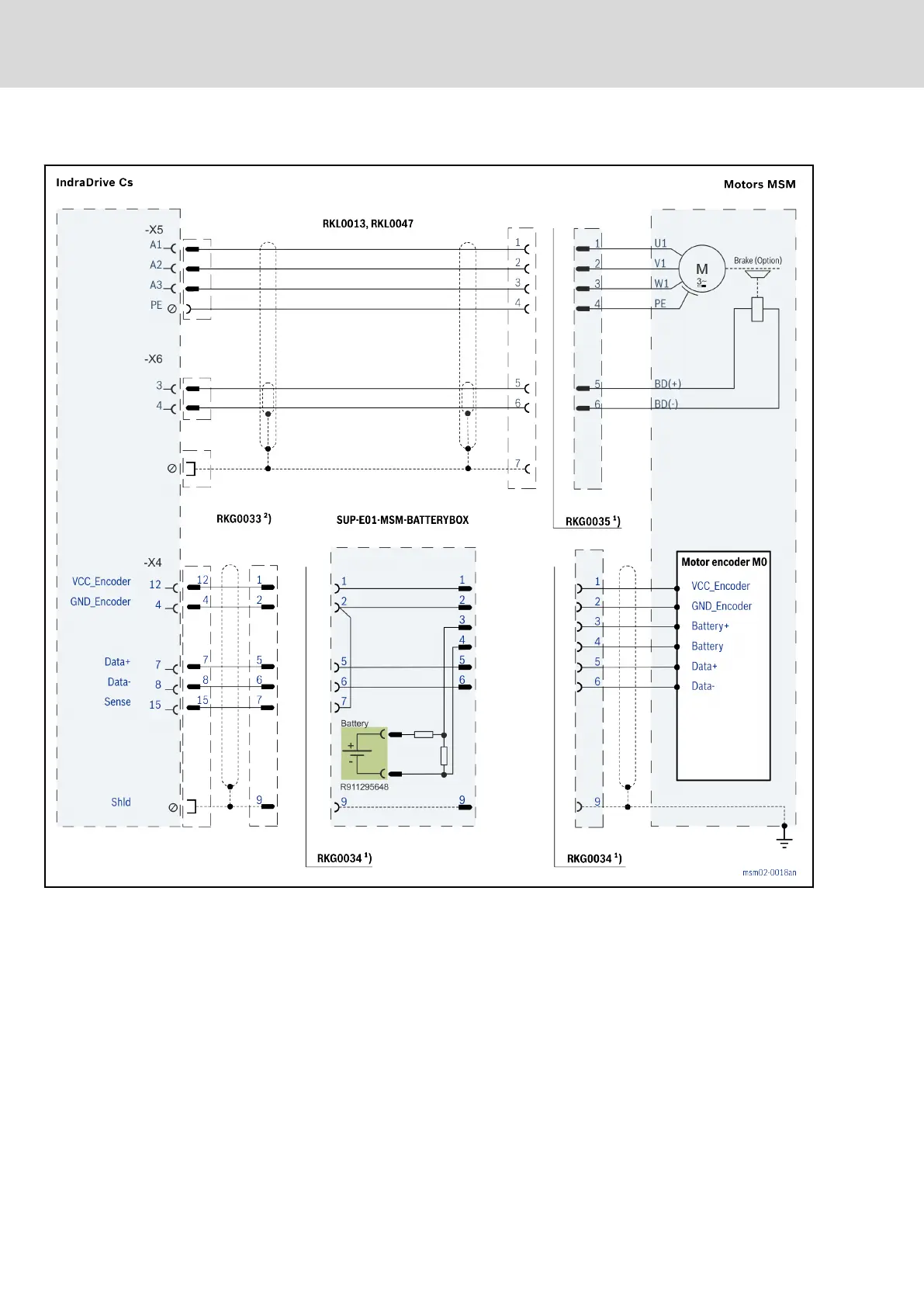

Fig. 7-2: MSM connection plan with encoder M0 and battery box.
Mount the battery box near the motor. The maximum cable length between
battery box and MSM motor (RKG0034) is 2.0 m.
