Connection overview
1 Optional extension cable
2 In the case of Singleturn use, connect the cable directly with
the motor
⊐ Shield connection over housing

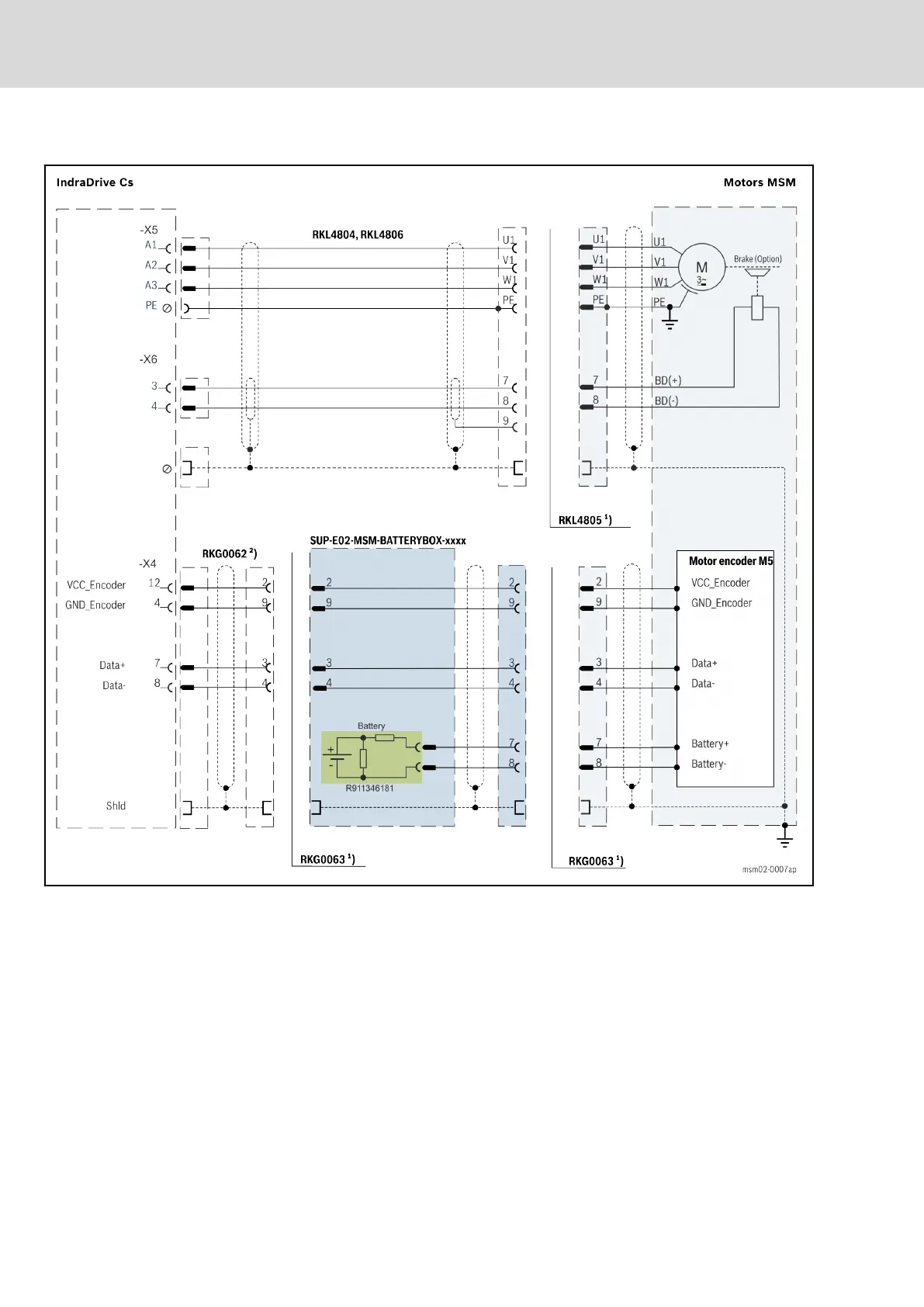

Fig. 7-5: MSM connection plan
Bosch Rexroth AG DOK-MOTOR*-MSM********-DA05-EN-P40/61
Synchronous Servomotors MSM
Connection technique
