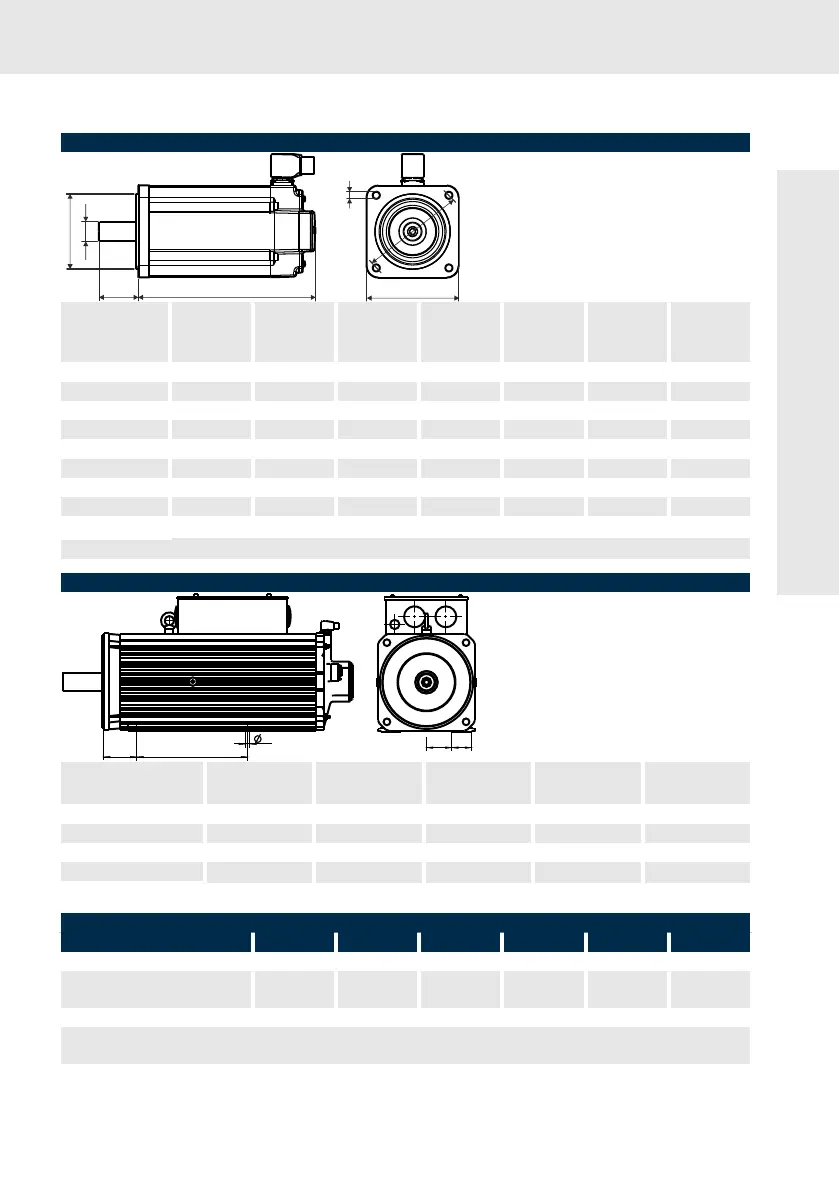

5.2.2 Mechanical interfaces
Dimensions (flange)
ØG
ØC
A
B
D
E
ØF
Type A
☐ Flange
[mm]
B
Length [mm]
C
Shaft Ø [mm]
D
Shaft length
[mm]
E
Centering
collar [mm]
F
Hole circle
[mm]
G
Mounting
holes [mm]
MS2N03-A 58 1) 9 20 40 63 4.5
MS2N03-B 58 1) 9 20 40 63 4.5
MS2N03-D 58 1) 11 23 40 63 4.5
MS2N04 82 1) 14 30 50 95 6.6
MS2N05 98 1) 19 40 95 115 9
MS2N06 116 1) 24 50 95 130 9
MS2N07 140 1) 32 58 130 165 11
MS2N10 196 1) 38 80 180 215 14
MS2N13 260 1) 48 80 255 300 18
1)
Additional documentation see specifications (DOK-MOTOR*-MS2N*******-PRxx-xx-P, Project planning manual)
Dimensions (foot)
A
L5
B
C D
Type A
[mm]
L5
Length [mm]
B
Bore Ø [mm]
C
Distance [mm]
D
Distance [mm]
MS2N13-B 89 147 12 68 53
MS2N13-C 89 197 12 68 53
MS2N13-D 89 247 12 68 53
MS2N13-E 89 297 12 68 53
Mounting screws tightening torque
Screw
1)
M4 M6 M8 M10 M12 M16
Mounting holes ⌀ [mm] 4.5 6.6 9 11 / 12 14 18
Tightening torque M
A
[Nm] bei μ
K
=
0.12
3.0 10.1 24.6 48 84 206
Washer - - yes yes yes yes
1)
Screws according toEN ISO 4762:2004 or EN ISO 4014:2011. Fastening class 8.8. The screw lengths depends on material
and installation situation. The specified tightening torque must be ensured.
