Connect SpeedCon connectors
Before connecting, please ensure properly meas-
ured ready-made connection cables are available.
The type, size and cable cross section of the
plug-in connector must be adjusted to the motor.

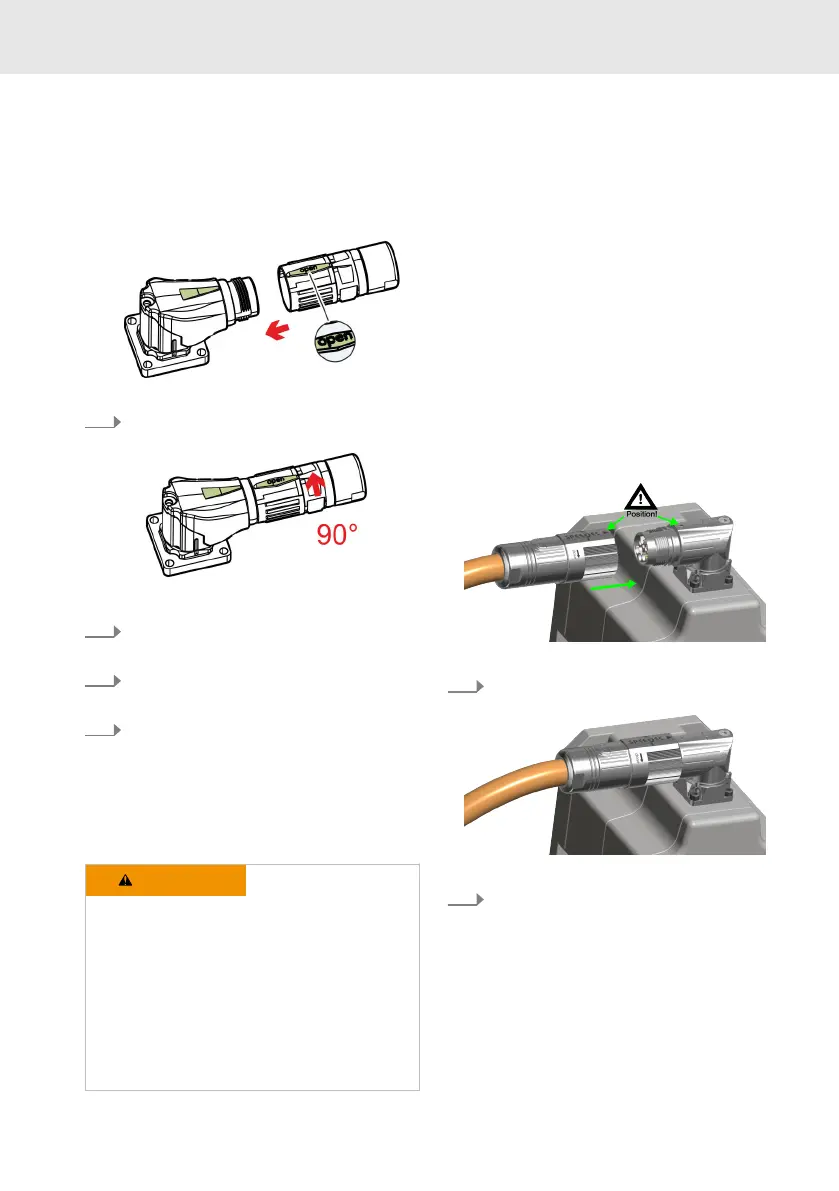

1. Insert power connector in position “open”.
2.
Manually tighten the power connector with
a rotation by approx. 90°.
3.
Check the firm seat of the SpeedCon quick
lock by short pull on the connector.
4.
Secure the cables, that accruing forces
due to cable vibrations onto the connector
are prevented.
🡆 The plug-in connector is ready for use.
7.4.17 SpeedTec connector
WARNING
Risk of personal injury or damage to property
due to disconnecting or connecting live plug con-
nections!
−
Only disconnect or connect plug connec-
tions when they are dry and de-energized.
− During operation of the system, all plug con-
nections must be firmly locked or screwed
tight.
Observe when connecting the
flange sockets:
• Protect the device connectors from external
force effect.
• Connect the motor to ready-made connec-
tion cables.
Connect SpeedTec connector
Material:
•
Hybrid connector, size M17 (RHS1701/
CM07)
Before connecting, please ensure properly meas-
ured ready-made connection cables are available.
The type, size and cable cross section of the
plug-in connector must be adjusted to the motor.
1.
Code and mount the connector
2.
Attach the connector
