MS2N
Electrical connection
Bosch Rexroth AG
R911347581, Edition 05

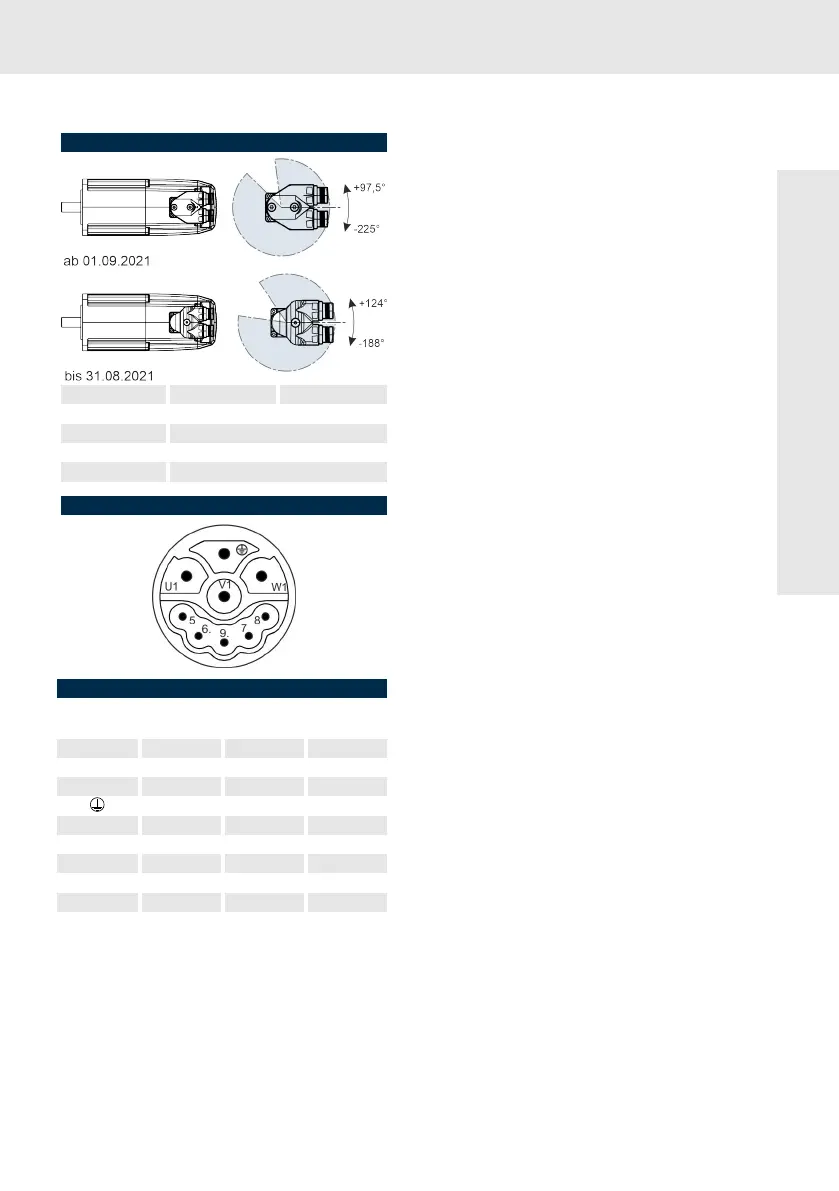

7.4.5 MS2N Electrical connection D
View M17 (double cable connection) / rotating area
Device connector Performance Encoder
Connector size M17 M17
Output direction rotatable (max. 10x)
Adjustment torque 2 ... 10 Nm
Locking SpeedCon
Pole pattern M17, power
Assignment M17, power (double cable connection)
MS2N
Encoder
A_, B_
Encoder
C_, D_, H_
Cable**)
U1 A1 A1 1 (BN)
V1 A2 A2 2 (BK)
W1 A3 A3 3 (GY)
PE PE GNYE
5 TP(+) n.c. 5 (PK)
6 TP(-) n.c. 6 (WH)
7 BD(+) *) BD(+) *) 7 (RD)
8 BD(-) *) BD(-) *) 8 (BU)
9 n.c. n.c. Shld
*) n.c. without brake
**) Bosch Rexroth types REL, RL2, RLB2
For instructions for mounting about SpeedCon
connectors refer to ⮫ Chapter 7.4.16
“SpeedCon connectors” on page 51.
Assembly
