MS2N
Features and functions
Bosch Rexroth AG
R911347581, Edition 05
5.2.8 Holding brake

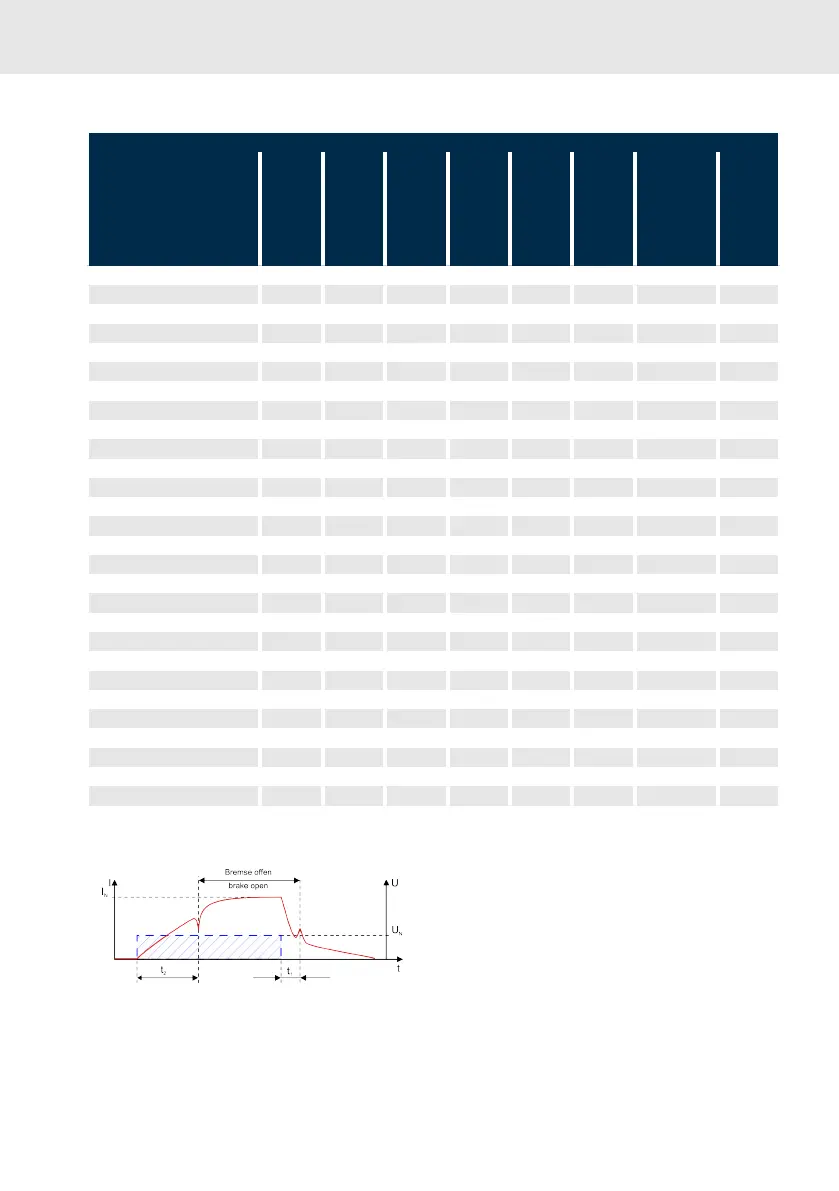

Holding brakes - Technical data
Type Holding
torque
Dynamic
braking
torque
Rated
voltage
1)
Rated cur-
rent
Maximum
connec-
tion time
Maximum
discon-
nection
time
Moment of
inertia of the
holding brake
Maximum
switched
energy
M
4
Nm
M
1
Nm
U
N
V
I
N
A
t
1
ms
t
2
ms
J
br
kg*m
2
W
max
J
MS2N03-A____-____1-_____-__ 1.80 1.3 24 0.46 8 35 0.0000074 300
MS2N03-B____-____1-_____-__ 1.80 1.3 24 0.46 8 35 0.0000074 300
MS2N03-D____-____1-_____-__ 1.80 1.3 24 0.46 8 35 0.0000074 300
MS2N04-B____-____1-_____-__ 5.00 4.5 24 0.63 30 45 0.0000451 400
MS2N04-C____-____1-_____-__ 5.00 4.5 24 0.63 30 45 0.0000451 400
MS2N04-D____-____1-_____-__ 5.00 4.5 24 0.63 30 45 0.0000451 400
MS2N05-B____-____1-_____-__ 10.00 4.5 24 0.73 30 80 0.0001070 400
MS2N05-C____-____1-_____-__ 10.00 4.5 24 0.73 30 80 0.0001070 400
MS2N05-D____-____1-_____-__ 10.00 4.5 24 0.73 30 80 0.0001070 400
MS2N06-B____-____1-_____-__ 10.00 4.5 24 0.73 30 80 0.0001070 400
MS2N06-C____-____1-_____-__ 10.00 4.5 24 0.73 30 80 0.0001070 400
MS2N06-D____-____2-_____-__ 15.00 11 24 0.75 50 135 0.0001400 888
MS2N06-E____-____2-_____-__ 15.00 11 24 0.75 50 135 0.0001400 888
MS2N07-C____-____1-_____-__ 20.00 12.5 24 0.78 40 100 0.0002550 340
MS2N07-D____-____2-_____-__ 36.00 16.5 24 0.94 60 200 0.0004100 850
MS2N07-E____-____2-_____-__ 36.00 16.5 24 0.94 60 200 0.0004100 850
MS2N10-B____-____1-_____-__ 33.00 16.5 24 0.94 60 200 0.0004100 850
MS2N10-C____-____2-_____-__ 53.00 23 24 1.00 70 220 0.0014700 850
MS2N10-D____-____2-_____-__ 53.00 23 24 1.00 70 220 0.0014700 850
MS2N10-E____-____3-_____-__ 90.00 33 24 1.50 65 250 0.0027000 1470
MS2N10-F____-____3-_____-__ 90.00 33 24 1.50 65 250 0.0027000 1470
MS2N13-B____-____1-_____-__ 115.00 - 24 2.10 100 240 0.005665 4,900
MS2N13-C____-____1-_____-__ 115.00 - 24 2.10 100 240 0.005670 4,900
MS2N13-D____-____1-_____-__ 115.00 - 24 2.10 100 240 0.005670 4,900
MS2N13-E____-____1-_____-__ 115.00 - 24 2.10 100 240 0.005670 4,900
MS2N13-C____-____2-_____-__ 280.00 - 24 1.70 300 350 0.020000 2,000
MS2N13-D____-____2-_____-__ 280.00 - 24 1.70 300 350 0.020000 2,000
MS2N13-E____-____2-_____-__ 280.00 - 24 1.70 300 350 0.020000 2,000
1) Tolerance ± 10%
Fig. 6: Switching times of static hold mode
t
1
Connection time (close)
t
2
Disconnection time (open)
The backlash-free holding brakes are operated
according to the “electrically-released” principle
(closed-circuit principle) and open upon applying
the switching voltage.
