The service lives of motor components, such as
seals and bearings, may vary depending on the
operating conditions, such as operation mode,
speed, vibration and shock load, and frequent
reverse mode. We recommend to change the
bearing after 30,000 operating hours. Shorter
replacement intervals may be necessary; cf.
checks during operation . We recommend reg-
ular visual inspections on shaft sealing rings.
Depending on operating conditions, signs of wear
may appear after 5,000 operating hours. If nec-
essary, replace the shaft sealing rings.
The Bosch Rexroth service helpdesk at our head-
quarters in Lohr, Germany and our worldwide
service provide You can contact us 24/7.
Telephone: +49 (0) 9352 40 50 60
Fax: +49 (0) 9352 18 49 41
Email service.svc@boschrexroth.de
Internet: ⮫ https://www.boschrexroth.com
Preparing information
For quick and efficient help, please have the fol-
lowing information ready:
•
Detailed description of the fault and the cir-
cumstances
• Information on the rating plate of the prod-
ucts in question, particularly type codes and
serial numbers
•
Your contact data (phone number, fax
number, email address)
10 Disassembly and
exchange
10.1
Tools required
NOTICE
Motor damage due to strikes onto the motor shaft
− Do not strike the shaft end and do not
exceed the allowed axial and radial forces
of the motor.
Use suitable tools when disassembling transmis-
sion elements.
Pulling off

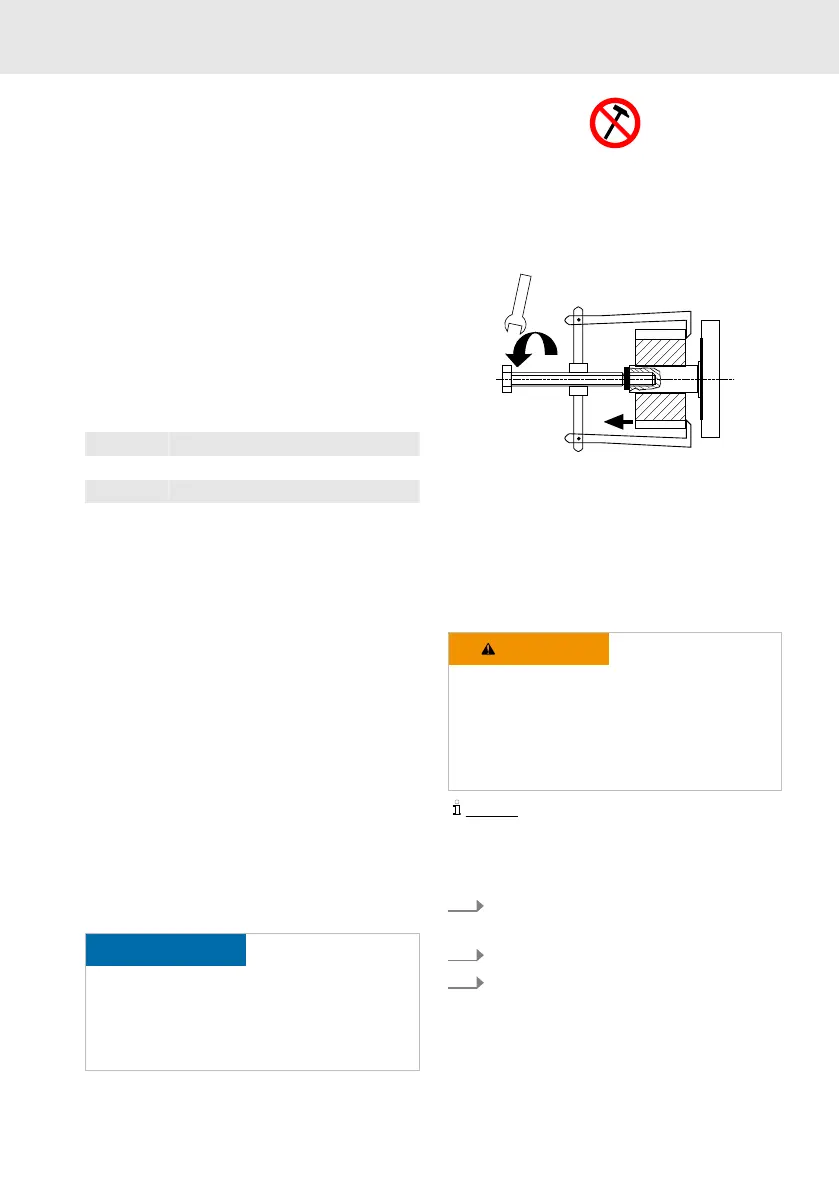

Fig. 35: Remove transmission element
Use tools suitable for pulling off. Use a shim to
protect the shaft end when using pulling-off tools.
Heat the output element, if necessary.
10.2
Replace the motor
WARNING
Electric shock due to live parts with more than
50 V!
Replacement may only be performed by per-
sonnel trained and qualified to work on or with
electrical equipment.
Remark: The motor should be replaced by a
motor of identical type. This is the only way
to ensure that all parameterizations can remain
unchanged.
1.
If necessary, note the previous absolute
value
2.
Open the main switch
3.
Make sure the main switch cannot be
switched back on
