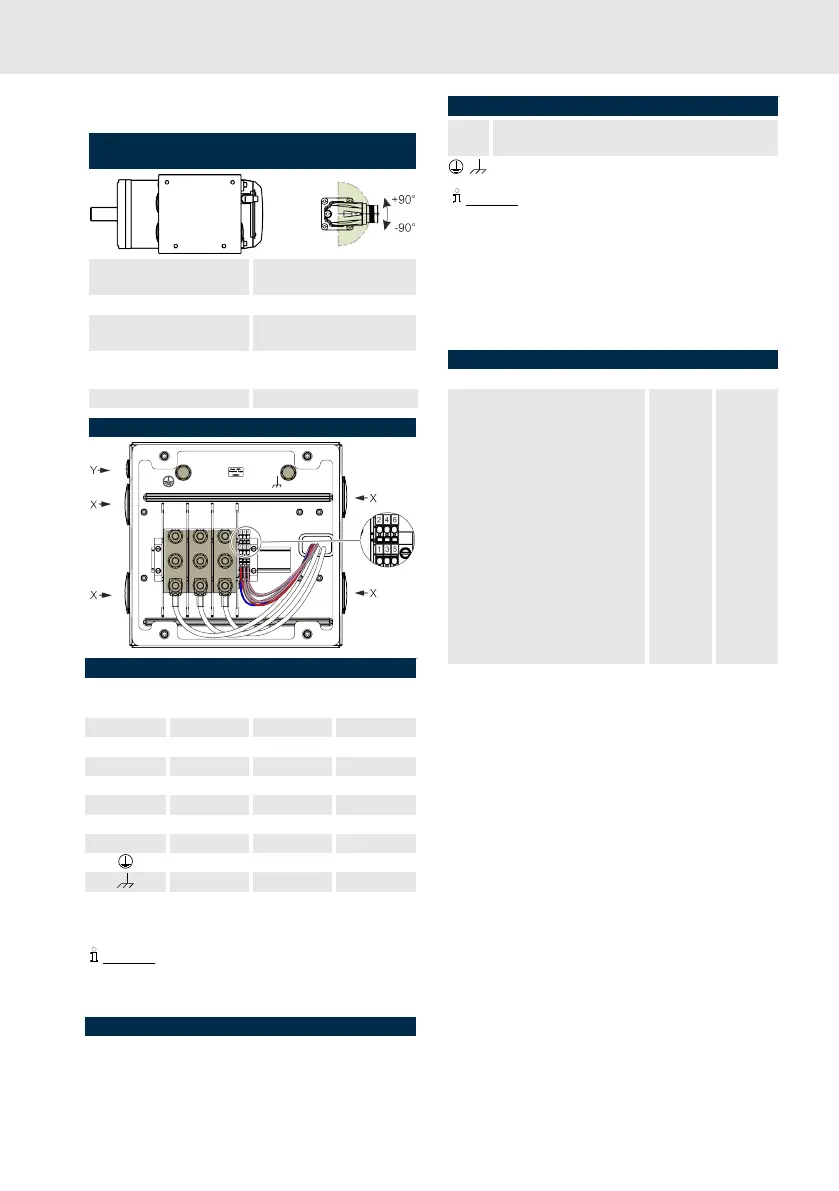

7.4.11 MS2N Electrical connection E
View terminal box "E" power, M17 encoder (double cable
connection) / rotating area
Performance
Terminal box
Encoder
Device connector
Connector size M17
Output direction
A-side / B-side
Rotatable output direction
(max. 10x)
Adjustment torque
2 ¼ 6 Nm
Locking SpeedCon
Terminal boxes “E” power
Pin assignment, terminal boxes “E”, power
MS2N
Encoder
A_, B_
Encoder
C_, D_, H_
Cable**)
U A1 A1 1
V A2 A2 2
W A3 A3 3
1 BD(+) *) BD(+) *) 7
2 BD(-) *) BD(-) *) 8
3 TP1(+) n.c. 5
4 TP2(-) n.c. 6
PE PE GNYE
Shld Shld Shld
*) n.c. without brake
**) Bosch Rexroth types REL, RL2, RLB2
Remark:
− Assign not used connection wires within the
terminal box.
Technical data, connection points terminal boxes "E", power
U, V, W Bolts M10, M
A
10 ... 20 Nm
Rated cross section 50 6 ... 120 mm
2
Rated current 269 A
Technical data, connection points terminal boxes "E", power
1-4 Tension spring connection 0.5 ...
2.5 mm
2
with wire end ferrule
, Screwed connection M10, M
A
10 Nm
Remark
: The terminal block can be moved on
the top-hat rail in order to be able to wire cable
outlet directions optimally. The terminal box is
suited for double cabling
The cable entries “X” and “Y” are locked with
dummy plugs, at delivery. For bolted threads
refer to the following table.
Cable entries "X” and “Y”, terminal boxes "T", power
Motor Size "X" Size “Y"
MS2N13-D1BHN-__E__-_____-__
MS2N13-D1BNN-__E__-_____-__
MS2N13-E1BHN-__E__-_____-__
MS2N13-E1BNN-__E__-_____-__
MS2N13-D1BHC-__E__-_____-__
MS2N13-D1BNC-__E__-_____-__
MS2N13-E1BNC-__E__-_____-__
MS2N13-E1BHC-__E__-_____-__
MS2N13-D1BHL-__E__-_____-__
MS2N13-D1BNL-__E__-_____-__
MS2N13-E1BHL-__E__-_____-__
MS2N13-E1BNL-__E__-_____-__
4x M50 1x M20
