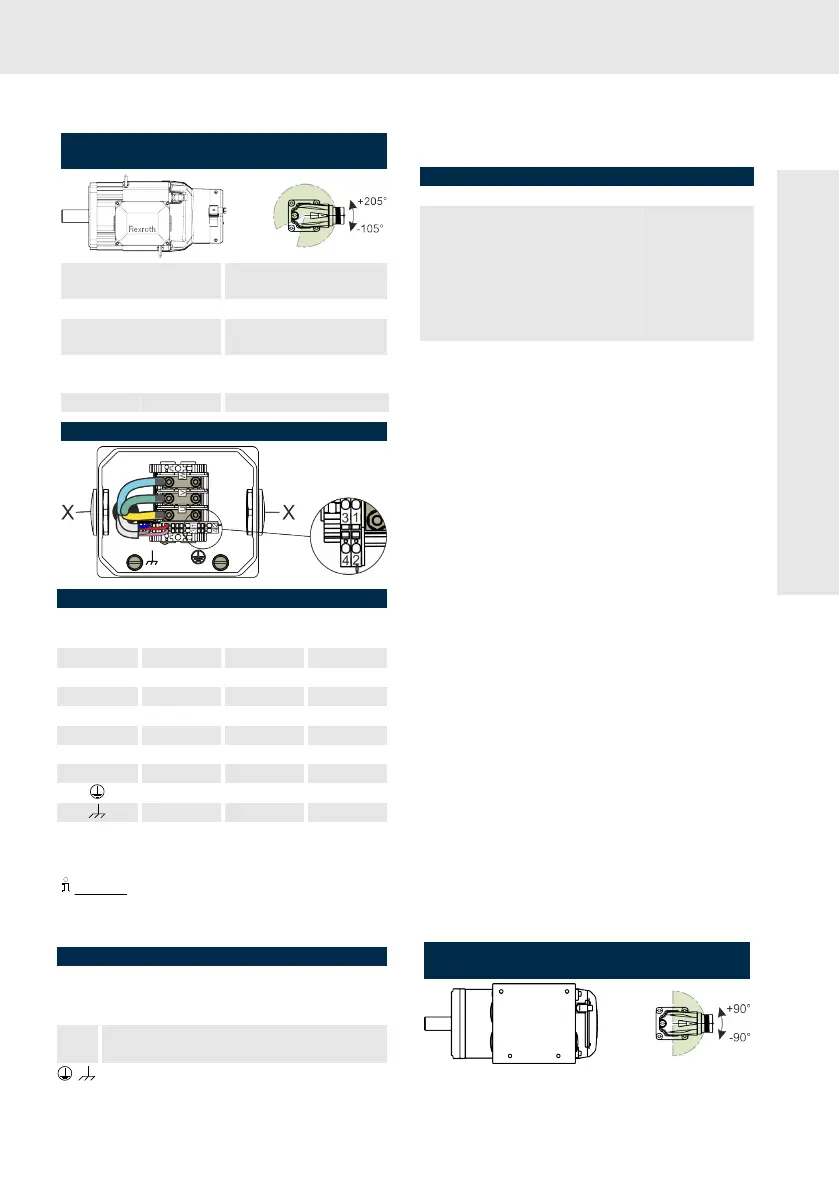

7.4.9 MS2N Electrical connection T
View terminal box T power, M17 encoder (double cable
connection) / rotating area
Performance
Terminal box
Encoder
Device connector
Connector size M17
Output direction
A-side / B-side
Rotatable output direction
(max. 10x)
Adjustment torque
2 ¼ 6 Nm
Locking SpeedCon
Terminal boxes “T” power
Pin assignment, terminal boxes “T”, power
MS2N
Encoder
A_, B_
Encoder
C_, D_, H_
Cable**)
U A1 A1 1
V A2 A2 2
W A3 A3 3
1 BD(+) *) BD(+) *) 7
2 BD(-) *) BD(-) *) 8
3 TP1(+) n.c. 5
4 TP2(-) n.c. 6
PE PE GNYE
Shld Shld Shld
*) n.c. without brake
**) Bosch Rexroth types REL, RL2, RLB2
Remark:
− Assign not used connection wires within the
terminal box.
Technical data, connection points terminal boxes "T", power
U, V, W Bolts M5, M
A
2 ¼ 3 Nm
Rated cross section 16 mm
2
Rated current 65 A
1-4 Tension spring connection 0.5 ¼ 2.5 mm
2
with wire end ferrule
, Screwed connection M8, M
A
3.8 Nm
The cable entries “X” are locked with a dummy
plugs, at delivery. For bolted threads refer to the
following table.
Cable entries "X", terminal boxes "T", power
Motor Size "X"
MS2N10-C0BHA-__T__-_____-__
MS2N10-C0BHB-__T__-_____-__
MS2N10-C0BNA-__T__-_____-__
MS2N10-C0BNB-__T__-_____-__
MS2N10-C0BHL-__T__-_____-__
MS2N10-C0BNL-__T__-_____-__
2 x M32
MS2N10-D0BHA-__T__-_____-__
MS2N10-D0BHB-__T__-_____-__
MS2N10-D0BNA-__T__-_____-__
MS2N10-D0BNB-__T__-_____-__
MS2N10-E0BHA-__T__-_____-__
MS2N10-E0BHB-__T__-_____-__
MS2N10-E0BNA-__T__-_____-__
MS2N10-E0BNB-__T__-_____-__
MS2N10-F0BDA-__T__-_____-__
MS2N10-F0BDB-__T__-_____-__
MS2N10-F0BHA-__T__-_____-__
MS2N10-F0BHB-__T__-_____-__
MS2N10-E1BNA-__T__-_____-__
MS2N10-E1BNB-__T__-_____-__
MS2N10-F1BHA-__T__-_____-__
MS2N10-F1BHB-__T__-_____-__
MS2N10-D0BHL-__T__-_____-__
MS2N10-D0BNL-__T__-_____-__
MS2N10-E0BHL-__T__-_____-__
2 x M40
Note for assembly about SpeedCon connectors,
see ⮫ Chapter 7.4.16 “SpeedCon connectors”
on page 51
7.4.10 MS2N Electrical connection C
Rotating area
View terminal box "C” power, M17 encoder (double cable
connection) / rotating area
Assembly
