MS2N
Electrical connection
Bosch Rexroth AG
R911347581, Edition 05

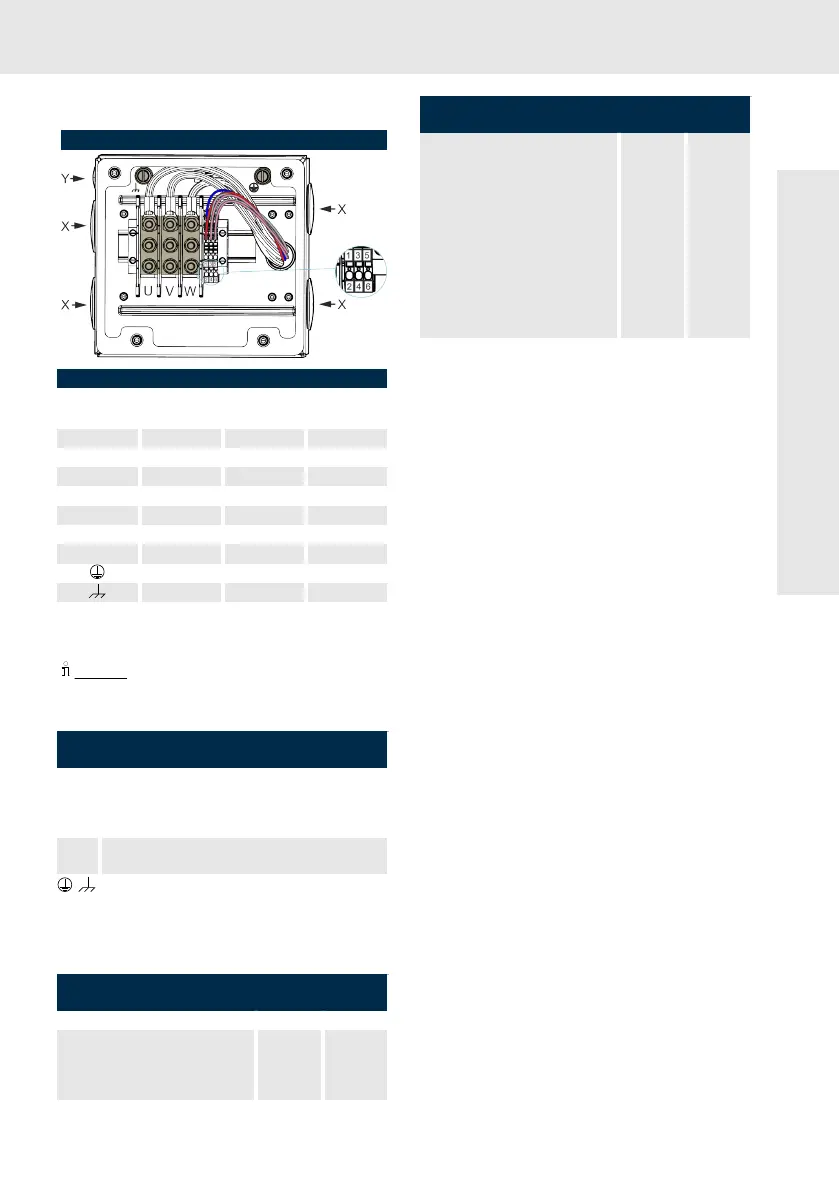

Terminal boxes size “C” (MS2N13)
Terminal boxes “C (MS2N13)”, power
Pin assignment, terminal boxes “C (MS2N13)”, power
MS2N
Encoder
A_, B_
Encoder
C_, D_, H_
Cable**)
U A1 A1 1
V A2 A2 2
W A3 A3 3
1 BD(+) *) BD(+) *) 7
2 BD(-) *) BD(-) *) 8
3 TP1(+) n.c. 5
4 TP2(-) n.c. 6
PE PE GNYE
Shld Shld Shld
*) n.c. without brake
**) Bosch Rexroth types REL, RL2, RLB2
Remark:
−
Assign not used connection wires within the
terminal box.
Technical data, connection poins terminal boxes "C
(MS2N13)", power
U, V, W Bolts M8, M
A
6 ... 12 Nm
Rated cross section 50 mm
2
Rated current 150 A
1-4 Tension spring connection 0.5 ...
2.5 mm
2
with wire end ferrule
, Screwed connection M8, M
A
3.5 Nm
The cable entries “X” and “Y” are locked with
dummy plugs, at delivery. For bolted threads
refer to the following table.
Cable entries "X” and “Y”, terminal boxes "C (MS2N13)",
power
Motor Size "X" Size “Y"
MS2N13-B1BHN-__C__-_____-__
MS2N13-B1BNN-__C__-_____-__
MS2N13-C1BHN-__C__-_____-__
4x M50 1x M20
Cable entries "X” and “Y”, terminal boxes "C (MS2N13)",
power
MS2N13-C1BNN-__C__-_____-__
MS2N13-B1BHC-__C__-_____-__
MS2N13-B1BNC-__C__-_____-__
MS2N13-C1BHC-__C__-_____-__
MS2N13-C1BNC-__C__-_____-__
MS2N13-B1BHL-__C__-_____-__
MS2N13-B1BNL-__C__-_____-__
MS2N13-C1BHL-__C__-_____-__
MS2N13-C1BNL-__C__-_____-__
Assembly
