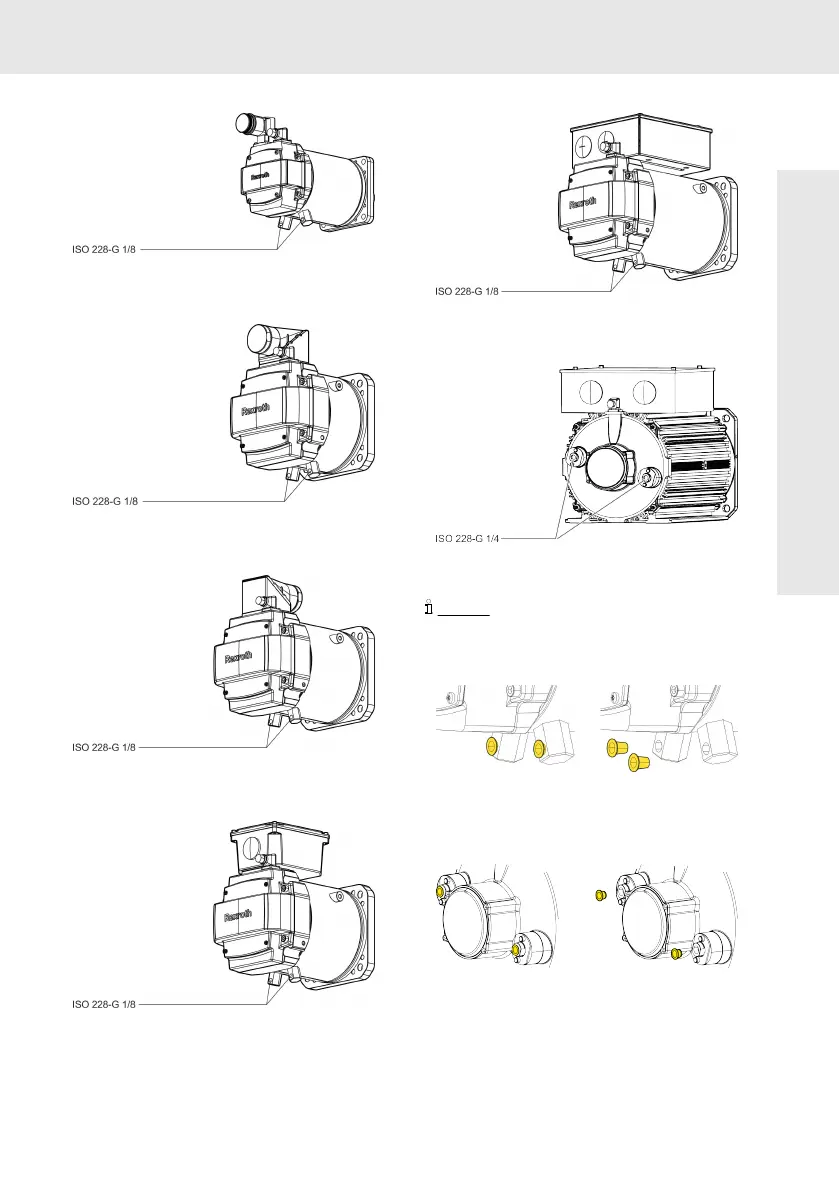

Fig. 24: Coolant connection MS2N07
Fig. 25: Coolant connection MS2N10-____L-__B__
Fig. 26: Coolant connection MS2N10-____L-__A__
Fig. 27: Coolant connection MS2N10-____L-__T__
Fig. 28: Coolant connection MS2N10-____L-__C__
Fig. 29: Coolant connection MS2N13-____L-__E__
Remark: The allocation of intake (IN) and out-
take (OUT) can be arbitrarily done. It does not
influence the power data of the motor in any way.
Fig. 30: Protective plug MS2N07, MS2N10 water
cooling
Fig. 31: Protective plug MS2N13 water cooling
Assembly
