Inspection and maintenance
57
Worcester 2000 – 6 721 814 551 (2019/09)

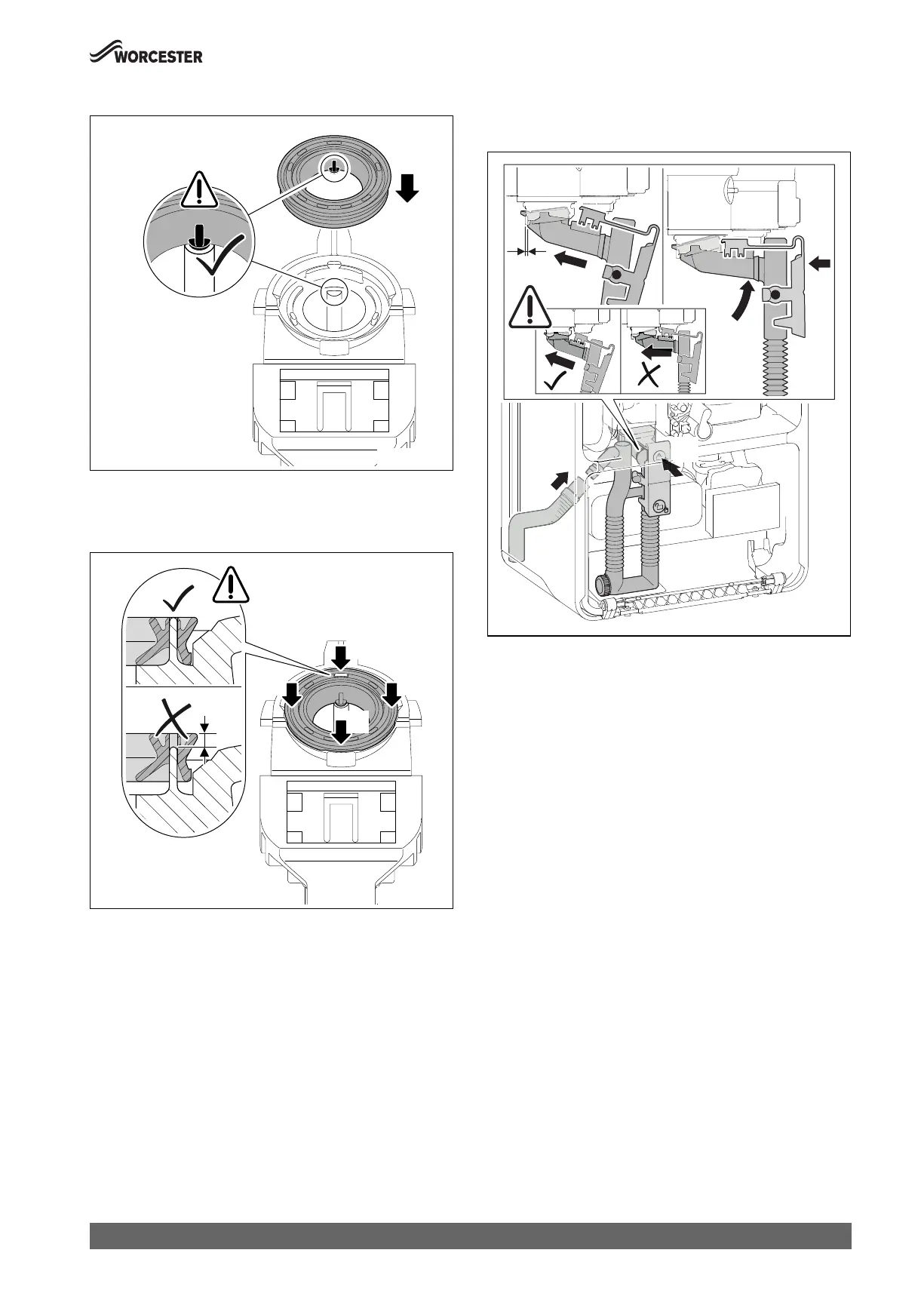

▶ Align the gasket correctly with the condensate trap.
Fig. 74 Aligning the gasket with the condensate trap
▶ Push on the gasket in the sequence shown.
When the gasket is correctly inserted, the pin is visible in the recess
and is flush with the top edge of the gasket.
Fig. 75 Pressing on the gasket
▶ Replace the condensate trap and check for tightness.
▶ Check the condensate hose and clean if required.
▶ Grease the hose during assembly and check tightness of connection.
Fig. 76 Inserting the condensate trap
▶ Fill the condensate trap with approximately 150 ml water.
0010019151-001
1.
2.
3.
2.
0010019159-001
0
4.
3.
3.
2.
1.
0010021780-001
