Product Information
Worcester 2000 – 6 721 814 551 (2019/09)
8
3.5 Product identification
Data plate
The data plate includes the product performance information, approval
data and serial number. The data plate location can be found in the
product overview.
Additional type plate
The product name and the most important product data are shown on
the additional data plate. The additional type plate can be found on the
outside of the product in an easily accessible location.
3.6 Pipe work positions and flue outlet

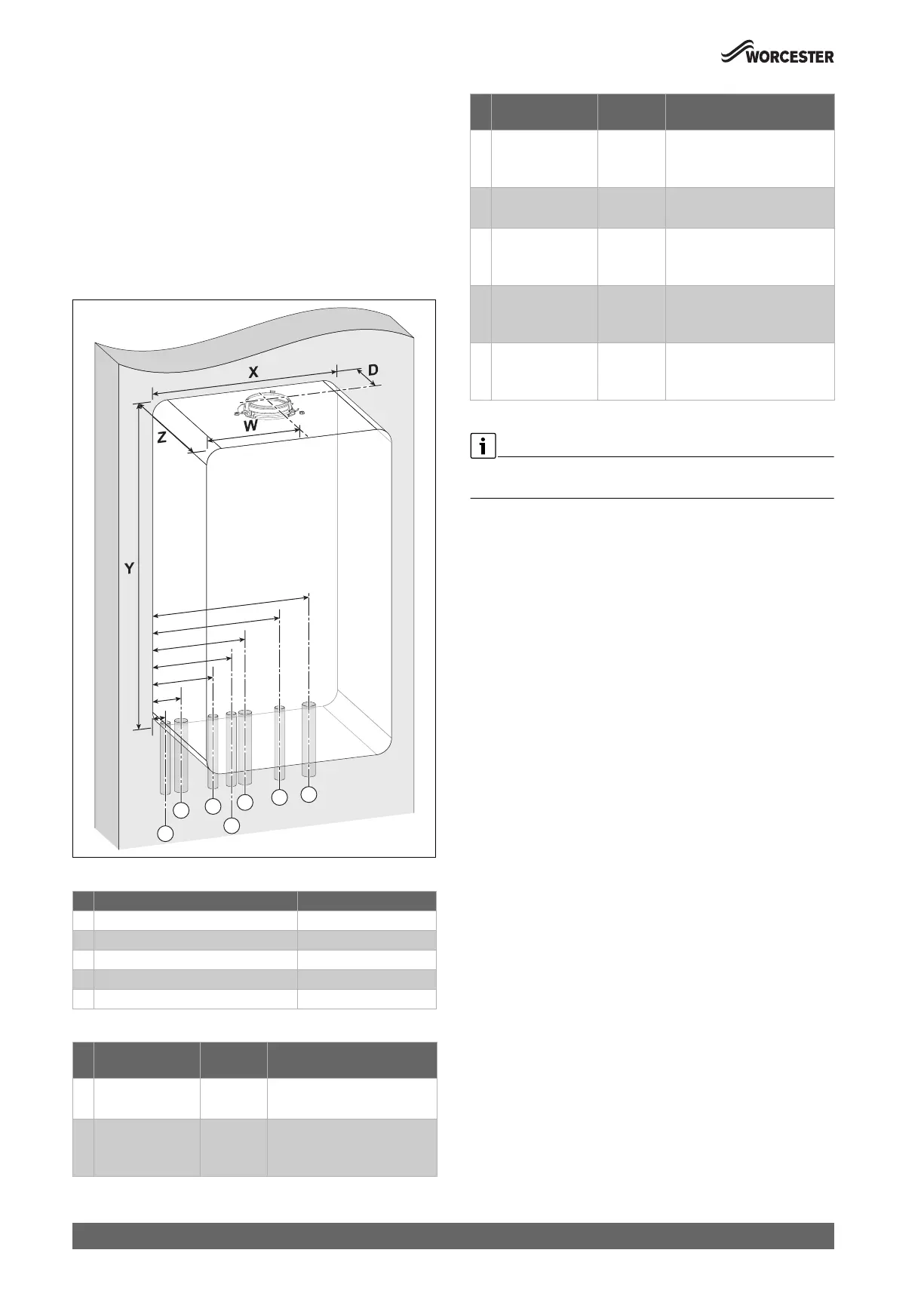

Fig. 2 Pipe and flue outlet dimensions
Table 3 Appliance and flue outlet dimensions
Table 4 Pipe dimensions
For servicing purposes, keep condensate and pressure release valve
discharge pipes away from other hydraulic components.
Description Dimensions (mm)
X Appliance width 400
Y Appliance height 724
Z Appliance depth 300
W Flue centre from appliance left side 200
D Flue centre from rear of appliance 125
# Function From left
case edge
Diameter of pipe
1 Condensate Outlet 60mm 22mm
• Rubber push fit connection
2 CH Flow 68mm 22mm
• Compression fitting (via
adaptor)
0010029389-001
1
2
3
5
4
6
7
3 DHW Outlet 133mm 15mm
• Compression fitting (via
adaptor)
4 PRV Discharge 172.5mm 15mm
• Fittings not supplied
5 Gas 200mm 22mm
• Compression fitting (via
adaptor)
6 DCW Inlet 267mm 15mm
• Compression fitting (via
adaptor)
7 CH Return 332mm 22mm
• Compression fitting (via
adaptor)
# Function From left
case edge
Diameter of pipe
