Bose L1 Compact Service Manual

40
Disassembly Procedures

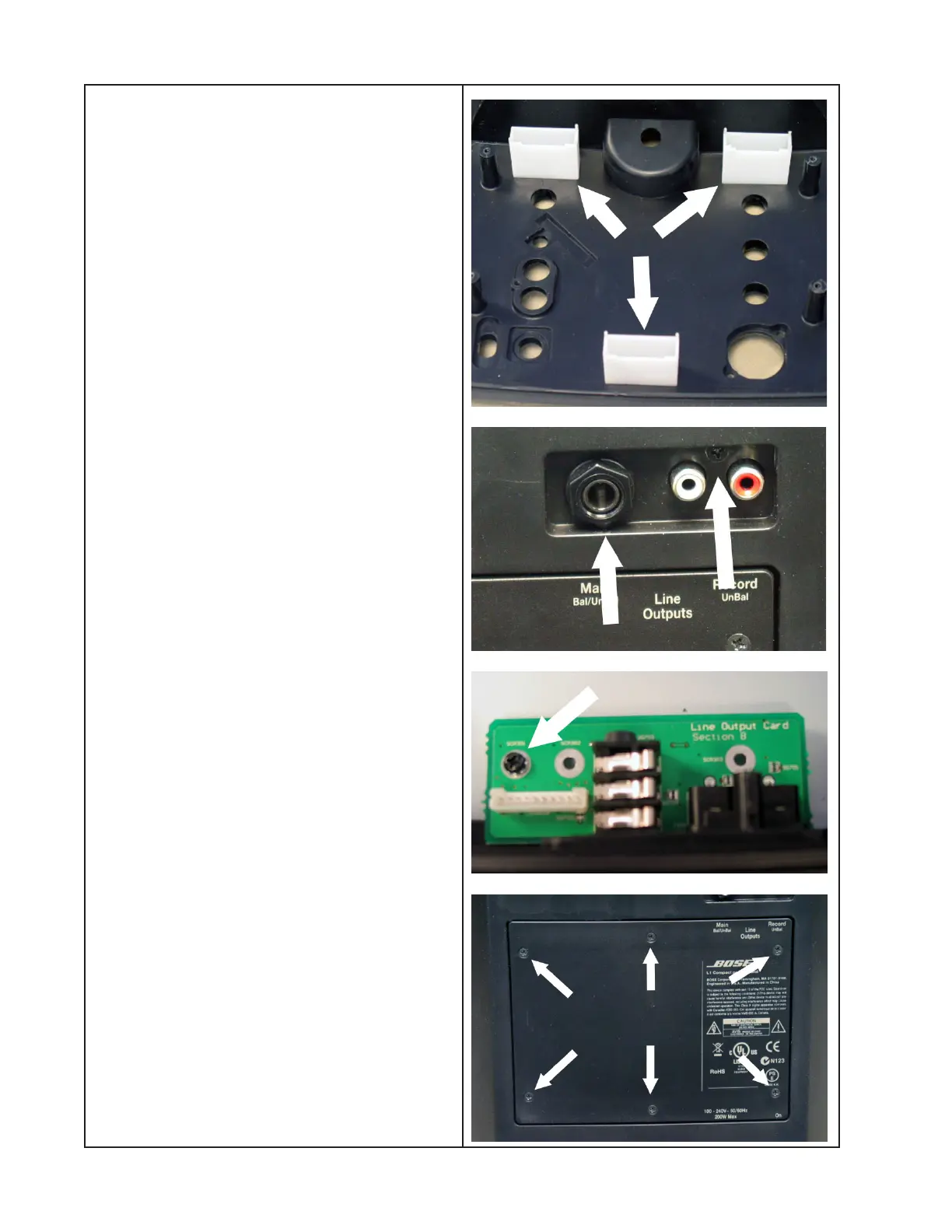

Input/Output PCB Re-assembly Note:
Be sure that the LED lightpipes are properly
aligned with the holes in the PCB and the
openings in the top cover when re-installing
the I/O PCB assembly.
4. Line Output Card Removal
4.1 Perform procedure 1.
4.2 Remove the one screw at the RCA jacks
and the plastic nut at the 1/4” jack.
4.3 Remove the one screw that secures the
line output card to the metal plate. Lift out the
card.
5. Power Amplifier / SMPS PCB Removal
5.1 Remove the six screws that secure the
rear access panel. Lift off the panel.
