Disassembly Procedures

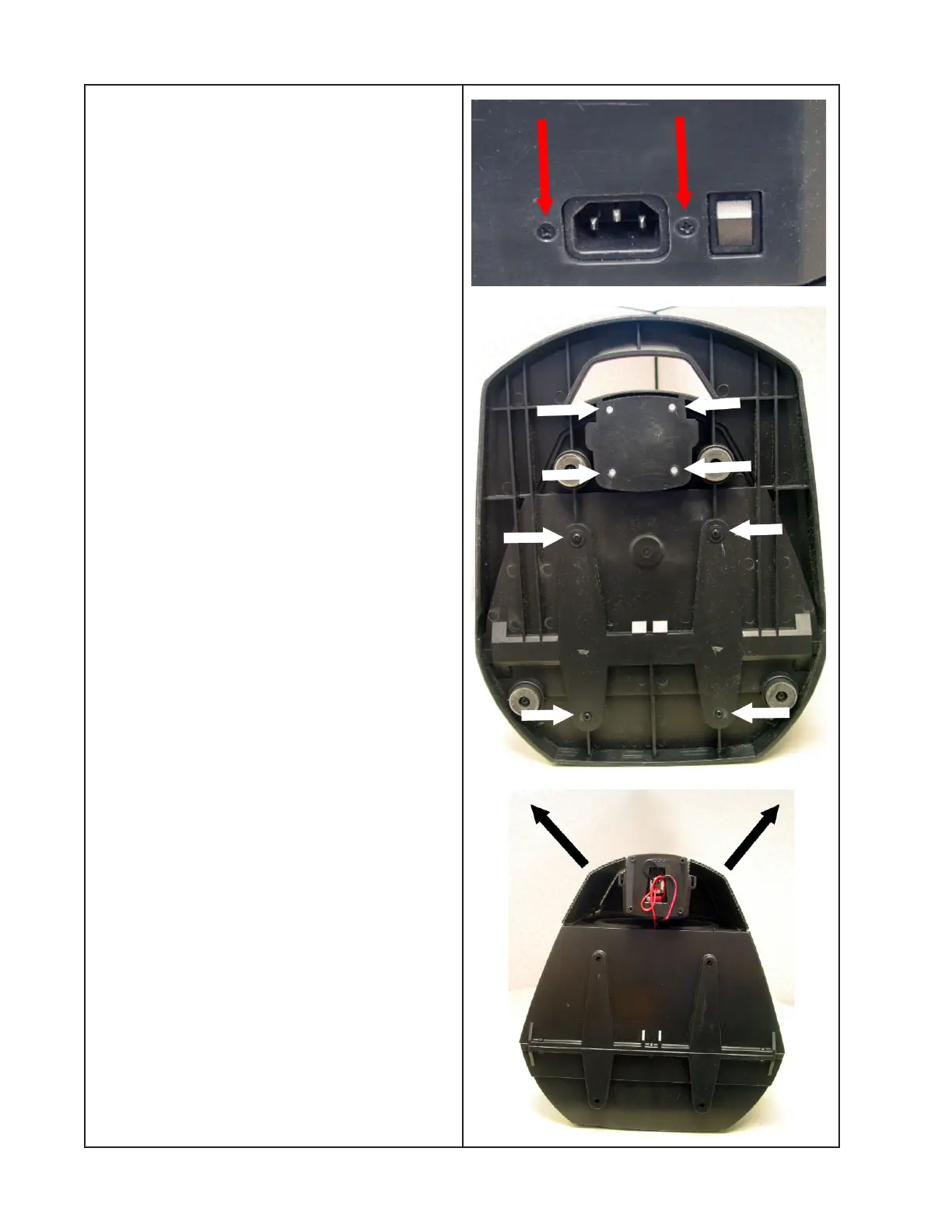

6. AC Inlet and Power Switch Removal
6.1 Perform procedure 5.
6.2 Disconnect the three wires that connect
to the AC inlet jack. Remove the two screws
that secure the AC inlet to to the cabinet. Lift
out the jack.
6.3 Disconnect the two wires that connect to
the AC power switch. Lift out the switch
Note: The AC inlet and power switch are
secured to the cabinet with glue to prevent
air leaks. Be sure to re-seal the new parts.
7. Woofer Removal
7.1 On the bottom of the Power Stand,
remove the four screws located toward the
center of the plastic foot. These are not the
screws that hold the rubber feet in place.
7.2 Remove the four screws that secure the
bottom of the array connector housing to the
foot. Lift off the plastic foot.
7.3 Lift out the woofer grilles and set them
aside.
