Bose L1 Compact Service Manual

43
Disassembly Procedures

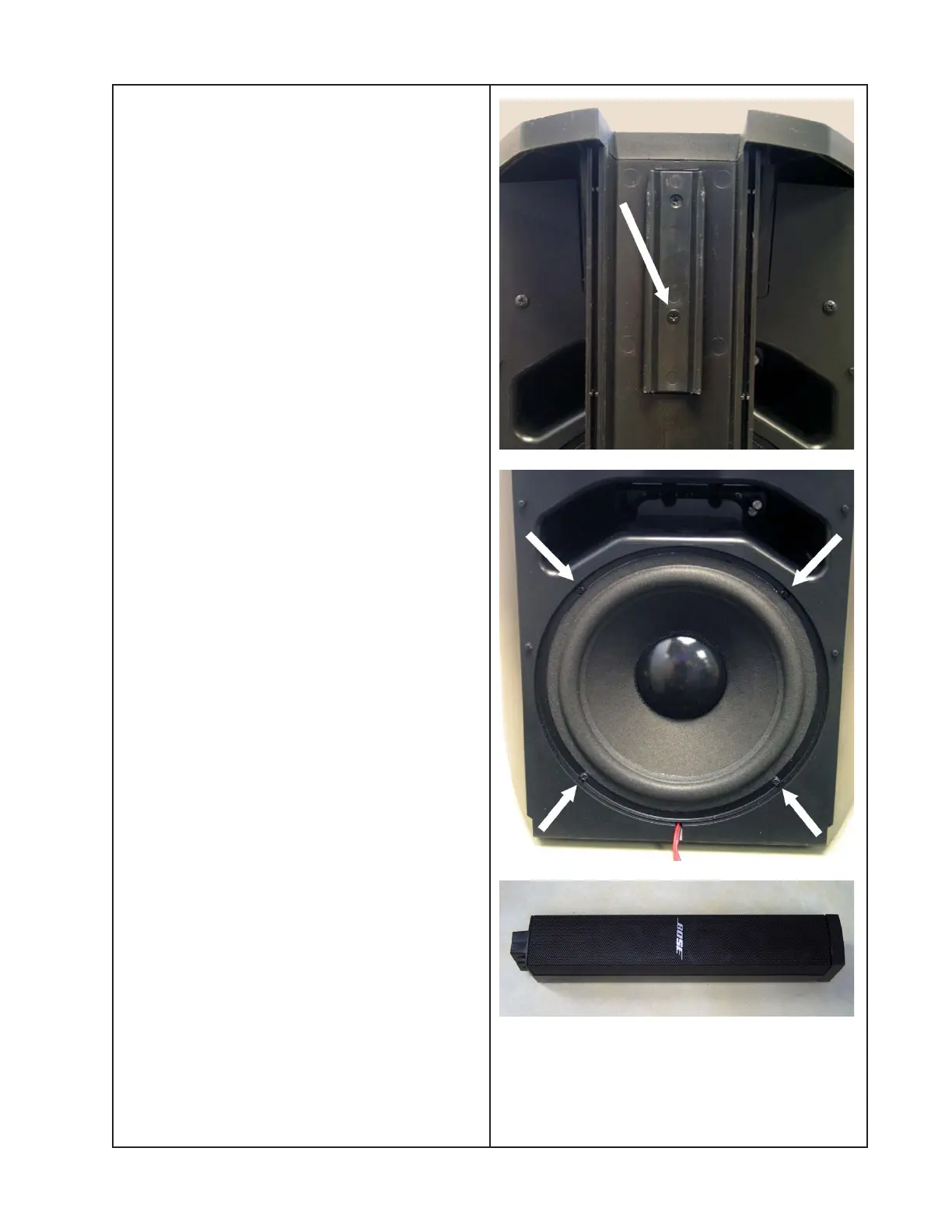

7.4 Remove the one screw that secures the
array guide to the cabinet. Slide the array
guide down and out from in front of the
woofer.
7.5 Remove the fours screws that secure
the woofer to the cabinet. Lift out the woofer.
Disconnect the two faston connectors from
the woofer.
Re-assembly Note: Be sure to align the
woofer grilles to the slots in the top cover and
the plastic foot when replacing the foot.
L1 Compact Array Procedures
1. Grille Removal
1.1 Grasp the grille and carefully pull it away
from the array. Lift off the grille.
Re-assembly Note: Be sure there is suffi-
cient damping material in the array grooves
to retain the grille and prevent buzzes.
Perform the array sweep tests after replac-
ing the grille.

Bose L1 Compact Specifications

General

Product color	Black
Recommended usage	Universal
Multi-Room Streaming (MRS) support	-
Number of drivers	6
Speaker placement	Stand-mountable
Audio output channels	- channels
RMS rated power	- W
AirPlay	No
Microphone in	Yes
Connectivity technology	Wired
Power source type	AC

Weight and Dimensions

Depth	425.45 mm
Width	336.55 mm
Height	1993.9 mm
Weight	13240 g
