117
Firmware Update Procedure
If the firmware revision shown at the top right of the
PowerShare
TM
application window is not the latest
revision it will need to be updated.

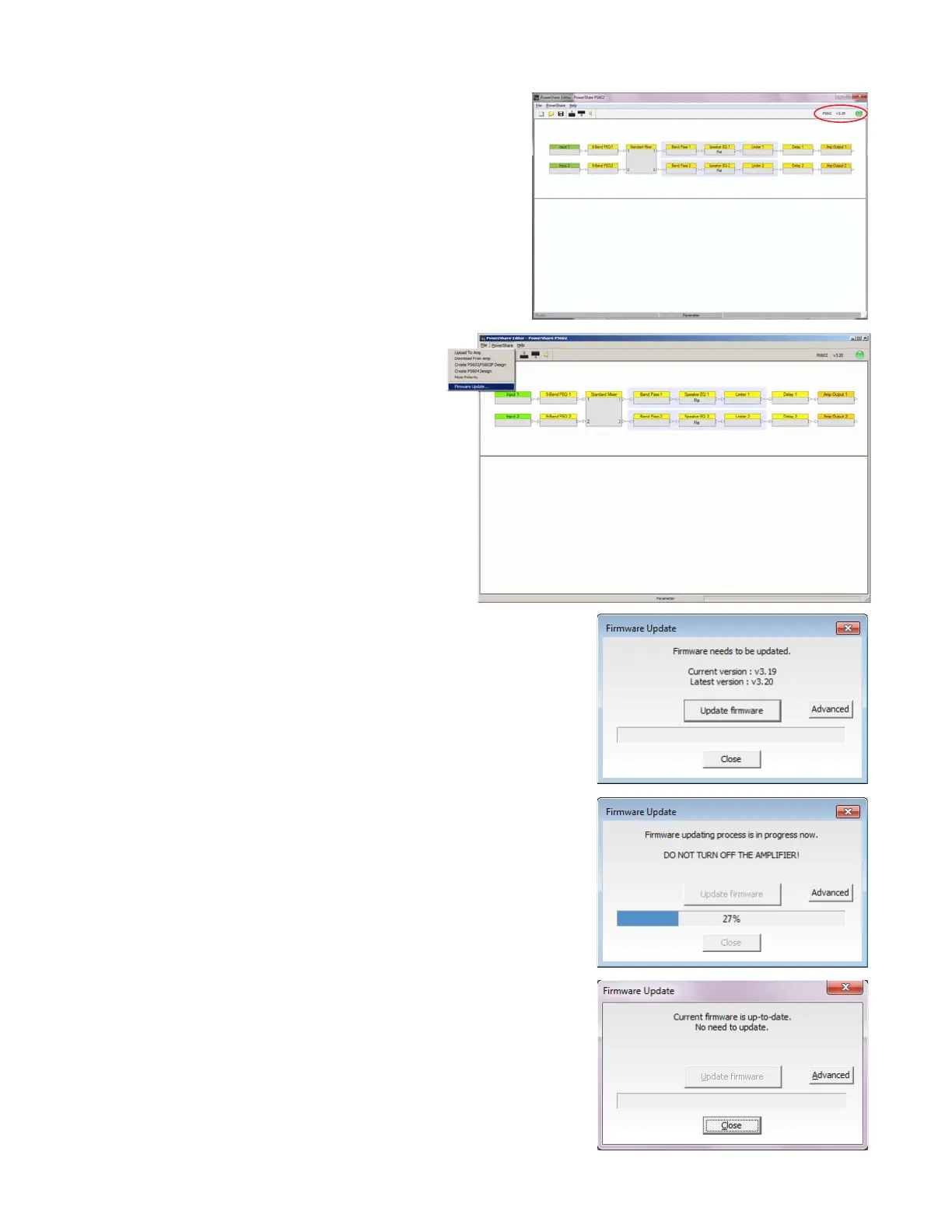

- Update the firmware by clicking on
PowerShare > Firmware Update in the
main dialog box as shown at right.
The Firmware Update dialog box will open, and will indicate
that the firmware is not the latest revision and needs to be
updated.
- Click on the Update Firmware button and the update pro-
cess will begin.
As the update progresses, the progress bar will fill in.
CAUTION! DO NOT remove power to the amplifier or discon-
nect the USB cable during the update process. Doing so will
cause the unit to fail, requiring repair.
Once the update process is completed, the dialog box will
state that the process is complete.
If the firmware revision is up to date, the Firmware Update
dialog box will indicate it, as shown at right.
End of process.
