Connecting to the Trial Stimulator
Clinician Manual
97035873-01 39 of 75
Connecting to the Trial Stimulator
Caution
• Keep the Trial Stimulator dry. It should not be exposed to moisture.
• Do not connect the Trial Stimulator to any other device except to the OR Cables provided with it.
• Keep the Trial Stimulator away from pets, pests, and children to avoid damage to the device.
Trial Stimulator Battery Service Life
The External Trial Stimulator battery has a typical service life of 10 days.
1. If two leads are used, connect the cable labeled “1-L” to the upper or left lead, and the cable labeled “2-R”
to the lower or right lead. Labels are provided. If two 2x4 splitters are used, connect the cable labeled
“1-L” to the proximal connector of one of the 2x4 splitters and connect the cable “2-R” to the proximal
connector of the other splitter. If using a Splitter 2x8 connect the cable labeled “1-L” to the laser-marked
tail and the cable labeled “2-R” to the unmarked tail. If an Innion™ CX lead is used, connect the cable
labeled “1-L” to the tail with one marker band and the cable labeled “2-R” to the tail with two marker
bands.
2. Connect the OR cables to the Trial Stimulator.
If only one lead is used, connect the OR cable to “1-L” on the Trial Stimulator.
3. Fit the Trial Belt to the patient, cut off the excess length, and place the Trial Stimulator in the belt pocket.

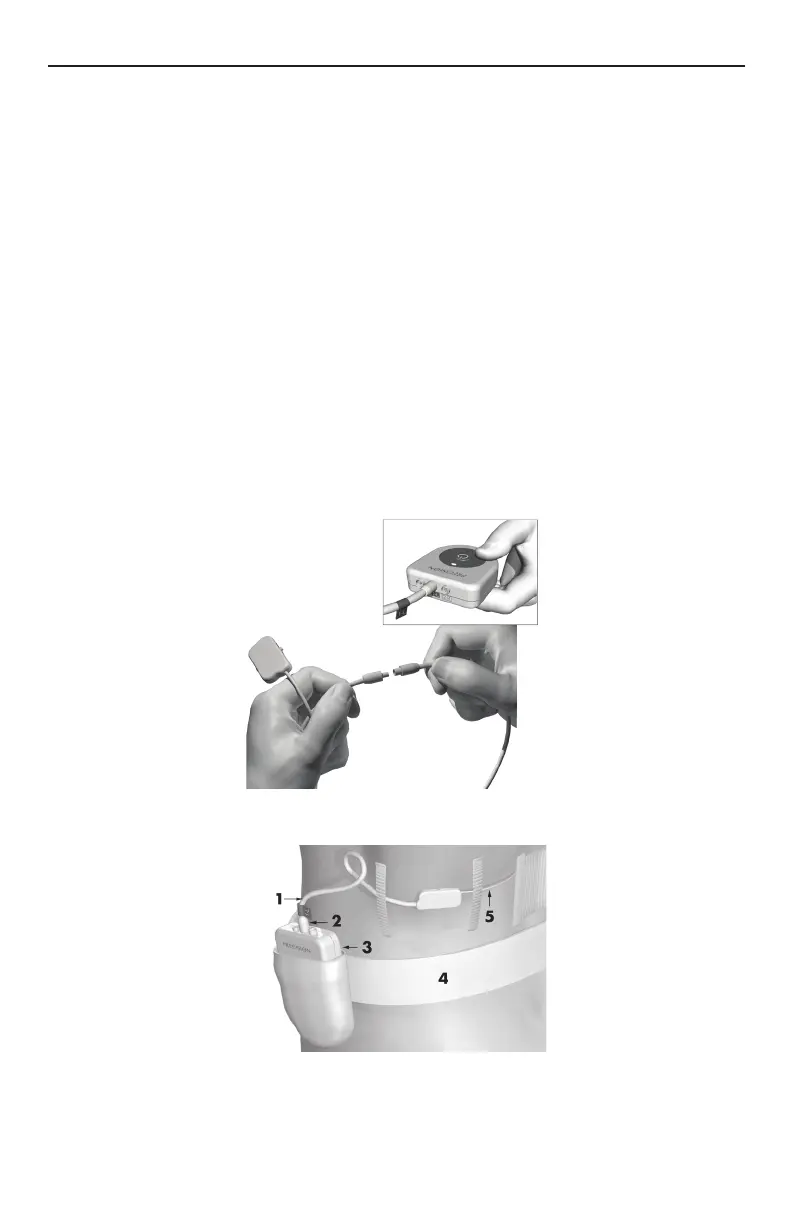

1. OR Cable 4. Trial Belt
2. OR Cable Connector 5. Lead or Extension
3. External Trial Stimulator (ETS)
