Connecting to the IPG
Clinician Manual
97035873-01 43 of 75

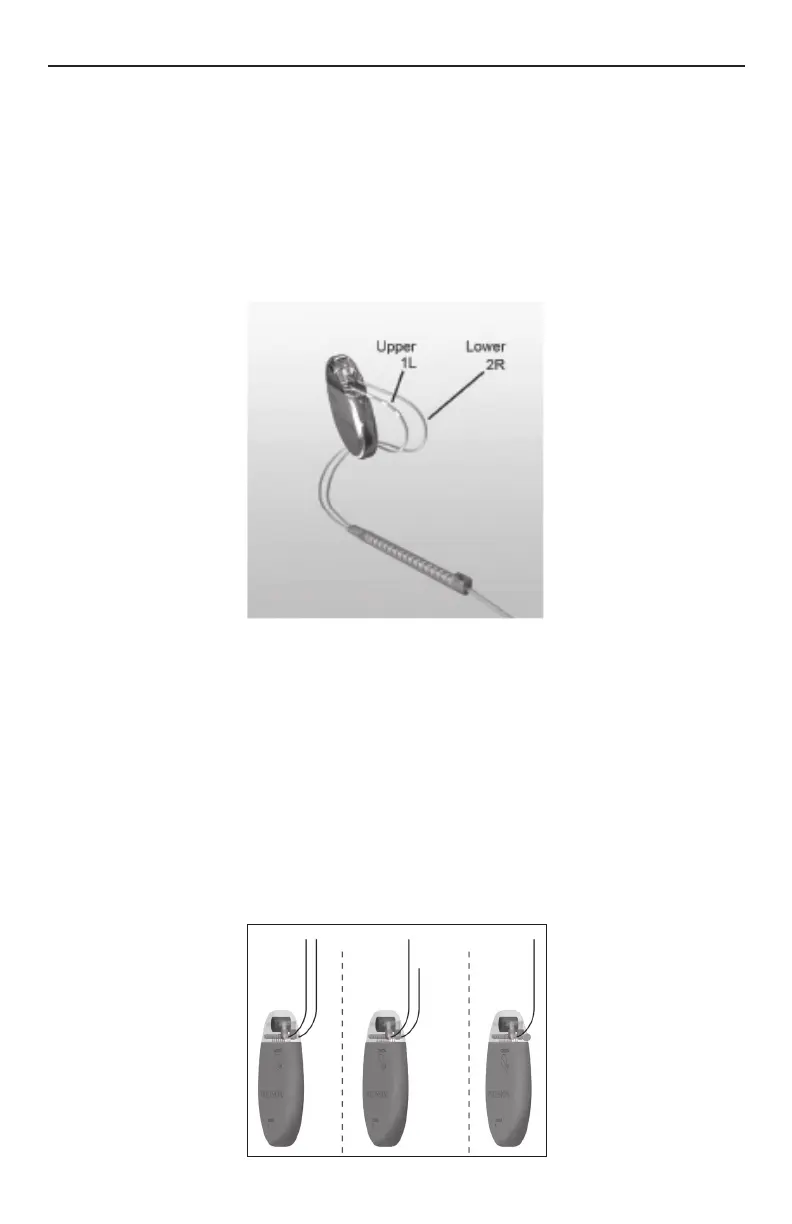

Connecting to the IPG
For Percutaneous Lead - Dual Lead Connection
• Superior (upper or left) leads, extensions, or 2x4 Splitters connect to IPG port “1-L”.
• Inferior (lower or right) leads, extensions, or 2x4 Splitters connect to IPG port “2-R”.
For Innion™ 16 Lead Connection
• Laser-marked tail of Splitter 2x8 connects to IPG port “1-L”.
• Unmarked tail of Splitter 2x8 connects to IPG port “2-R”
For Innion CX Lead Connection
• Proximal tail with one marker band connects to IPG port “1-L”.
• Proximal tail with two marker bands connects to IPG port “2-R”.
For Percutaneous Lead - Single Lead Connection
• Connect a single lead, extension, or 2x4 Splitter to IPG port “1-L”.
• Insert port plug into unused port.
For Surgical Paddle Lead Connection
• Left side of lead connects to IPG port “1-L”.
• Right side of lead connects to IPG port “2-R”.
Note: The right tail of the Paddle Lead is laser-etched to allow for easy identication of right and left.
LowerRightLeft Upper Single
2R2R1L 1L 1L
