Precision™ Spinal Cord Stimulator System Clinician Manual
Clinician Manual
97035873-01 44 of 75

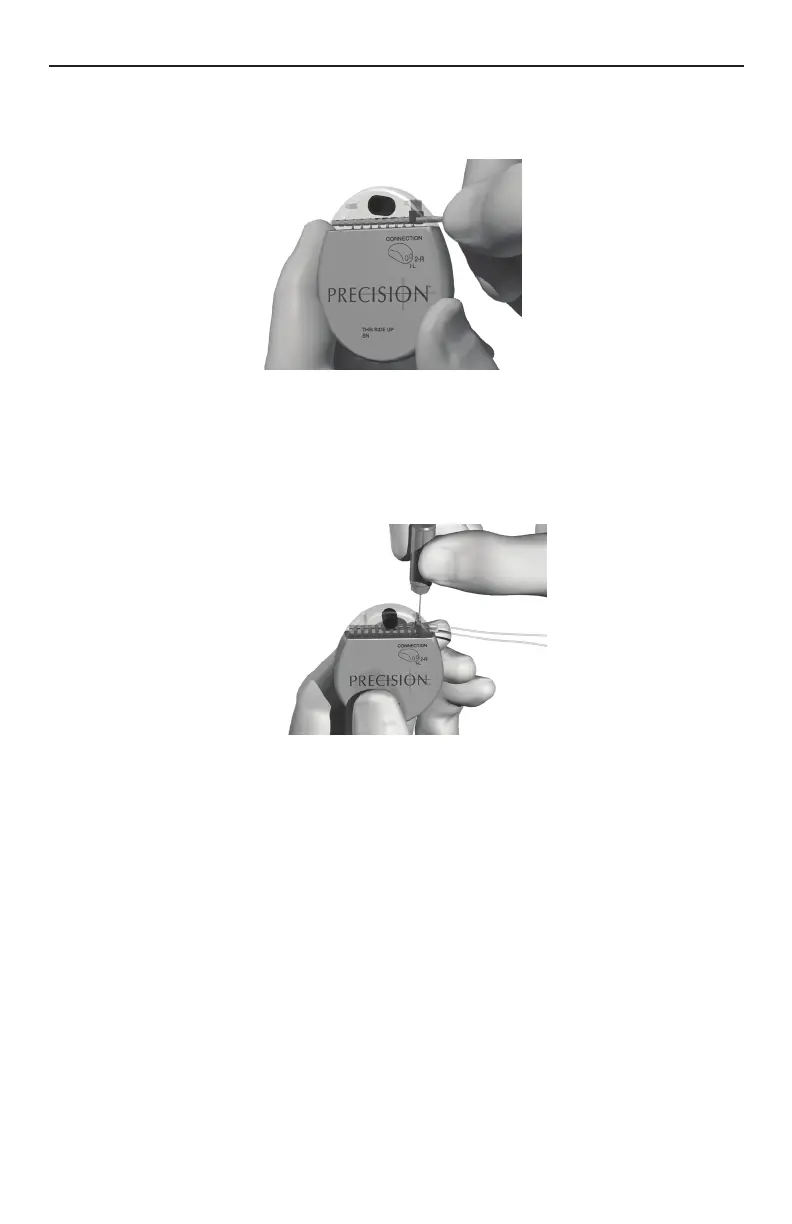

1. Fully insert the lead(s), extension(s), or splitters into the IPG port(s), being careful not to stress or bend
the proximal end of the lead or extension. When the lead is properly inserted, the lead will stop and the
retention ring will be located under the setscrew.
Note: If you experience difculty when inserting the lead, lead extension, or port plug, use the hex wrench to
loosen (counterclockwise) the setscrew and/or gently rotate the lead to help advance the proximal end.
Note: To conrm good connections, check impedances before tightening the setscrew.
2. Pass the hex wrench through the hole in the septum located on the top of the IPG header and tighten
each set screw until the hex wrench “clicks,” indicating lock.
CAUTION: Ensure that the lead is fully inserted before tightening the setscrew to prevent lead damage.
Note: • If a port plug is used, it is still necessary to tighten the setscrew on the port plug, as described
above.
• The hex wrench is torque-limited and cannot be overtightened.
3. Place the IPG in the subcutaneous pocket with label facing towards the skin.
4. Coil excess lead, extension, or splitter under the IPG.
CAUTION: Do not excessively bend the Splitter 2x8 receptacle. Bending the receptacle at a radius tighter
than 2" (5 cm) may result in loss of stimulation via one or more contacts. Ensure the correct lengths of
leads are selected to prevent excessive coiling.
5. Secure the IPG in the pocket by suturing through the holes in the IPG header.
CAUTION: Do not suture through leads or splitter.
6. Close and dress the wound(s).
