Rechargeable Stimulator System
Clinician Manual
97035873-01 49 of 75

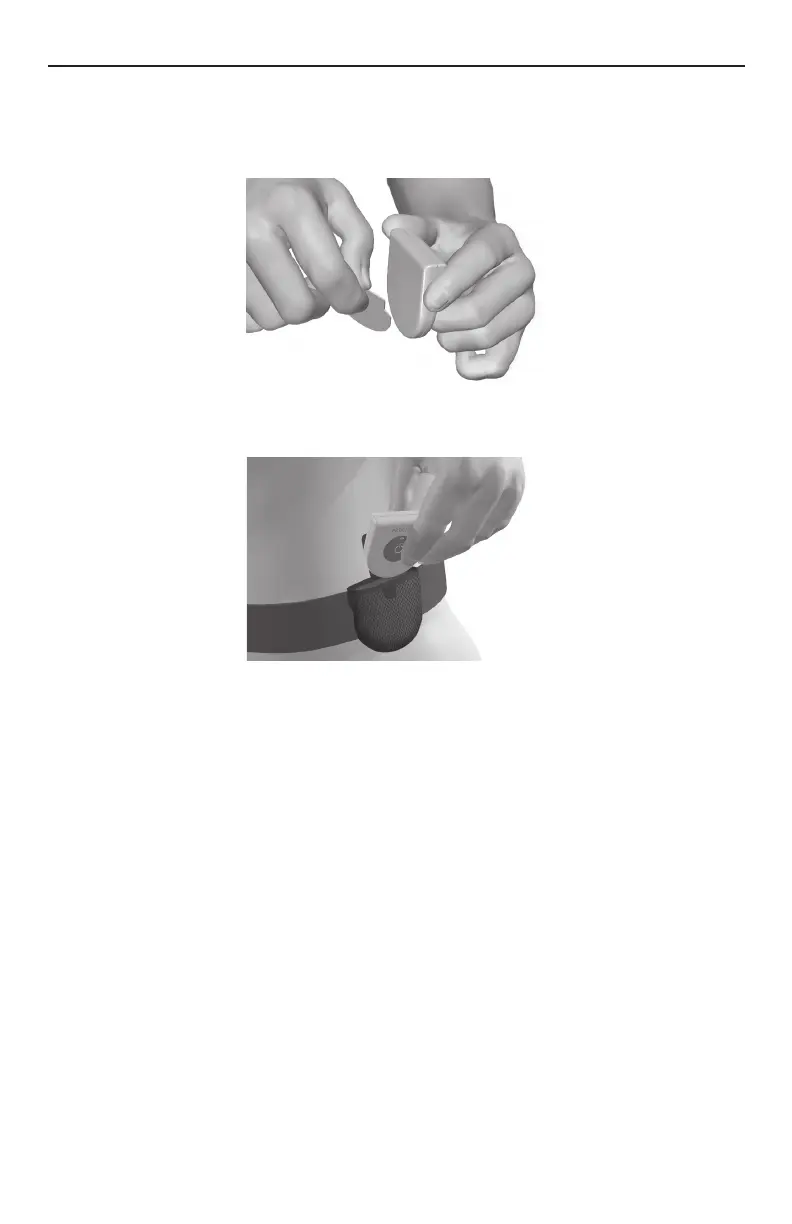

4. Secure the Charger over the Stimulator by using either an adhesive patch or the Charging Belt.
• Adhesive Patch: Remove the clear liner from the patch. Apply the white side with the blue stripe to
the back of the Charger. Then remove the beige liner from the patch. Secure the Charger over the
Stimulator by pressing the adhesive to the skin over the Stimulator (see diagram below).
• Charging Belt: Place the Charger into the pocket on the Charging Belt with the power button facing
out. Secure the Charger over the Stimulator by adjusting the Charging Belt (see diagram below).
Note: If you accidentally locate the patch in the wrong place, or if the Charging Belt moves out of alignment,
the Charger will start beeping again. Use a new adhesive patch or readjust the belt to place the
Charger back into position.
5. When the Charger emits a series of double beeps, the Stimulator is fully charged. Turn off the Charger,
remove the Charging Belt or adhesive patch, and return the Charger to the Base Station. Do not confuse
the end of charge signal (a series of double beeps) with the continuous beeps that indicate that the
Charger is searching for the Stimulator.
Note: • Depending on your program parameters, you may expect daily recharging times from as low as
10 minutes up to four hours, or weekly recharging times from as low as one hour up to four hours.
Charging times may be longer than 4 hours when not properly aligned.
• The end of a charge signal is a distinct double beep, and the alignment indicator is a steady
continuous signal.
• Remote will not be able to communicate with the IPG when charging.
