Botex DC-2448 - Rear Panel Connections

9 / 30

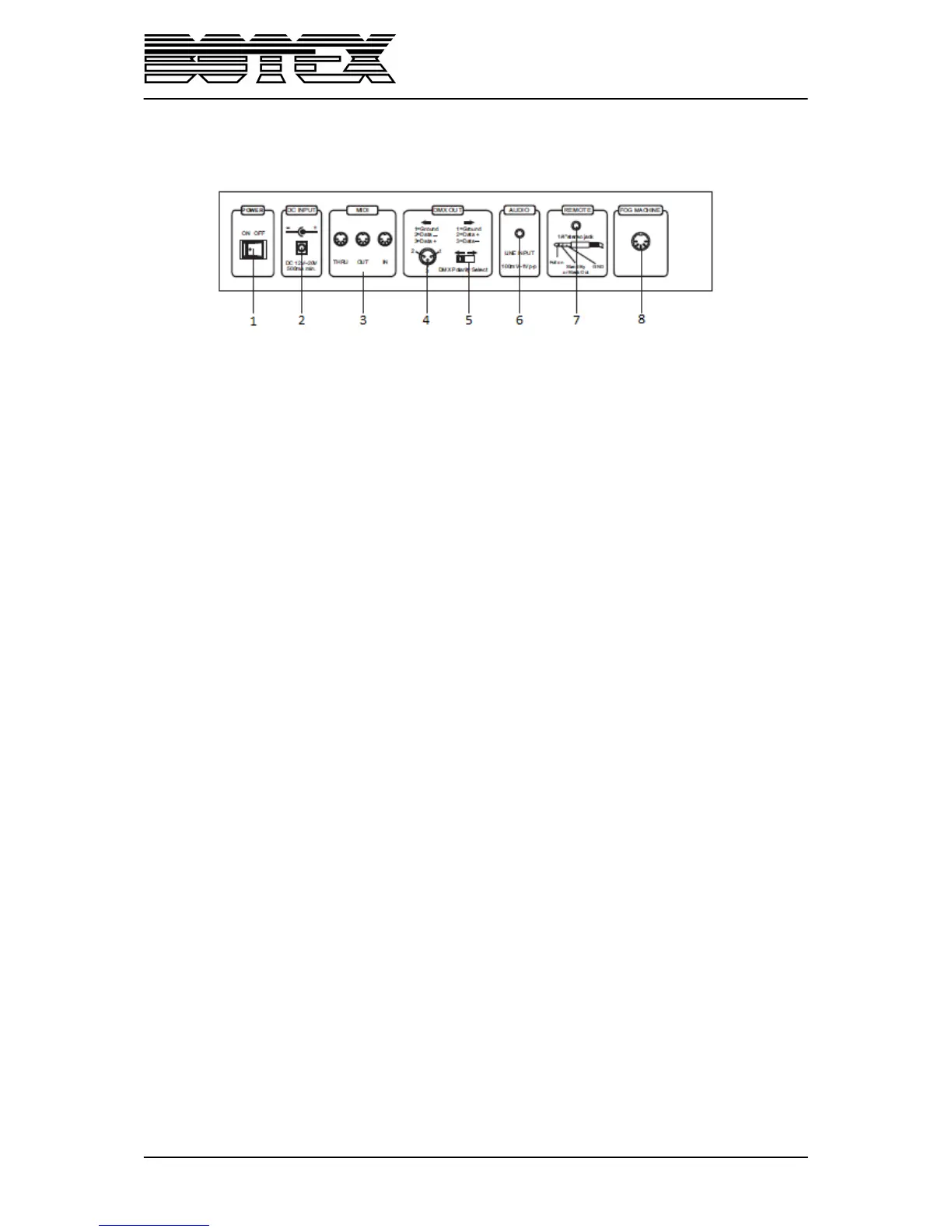

3.2. Rear view
1. POWER Switch
2. DC Input
DC 12-20V, 500 mA Min
3. MIDI THRU/OUT/IN
„MIDI ports are for connection to a sequencer or MIDI device.
4. DMX Out
5. Non-existent
6. AUDIO Input
This jack accepts a line level audio input signal ranged from 100mV to 1 Vpp.
7. REMOTE Input
„Black Out“and „Full on“may be controlled by a remote control using a ¼“stereo jack.
8. FOG MACHINE Connector
This is a connection to an outside fog machine.
