CUT, BLEND, AND COAG CONTROLS

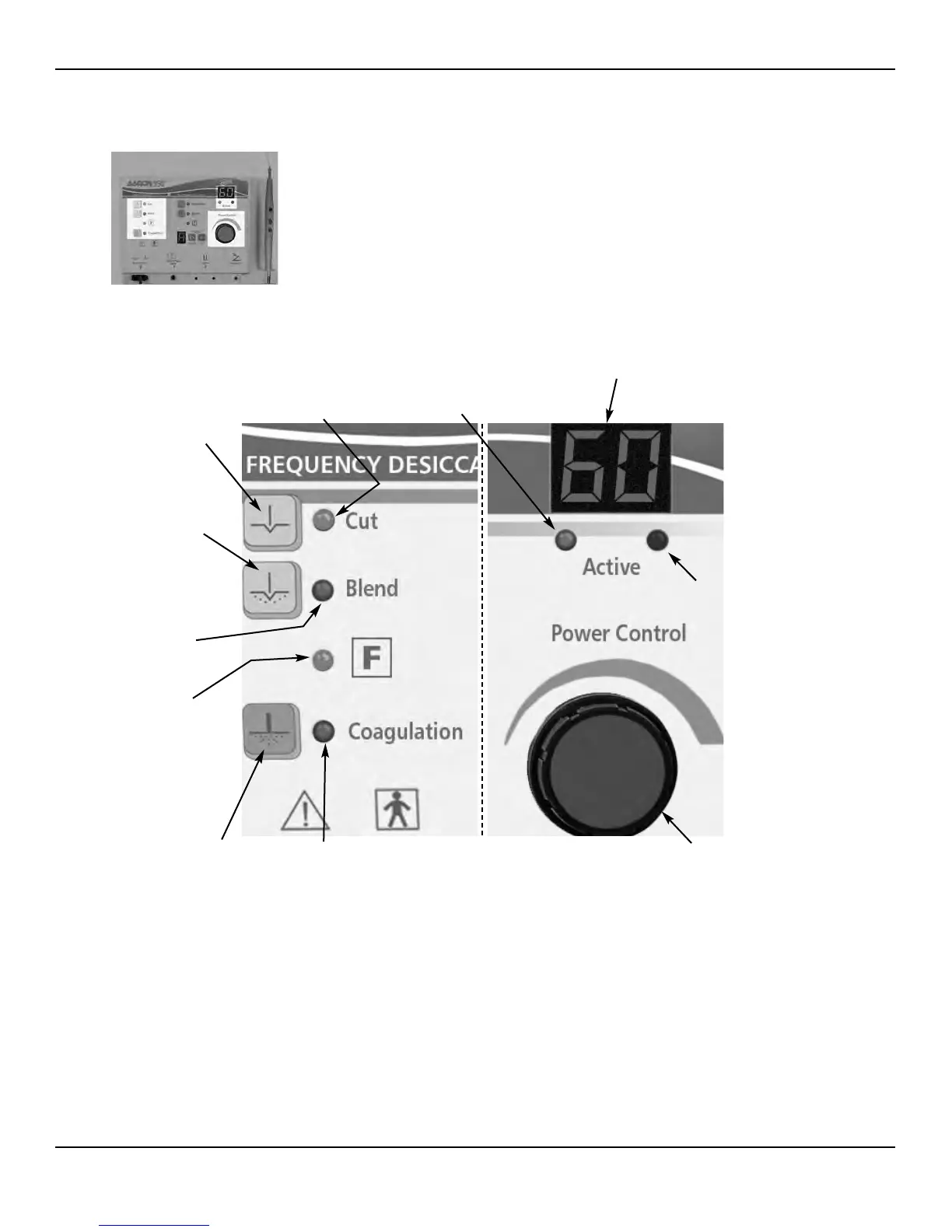

Figure 2 – 2 Controls for the cut, blend, and coag modes
2-4 Bovie Medical Corporation
Power Display (watts)
Indicates the power set for the
selected mode.
Cut, Blend Active Indicator
Indicates that the power
has been activated in the selected
mode.
Cut Indicator
Indicates when pure
cut mode is selected.
Cut Mode Selector
When pressed, selects
the pure cut mode.
Blend Mode Selector
When pressed, selects
the blended cut mode.
Blend Indicator
Indicates when blended
cut mode is
selected.
Coag Mode Selector
When pressed, selects the
coagulation mode.
RF Isolated Indicator
Indicates when the
RF output is isolated from
the ground.
Coag Indicator
Indicates when
coagulation mode is
selected.
Coag, Fulguration, Bipolar Active
Indicator
Indicates that the power has been
activated in the selected mode.
Power Output
Control Knob
Turn clockwise to increase
power output, counterclock-
wise to decrease power
output.
