Monopolar Coag Curves
These measurements were taken using short (< 0.5 meter) leads.

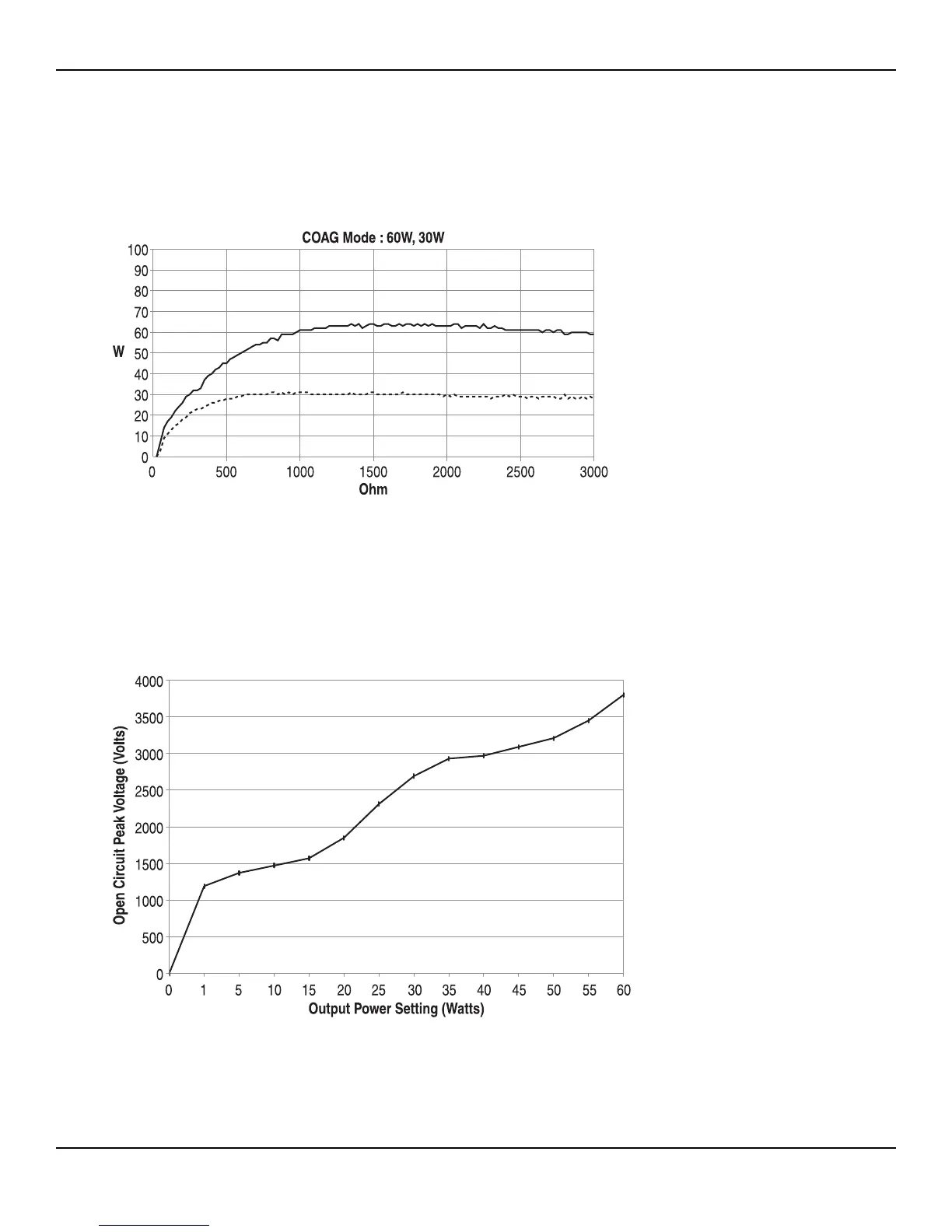

Figure A – 5 Output power versus impedance for coagulation mode
Figure A – 6 Peak voltage versus power setting for coagulation mode
A-11User’s Guide • Aaron 950™
