Routine Service and Maintenance
4.5
5. Inspect the radiator to make sure that the air ow is not blocked. The fan located
on engine side of radiator unit is a suction fan, which draws air from inside the
machine. Check the engine side of the radiator (Figure 4–5) to make sure that
debris has not been sucked against the radiator blocking air ow.
NOTE: Some items in Figure 4–5 have been removed for clarity.
6. Release dirt from separator tube at the bottom of the air lter by squeezing the
rubber dust ejector valve (Item 1, Figure 4–6) underneath the air lter.

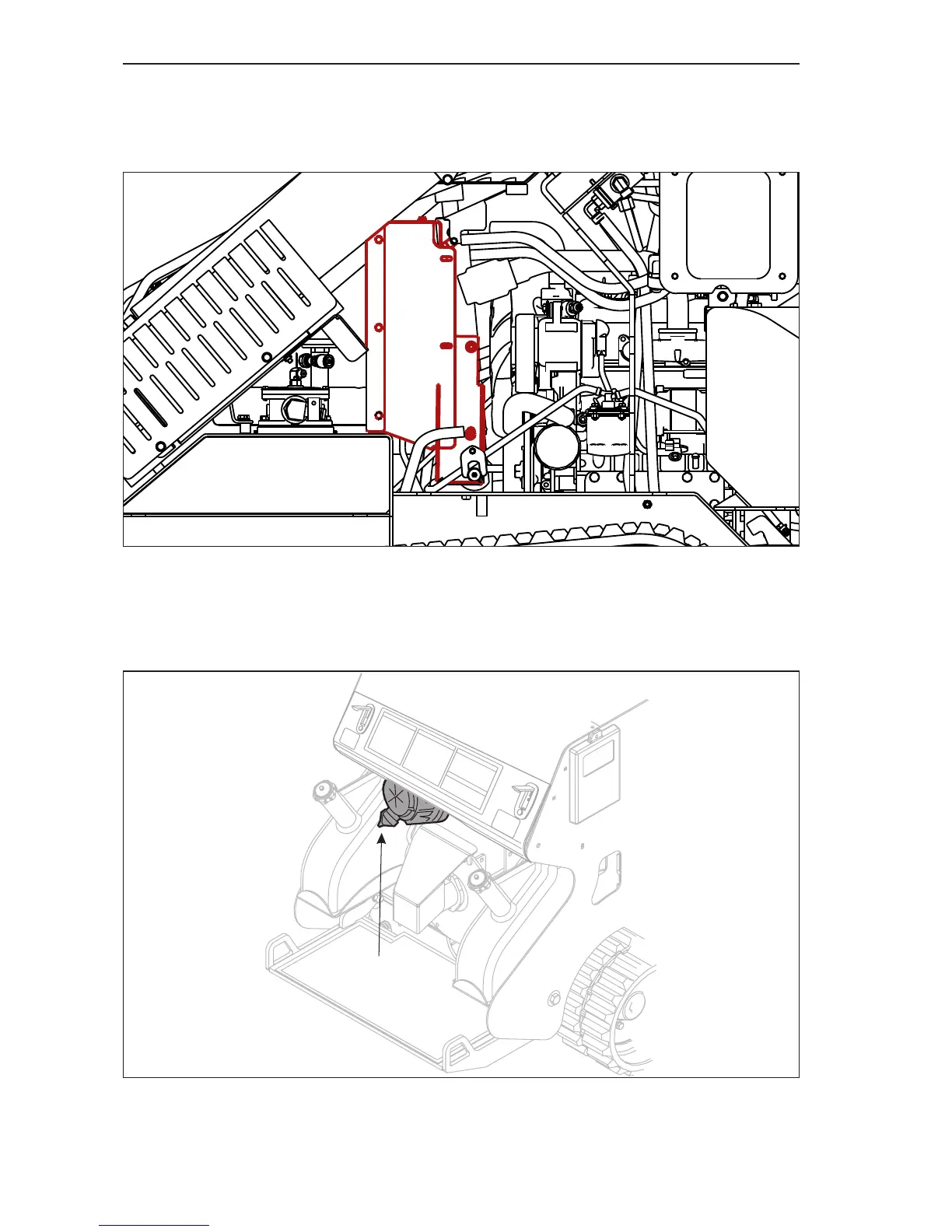

Figure 4-6 Air Filter Dirt Release
Figure 4-5 Radiator Air Flow Inspection
1
