7 Wheel change
Wheel disassembly
[1] Detach valve hose (825, 826, 827, depending on
tyre) from rotor (811 or 811a).
[2] Detach valve hose from tyre valve.
Note:
For quicker and easier assembly, it is
advisable to mark the position of the
rim on the wheel hub and recreate this
during assembly.
[3] Changing wheels.

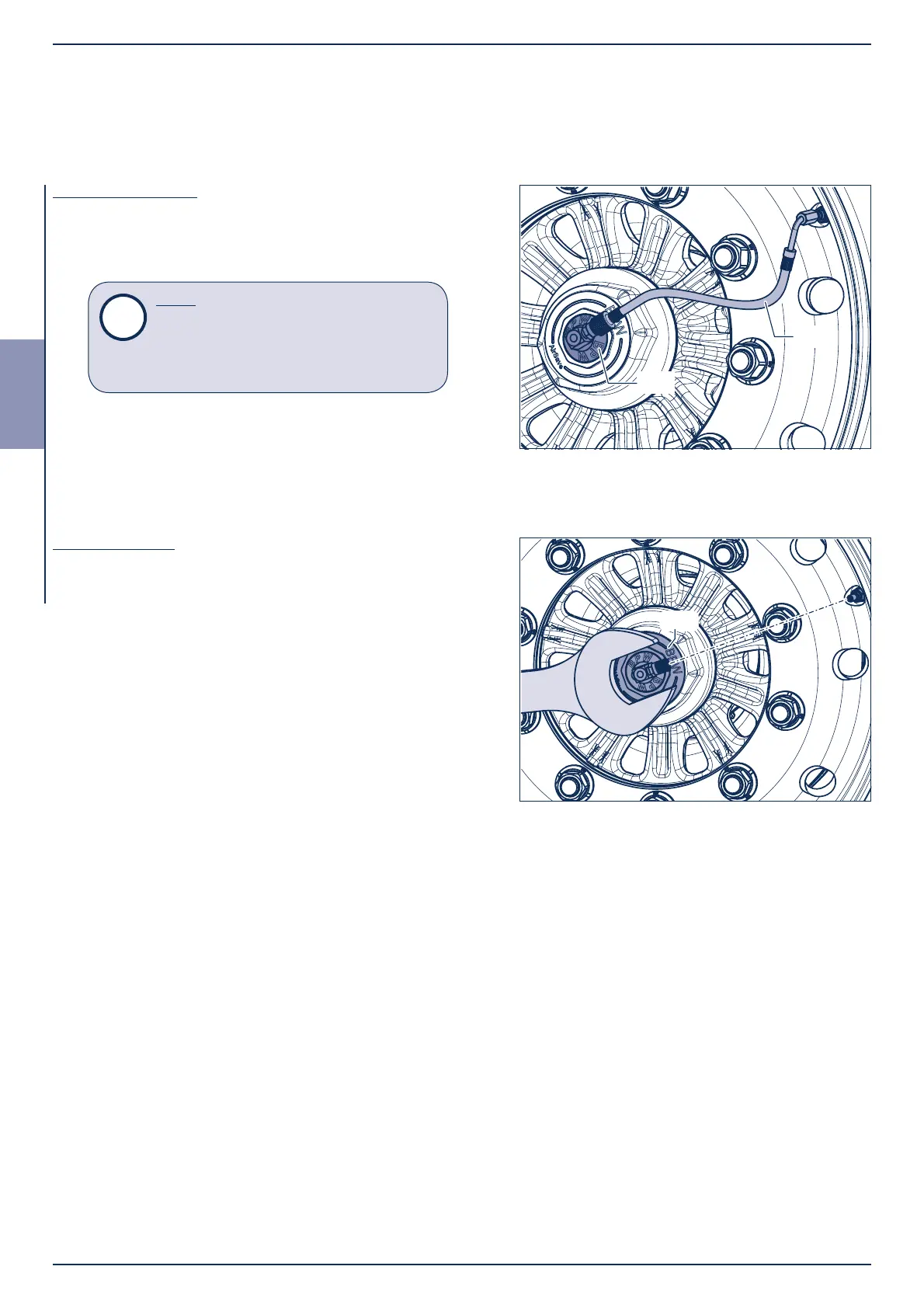

Figure 24
Figure 25
Wheel assembly
[4] Turn the hub cap adapter (817) using a spanner
(SW 55) or spring pliers until the screwed joint on
the rotor is pointing towards the tyre valve (requi-
red only if the position of the rim on the wheel hub
has changed).
[5] Attach valve hose (825, 826 or 827, depending
on tyre) to the tyre valve, use a valve extension if
necessary.
[6] Hand-tighten the union nut (SW 11) on the valve
hose and then tighten a further half-turn using a
spanner.
[7] Check that the air can penetrate by pushing the
valve needle in the valve hose.
[8] Hand-tighten the valve hose on the AirSave rotor
(811 or 811a).
[9] Check the valve hose and the connections for
untightness.
