ENGLISH 41 / 41CHAP.7 – USE OF THE INSTRUMENT
gs-200
7.1.4 LEAK TEST
Access the main menu of the EXHAUST GAS ANALYZER, press F6 "CONTROLS" and
then F5 "LEAK TEST"

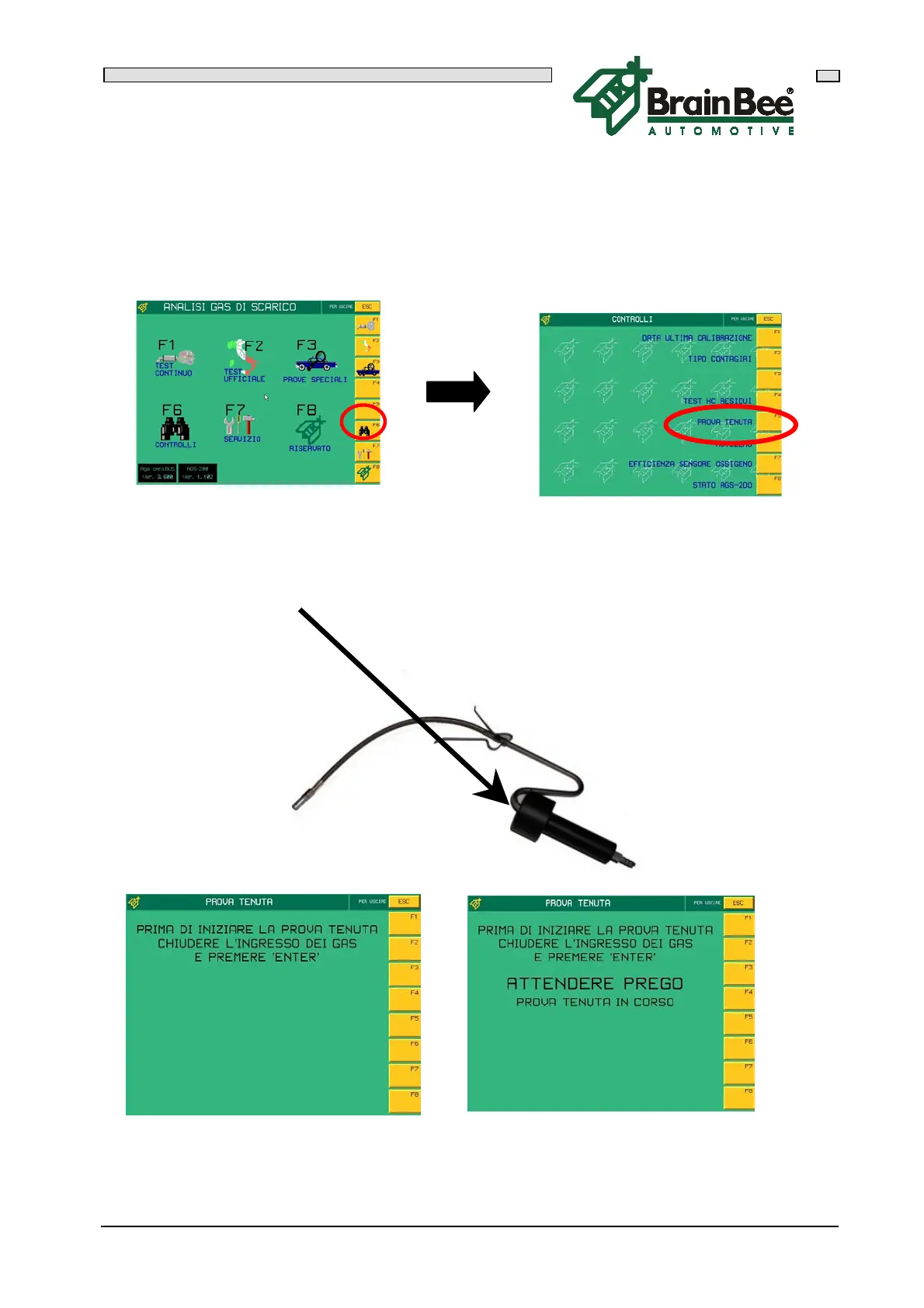

The following mask will appear with instructions on how to carry out the leak test.
Fit the probe tube into the relative housing as shown in the figure.
If the result of the leak test is positive, the analysis program will proceed in the normal
way, failing this a message will appear to indicate that the test has not been successful.
