ES Range Product Manual

Version 2.9

Page 16 of 66

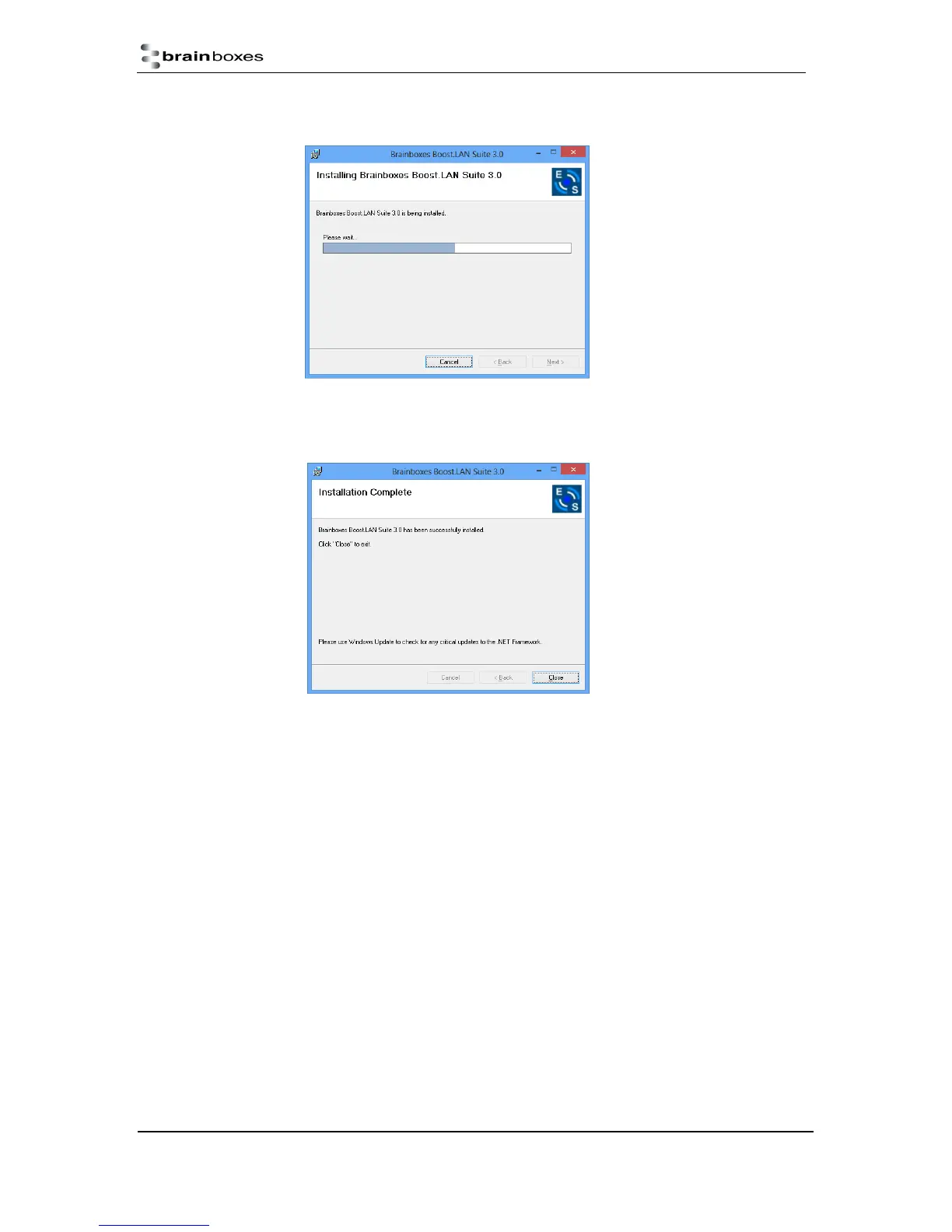

7. The software will now begin to install.

8. After the installation has finished, you will now see the below window. Click close.
