System Component Description
Digital Sonifier
4.3.2 Optional Items
A complete list of optional items is provided in Appendix C of this Guide.
• Printer: Epson FX-compatible dot-matrix printer with a parallel-port interface
with a DB25M cable connector only.
• Remote Terminal or Computer: Any user-provided computer or terminal that
allows ASCII data to be transferred over an RS-232 serial interface. The pin-out
of the serial connector is listed in ’Remote Terminal Connection’ on page 4-14.
The computer interface, software and setup are for the reader to determine.
• Temperature Probe: Omega Technologies model #OL-703-PP, 0.125 inches in
diameter and 4.5 inches in length. This item is sold separately by Branson.
Refer to the
Appendix B, Optional Items Parts List
, for information about specific parts needed
for the optional items.
4.3.3 Accessories
Disruptor horns, various horn tips, and a variety of chambers or vessels for batch or continu-
ous processing are available for use with Branson Digital Sonifiers. For a list of Accessories,
refer to
Appendix C, Accessories Parts List
.
Microtips
Particularly useful for processing small volumes, microtips are available in several designs,
tapered and stepped, to meet y our application requirements. A Coupling Section may be used
with a microtip horn for certain applications.

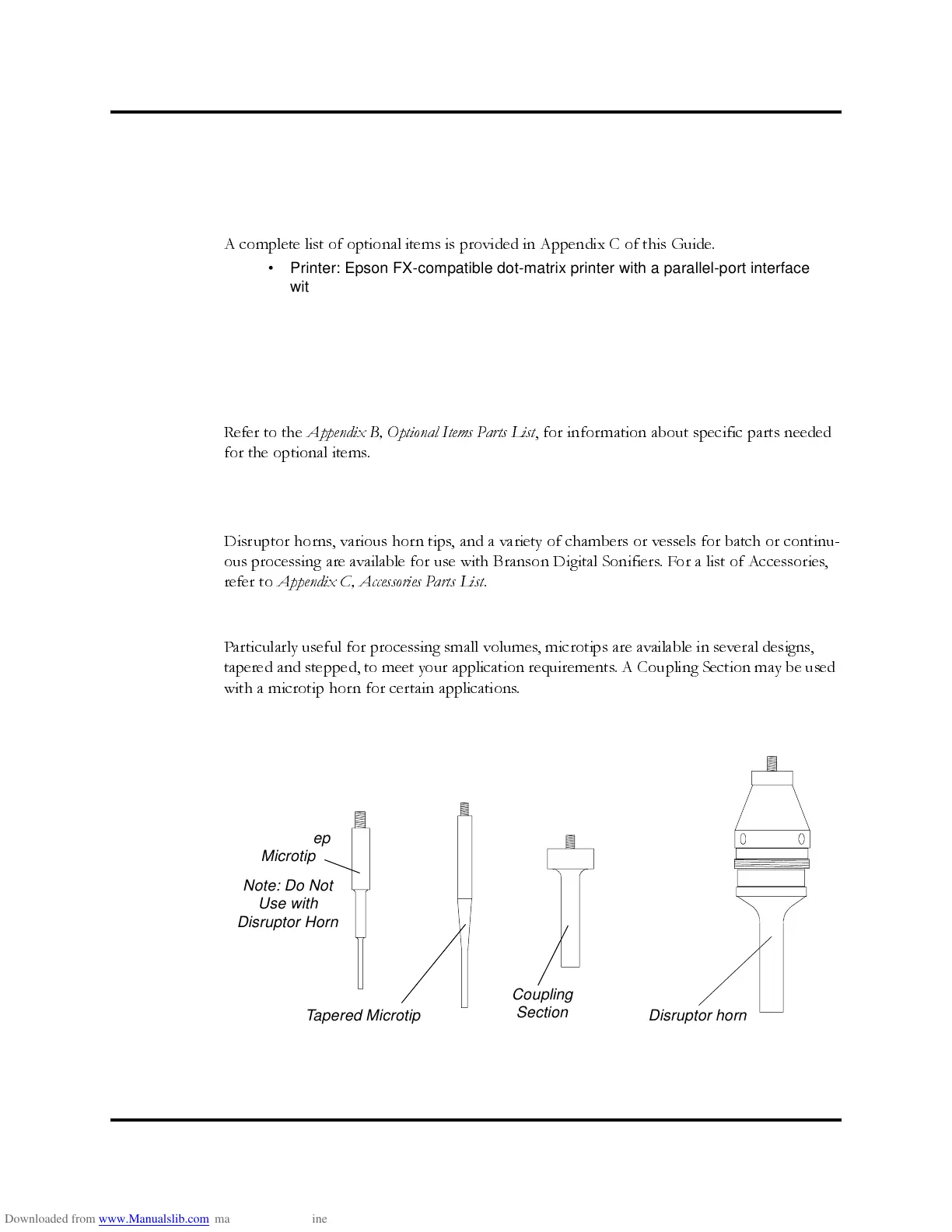

Microtips, Coupling Section and Disruptor Horn
Double Step
Tapered Microtip
Coupling
Section
Microtip
Disruptor horn
Note: Do Not
Use with
Disruptor Horn
