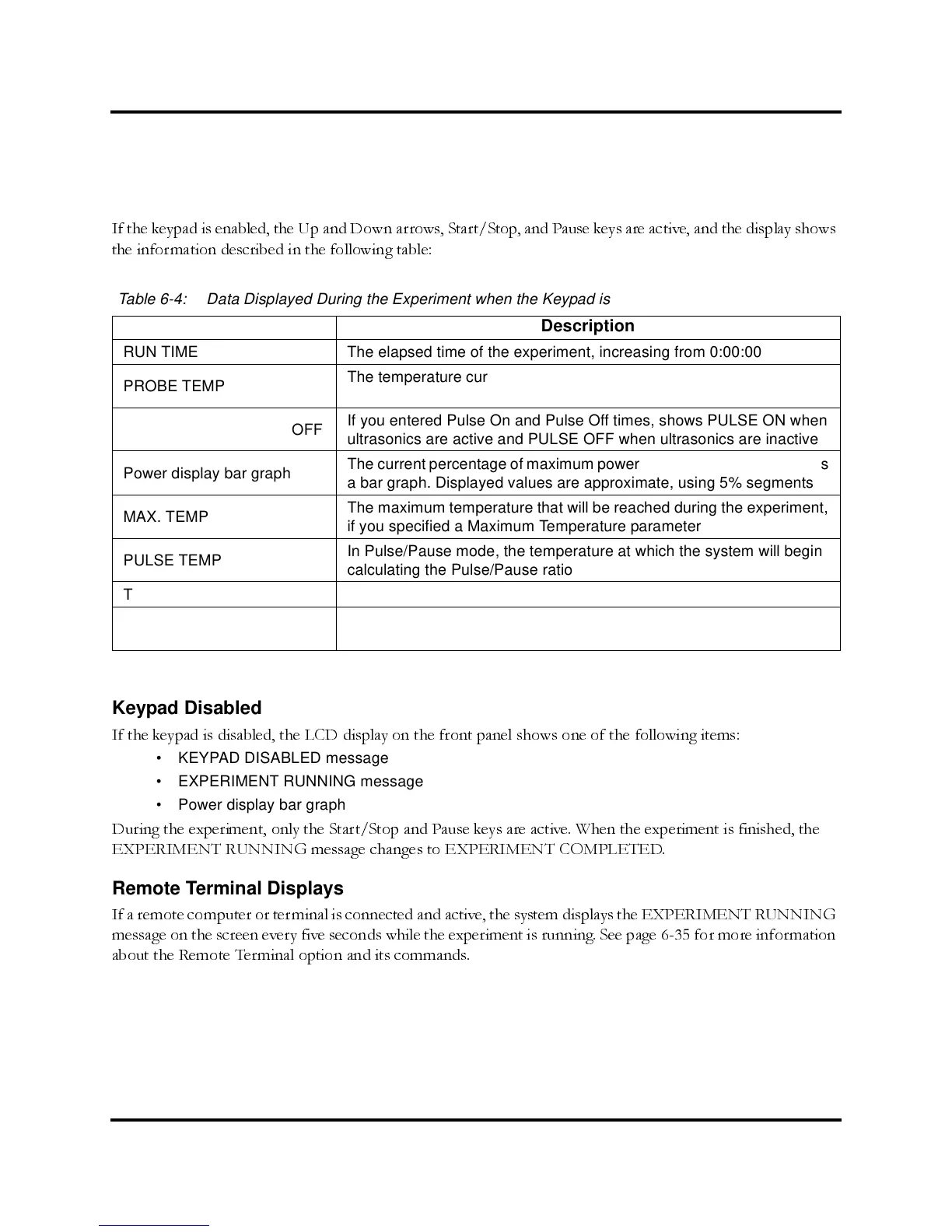

100-214-239 Rev. A 6-43
Displays During the Experiment
Digital Sonifier
Keypad Enabled
If the keypad is enabled, the Up and Down arrows, Start/Stop, and Pause keys are active, and the display shows
the information described in the following table:
Keypad Disabled
If the keypad is disabled, the LCD display on the front panel shows one of the following items:
• KEYPAD DISABLED message
• EXPERIMENT RUNNING message
• Power display bar graph
During the experiment, only the Start/Stop and Pause keys are active. When the experiment is finished, the
EXPERIMENT RUNNING message changes to EXPERIMENT COMPLETED.
Remote Terminal Displays
If a remote computer or terminal is connected and active, the system displays the EXPERIMENT RUNNING
message on the screen every five seconds while the experiment is running. See page 6-35 for more information
about the Remote Terminal option and its commands.
Table 6-4: Data Displayed During the Experiment when the Keypad is Enabled
Display Description
RUN TIME The elapsed time of the experiment, increasing from 0:00:00
PROBE TEMP
The temperature currently being read by the temperature probe, if one
is connected
PULSE ON and PULSE OFF
If you entered Pulse On and Pulse Off times, shows PULSE ON when
ultrasonics are active and PULSE OFF when ultrasonics are inactive
Power display bar graph
The current percentage of maximum power being used, represented as
a bar graph. Displayed values are approximate, using 5% segments
MAX. TEMP
The maximum temperature that will be reached during the experiment,
if you specified a Maximum Temperature parameter
PULSE TEMP
In Pulse/Pause mode, the temperature at which the system will begin
calculating the Pulse/Pause ratio
TIME The time limit for the experiment, if one was entered
POWER
The power, in watts, being consumed by the Horn at any moment. Dur-
ing a PULSE OFF period, the power goes to zero
