6-42 100-214-239 Rev. A
Operation

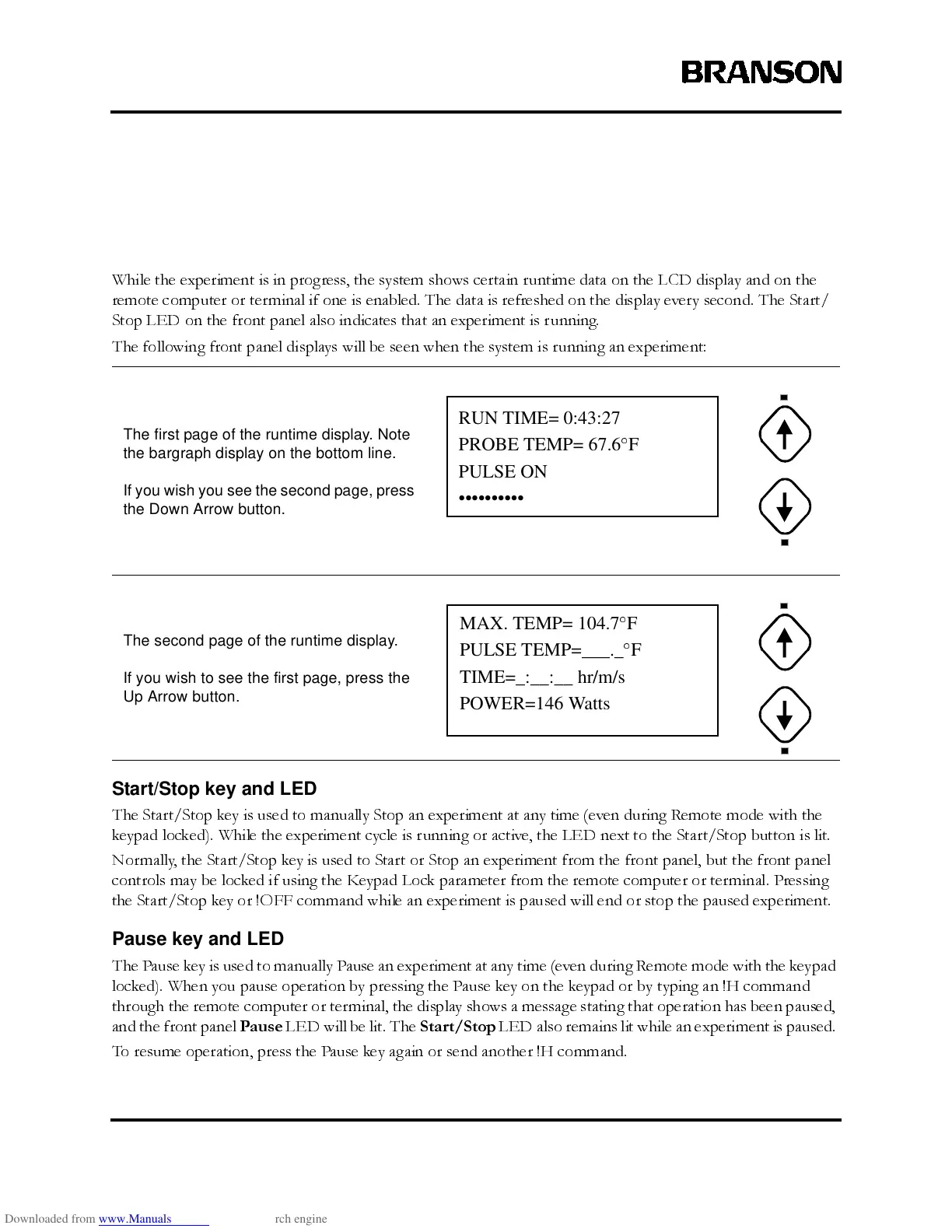

6.8 Displays During the Experiment
Runtime Displays
While the experiment is in progress, the system shows certain runtime data on the LCD display and on the
remote computer or terminal if one is enabled. The data is refreshed on the display every second. The Start/
Stop LED on the front panel also indicates that an experiment is running.
The following front panel displays will be seen when the system is running an experiment:
Start/Stop key and LED
The Start/Stop key is used to manually Stop an experiment at any time (even during Remote mode with the
keypad locked). While the experiment cycle is running or active, the LED next to the Start/Stop button is lit.
Normally, the Start/Stop key is used to Start or Stop an experiment from the front panel, but the front panel
controls may be locked if using the Keypad Lock parameter from the remote computer or terminal. Pressing
the Start/Stop key or !OFF command while an experiment is paused will end or stop the paused experiment.
Pause key and LED
The Pause key is used to manually Pause an experiment at any time (even during Remote mode with the keypad
locked). When you pause operation by pressing the Pause key on the keypad or by typing an !H command
through the remote computer or terminal, the display shows a message stating that operation has been paused,
and the front panel
Pause
LED will be lit. The
Start/Stop
LED also remains lit while an experiment is paused.
To resume operation, press the Pause key again or send another !H command.
The first page of the runtime display. Note
the bargraph display on the bottom line.
If you wish you see the second page, press
the Down Arrow button.
The second page of the runtime display.
If you wish to see the first page, press the
Up Arrow button.
RUN TIME= 0:43:27
PROBE TEMP= 67.6
°
F
PULSE ON
••••••••••
MAX. TEMP= 104.7
°
F
PULSE TEMP=___._
°
F
TIME=_:__:__ hr/m/s
POWER=146 Watts
To Next Page
