4-2 100-214-239 Rev. A
Installation and Setup

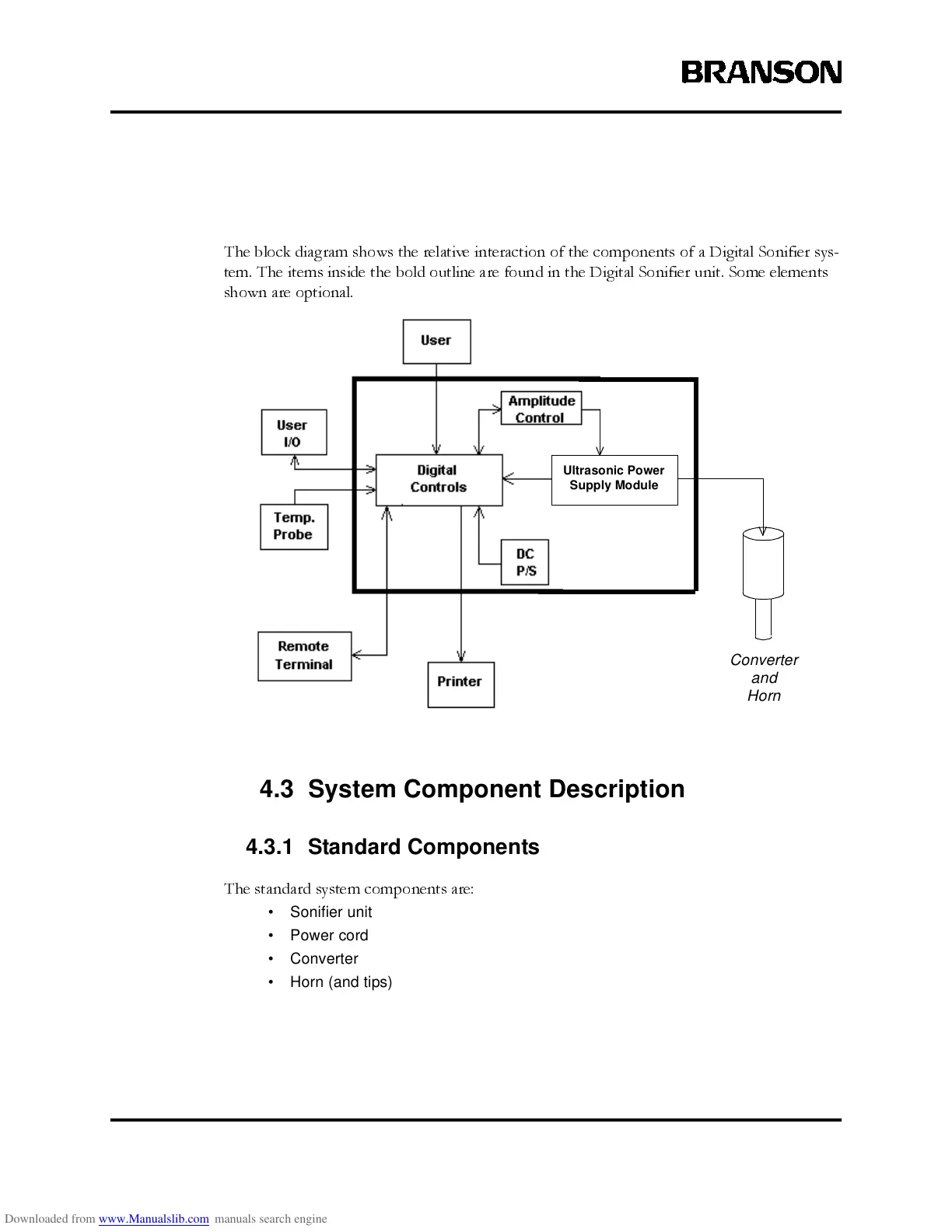

4.2 System Block Diagram
The block diagram shows the relative interaction of the components of a Digital Sonifier sys-
tem. The items inside the bold outline are found in the Digital Sonifier unit. Some elements
shown are optional.
4.3 System Component Description
4.3.1 Standard Components
The standard system components are:
• Sonifier unit
• Power cord
• Converter
• Horn (and tips)
Con-
Ultrasonic Power
Supply Module
Converter
and
Horn
