4-6 100-214-239 Rev. A
Installation and Setup

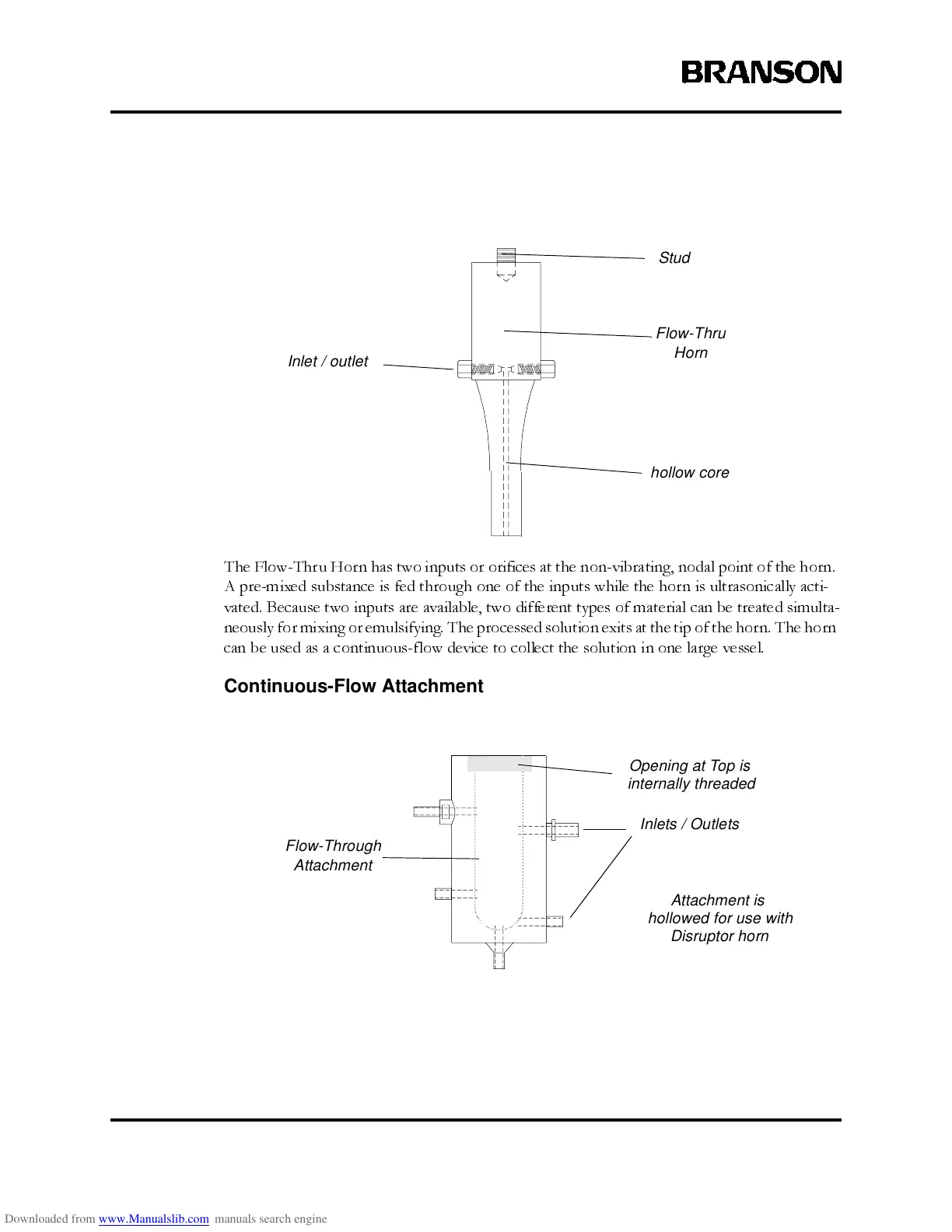

Flow-Thru Horn
The Flow-Thru Horn has two inputs or orifices at the non-vibrating, nodal point of the horn.
A pre-mixed substance is fed through one of the inputs while the horn is ultrasonically acti-
vated. Because two inputs are available, two different types of material can be treated simulta-
neously for mixing or emulsifying. The processed solution exits at the tip of the horn. The horn
can be used as a continuous-flow device to collect the solution in one large vessel.
Continuous-Flow Attachment
Flow-Thru
Horn
Inlet / outlet
hollow core
Stud
Inlets / Outlets
Flow-Through
Attachment
Opening at Top is
internally threaded
Attachment is
hollowed for use with
Disruptor horn
