4-8 100-214-239 Rev. A
Installation and Setup

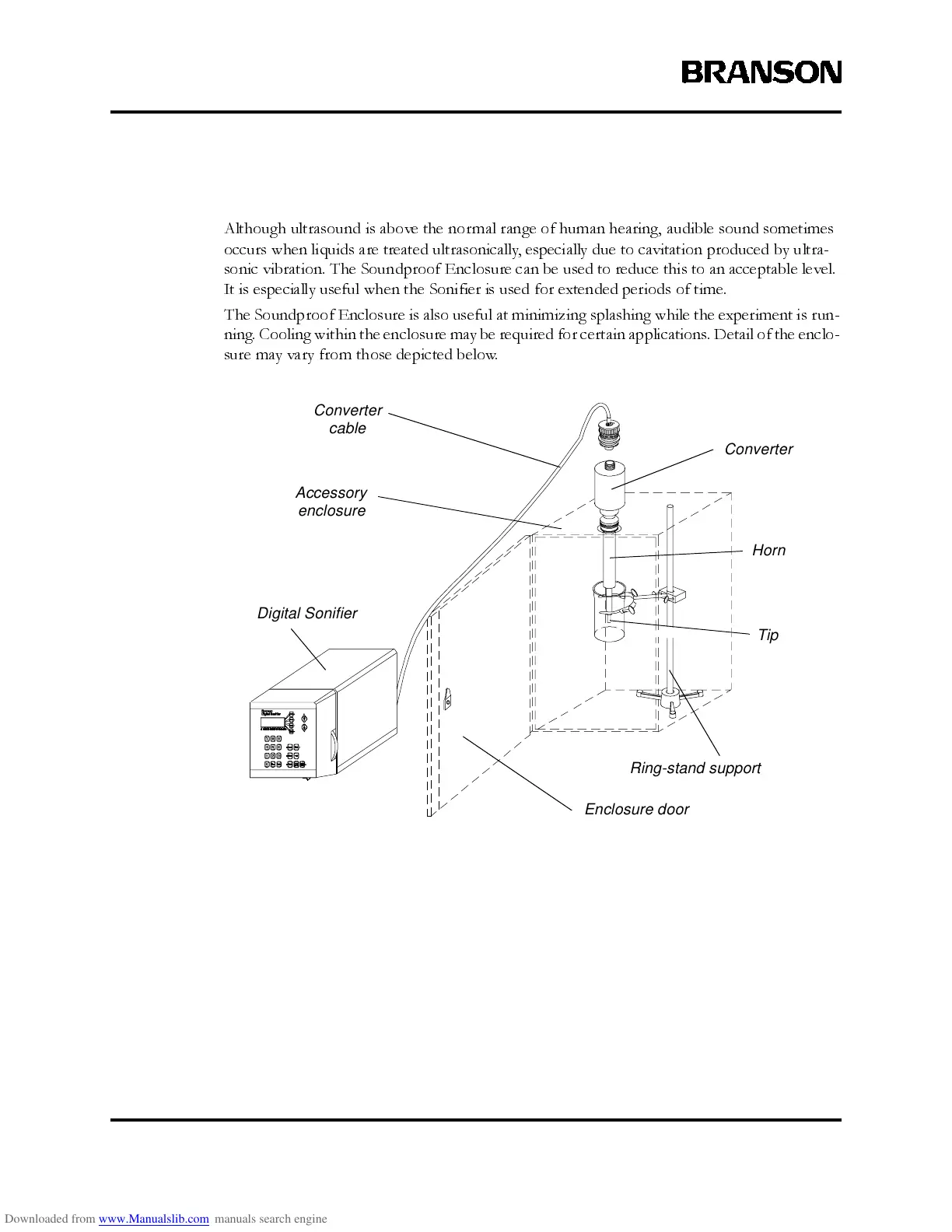

Soundproof Enclosure
Although ultrasound is above the normal range of human hearing, audible sound sometimes
occurs when liquids are treated ultrasonically, especially due to cavitation produced by ultra-
sonic vibration. The Soundproof Enclosure can be used to reduce this to an acceptable level.
It is especially useful when the Sonifier is used for extended periods of time.
The Soundproof Enclosure is also useful at minimizing splashing while the experiment is run-
ning. Cooling within the enclosure may be required for certain applications. Detail of the enclo-
sure may vary from those depicted below.
Converter
Horn
Tip
Accessory
enclosure
Converter
cable
Enclosure door
Ring-stand support
Digital Sonifier
