4-12 100-214-239 Rev. A
Installation and Setup
4.4.3 Horn Amplitudes

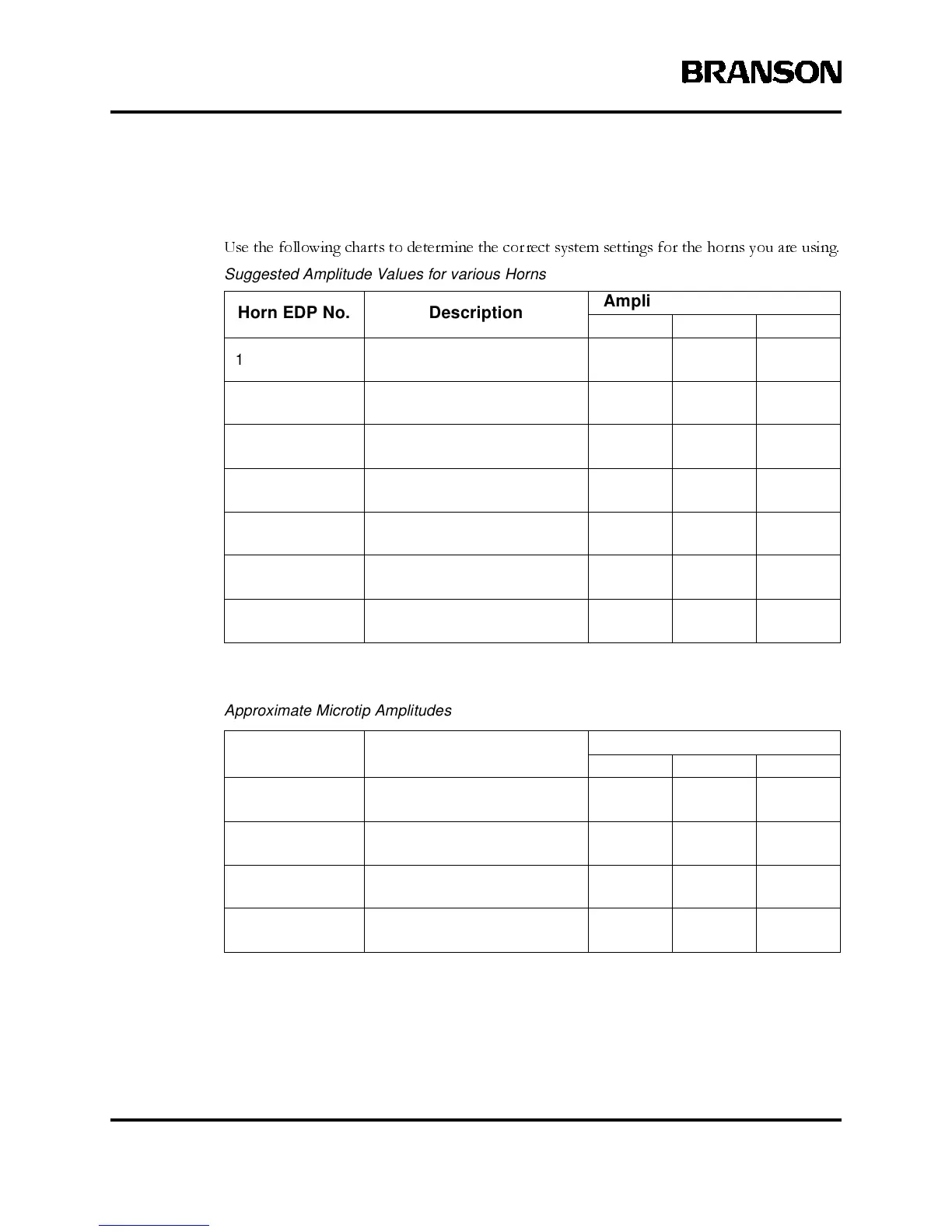

Use the following c harts to determine the correct system settings for the horns you are using.
Approximate Microtip Amplitudes
Suggested Amplitude Values for various Horns
Horn EDP No. Description
Amplitude Control Settings
10% 50% 100%
101-147-037
1/2" Diameter Tapped
Stepped Disruptor
21.0*
0.0008"
76.0*
0.0029"
145.0*
0.0057"
101-147-042
1/2" Diameter Solid
Catenoidal Disruptor
21.0*
0.0008"
76.0*
0.0029"
145.0*
0.0057"
101-147-041
1/2" Diameter Solid
Exponential Disruptor
10.0*
0.0004"
34.0*
0.0013
65.0*
0.0026”
101-147-039
3/8" Diameter Solid Stepped
Disruptor
36.0*
0.0014"
125.0*
0.0049"
240.0*
0.0094”
101-147-043
3/4” Diameter Solid Stepped
Disruptor
9.5*
0.0004”
33.0*
0.0013”
63.0*
0.0025”
101-147-035
3/4” Diameter Solid High Gain
Disruptor
19.0*
0.0007”
68.5*
0.0027”
130.0*
0.0051”
101-147-044
1.0” Diameter Solid Stepped
Disruptor
6.3*
0.0002”
21.5*
0.0008”
40.5*
0.0016”
* All measurements in microns unless otherwise specified
Horn EDP No. Description
Amplitude Control Settings
10% 40% 70%
101-148-062 1/8” Diameter Tapered
116.0*
0.0046”
306.0*
0.0122”
494.0*
0.0194”
101-148-069 3/16” Diameter Tapered
59.5*
0.0023
183.0*
0.0072”
302.0*
0.0119”
101-148-070 1/4” Diameter Tapered
59.5*
0.0023”
151.0*
0.0059
247.0*
0.0097”
101-063-212 Double Step
64.0*
0.0025”
173.8*
0.0068”
274.0*
0.0108”
* All measurements in microns unless otherwise specified
