7. Fit the shims (A) . Tighten the retaining bolt(s) (B) with the specified torque.
See also
In order to determine the correct number of shims for your specific application Refer to "Shims
specifications" on page 85.
Refer to "Torque figures" on page 85

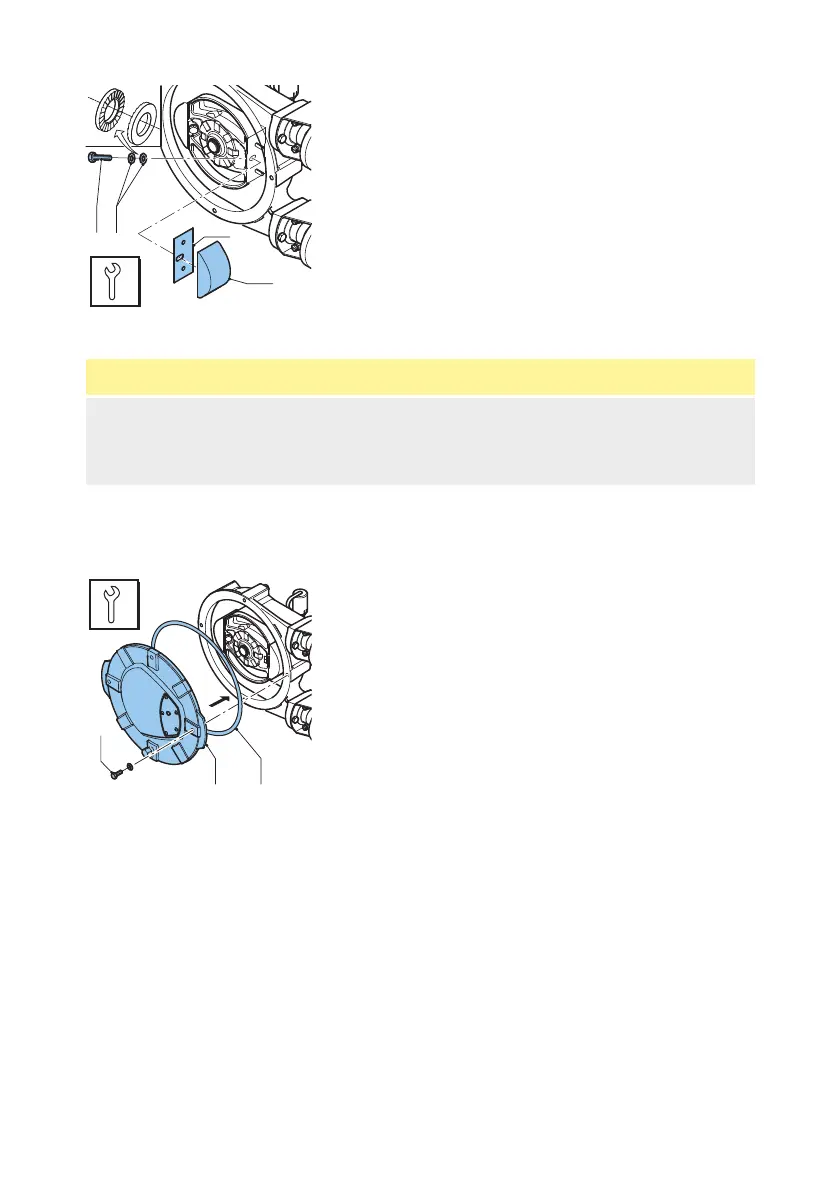

8. Position the (new) pressing shoe (B).
9. Check that the Nord-Lock® rings (D) have been positioned correctly and tighten the retaining
bolt(s) (A) to the specified torque.
10. Check the gasket (C) for damage and replace it if necessary.
11. Refit the cover (B). Make sure that the four bolts (A) are refitted and that they are tightened in
the correct order, diagonally opposite each other.
m-bredel-25-32-en-05 59
