Note: The drain plug is in the cover of the pump.

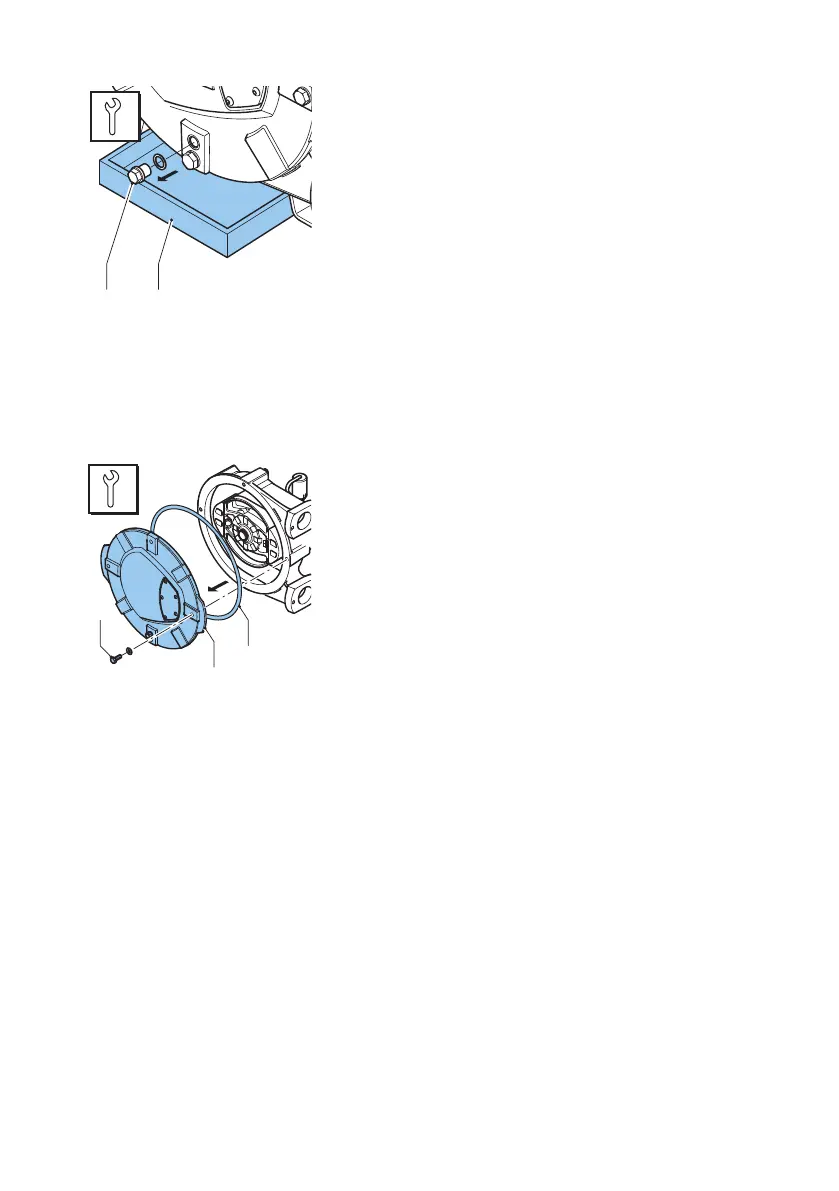

3. Place a tray (A) under the drain plug. The tray must be large enough to contain the lubricant,
possibly contaminated with product fluid, from the pumphead. Remove the drain plug (B).
Collect the lubricant from the pump housing in the tray.
4. Position the drain plug and tighten it to the specified torque.
5. Remove the cover (B) by loosening the retaining bolts (A).
m-bredel-25-32-en-05 67
