4.3.11.3 Selecting Blind Zone Cells
Once the Blind Zone Area has been decided, each Cell can be selected individually to remove
the area from the detection zone. Any object in the selected Blind Cells will now be ignored if
detected.

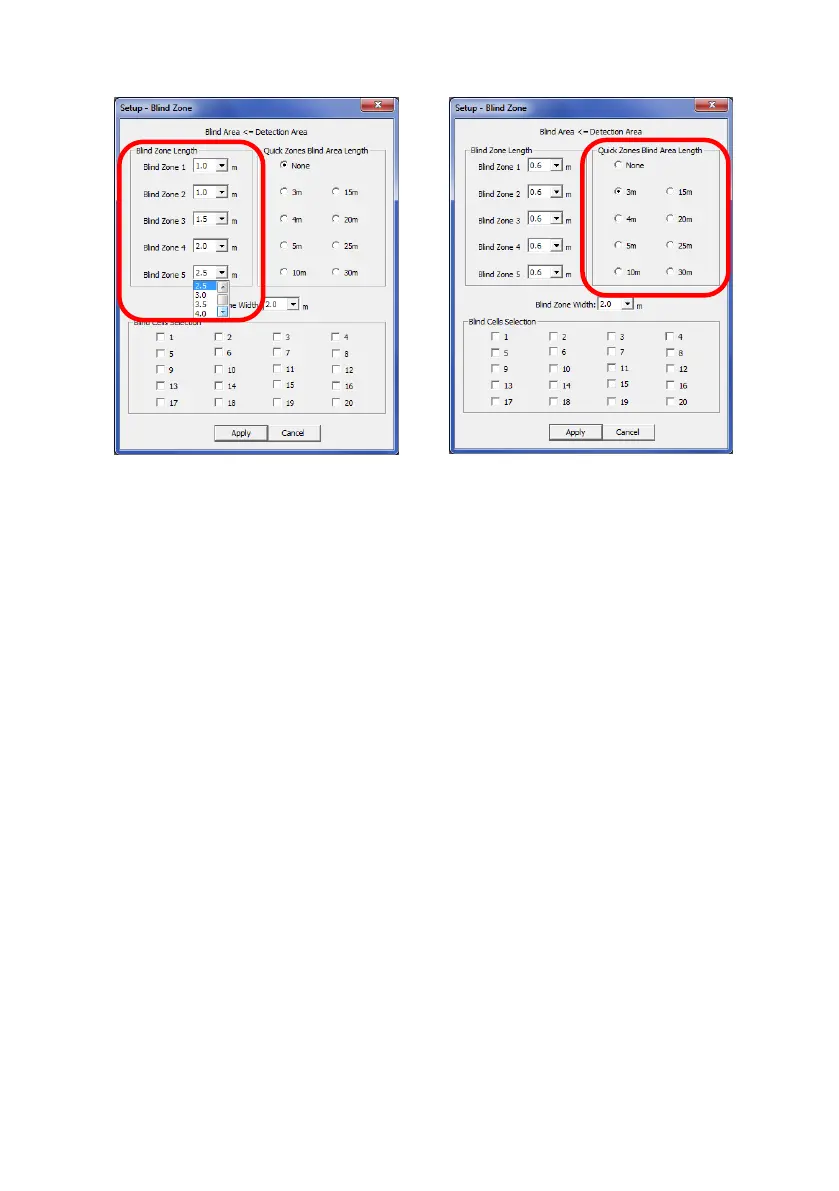

Each Cell is selected in the setup window using the tick boxes shown. The tick boxes directly
correspond to the Cells shown in the Blind Zone view window. Once selected, click “Apply”
and the Cell text will turn red in colour, indicating the area has been selected, see images
below. To remove a selected cell, simply un-tick the corresponding Cell and click “Apply”.
Warning
An object in a Blind Cell can mask an object further away from sensor. Such
masking is typically in line of sight from the sensor location but may affect
surrounding areas.
Ensure each blind zone has been checked thoroughly for correct operation with
the vehicle both stationary and in motion.
