5.3.4 Creating a P3 program

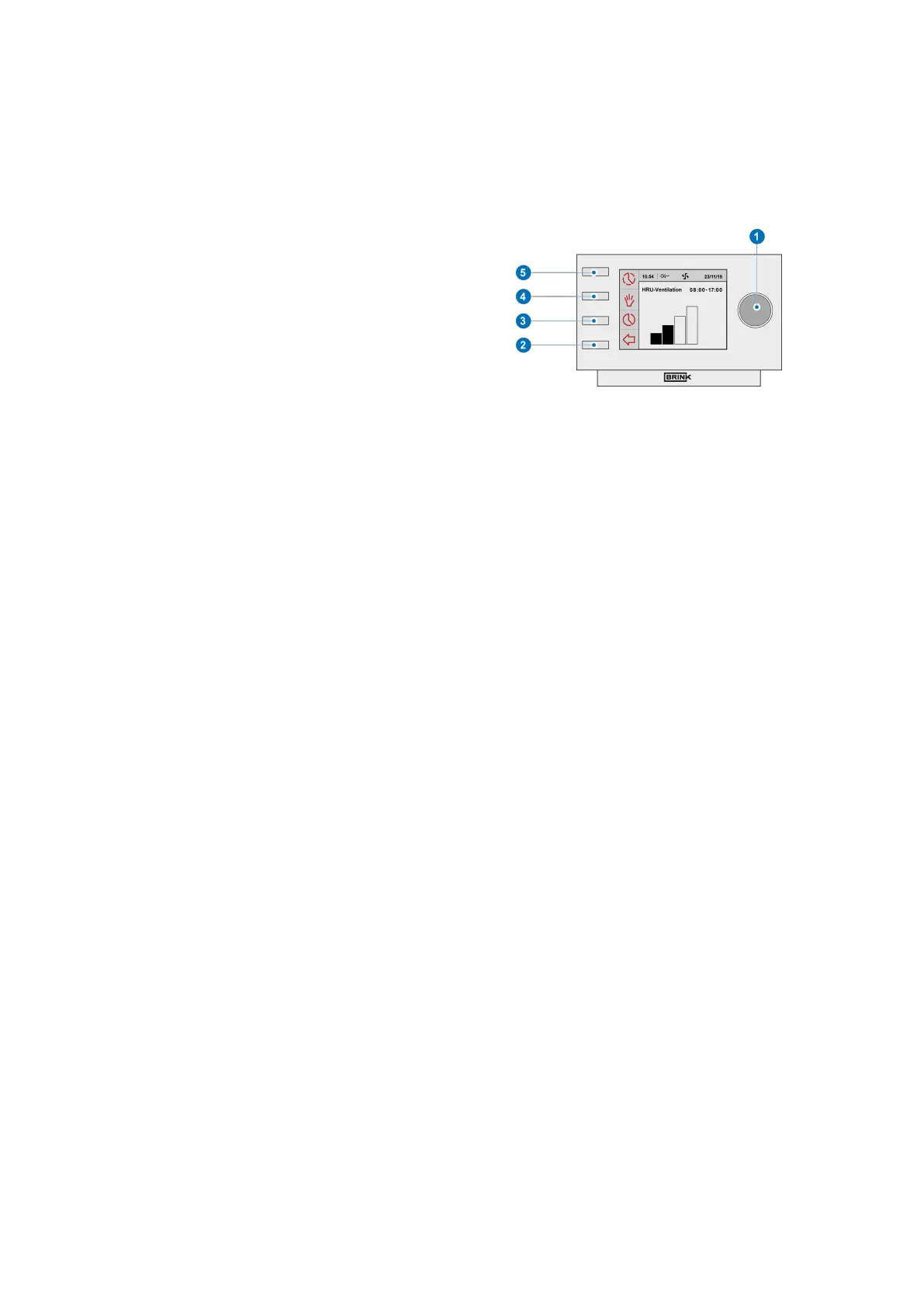

▪ Press return key "2" as many times as necessary
to get to the main screen,
▪ Press setting & activating time program knob "3";
‘Setting & activating timer programme’ opens,
▪ Select ‘P3: day’ by turning setting knob "1",
▪ Press setting knob "1"; ‘P3: day’ opens.
(*) You can choose from the days between ‘Monday’ through ‘Sunday’. You perform the following steps to
set a day program for Monday:
▪ Select ‘Monday’ by turning setting knob "1",
▪ Press setting knob "1"; ‘Monday’ opens,
You have a choice from ‘Period 1’, ‘Period 2’, ‘Period 3’, ‘Period 4’, ‘Period 5’ and ‘Period 6’. Every period is a part
of the day in which you can set a ventilation position.
▪
Select 'Period 1' by turning setting knob "1",
▪ Press setting knob "1"; ‘Period 1’ opens,
▪ Select ‘Start time’ by turning setting knob "1",
▪ Press setting knob "1";‘Start time’ opens,
▪ Change ‘Start time’ by turning setting knob "1" ; You have a range of between 3.00u and 2.59u,
▪ Press setting knob "1" to confirm ‘Start time’.
Now set the ventilation mode for period 1.
Perform the following actions for this:
▪ Select 'Ventilation mode' by turning setting knob "1",
▪ Press setting knob "1"; ‘Ventilatiestand’ opens,
▪ Set the ventilation mode for period 1 by turningsetting knob "1",
▪ Press setting knob "1" to confirm the ventilation mode for period 1.
You have set the ventilation mode for period 1. You can set period 2 through 6 in the same manner. A period ends
when a new one starts.
If you have created a day program for Monday, you can do the same for the other days of the week. Then repeat
the steps from paragraph 5.3.4, but, after (*) choose another day instead of ‘Monday’.
Brink Air Control- Ventilation 614884-B Brink / 19
